Blower Motor Resistor: Testing and Inspection
RESISTOR CHECK

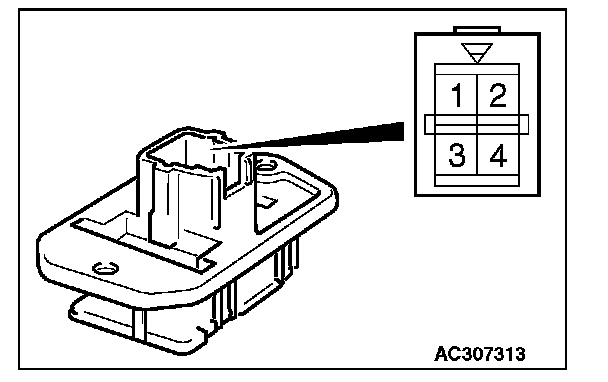

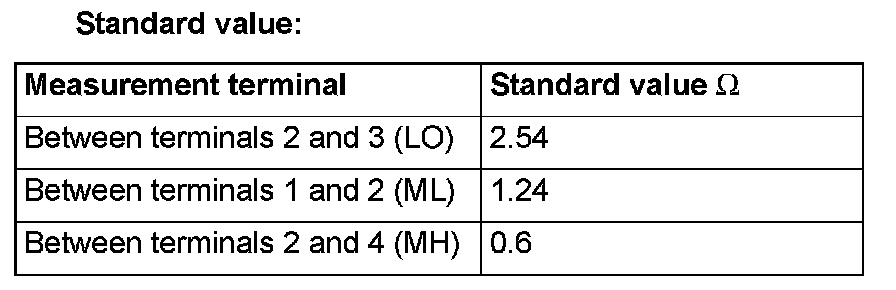

Use an ohmmeter to measure the resistance between the terminals. Check that the measured value is at the standard value.
Use an ohmmeter to measure the resistance between the terminals. Check that the measured value is at the standard value.
