Exhaust Pipe: Service and Repair

EXHAUST PIPE AND MAIN MUFFLER

REMOVAL AND INSTALLATION [2.4L ENGINE]







Required Special Tool:
- MB991953: Oxygen Sensor Wrench

REMOVAL SERVICE POINT

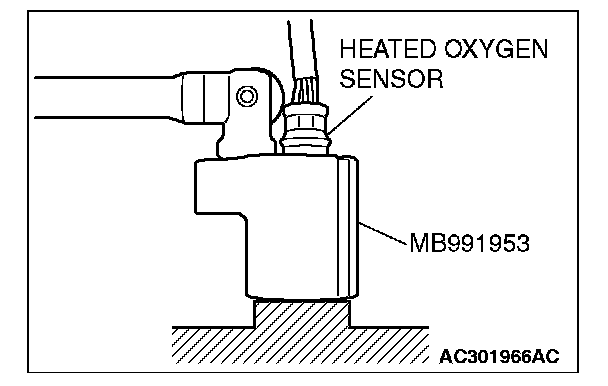

[[A]] HEATED OXYGEN SENSOR REMOVAL







Use special tool MB991953 to remove the heated oxygen sensor.

INSTALLATION SERVICE POINT

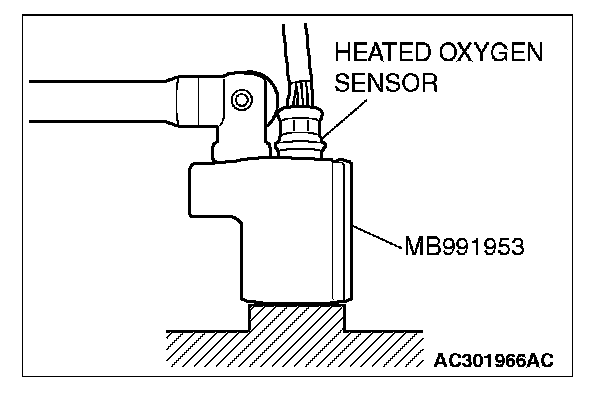

]]A[[ HEATED OXYGEN SENSOR INSTALLATION







Use special tool MB991953 to install the heated oxygen sensor.
