Transaxle (Transmission) Mounting Removal and Installation

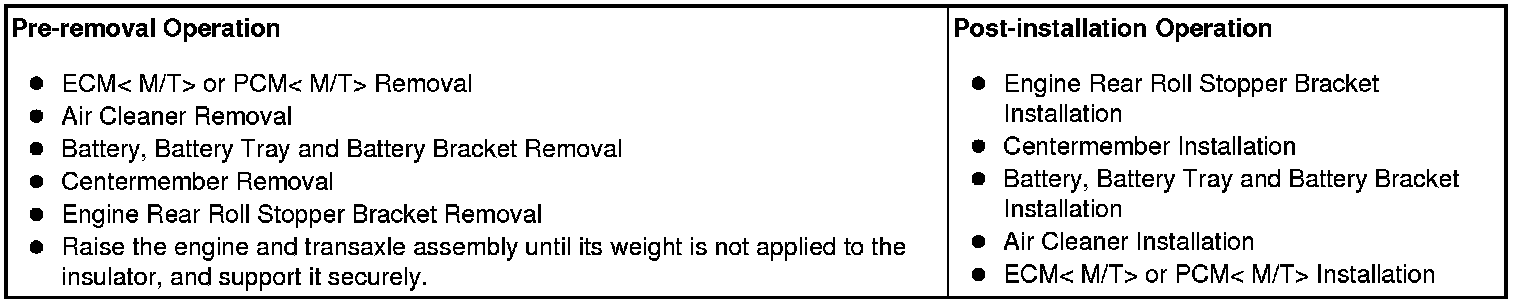

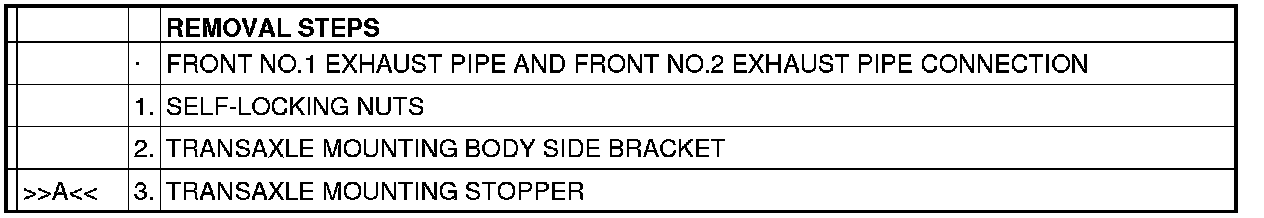

REMOVAL AND INSTALLATION [2.4L ENGINE]

CAUTION:

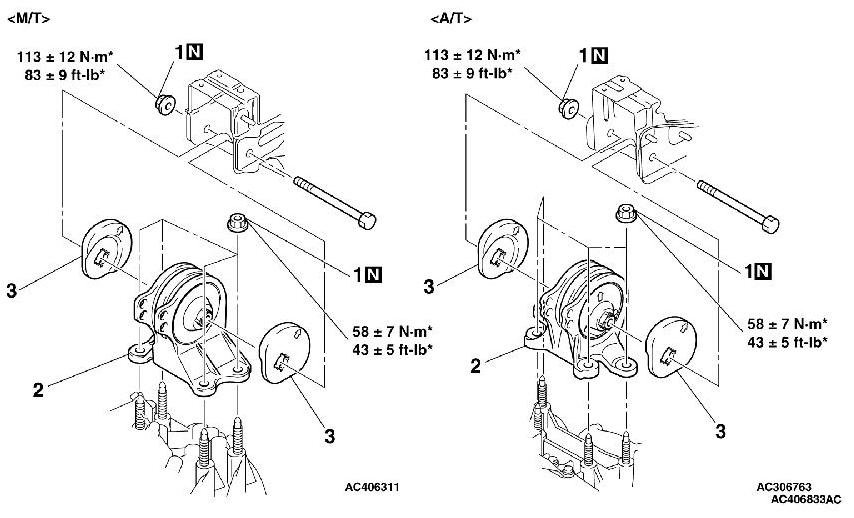

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle horizontally and loading the full weight of the engine on the vehicle body.













INSTALLATION SERVICE POINT

]]A[[ TRANSAXLE MOUNTING STOPPER INSTALLATION





Install the transaxle mounting stopper so that its arrow points upward.
