Radiator: Service and Repair

REMOVAL AND INSTALLATION

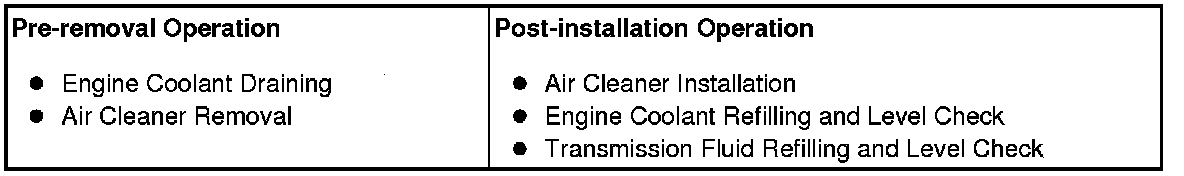

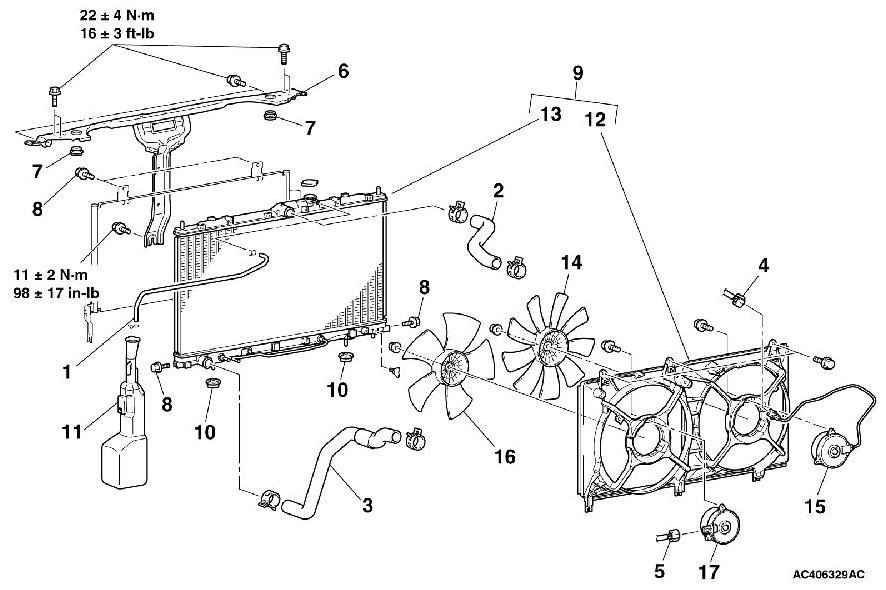

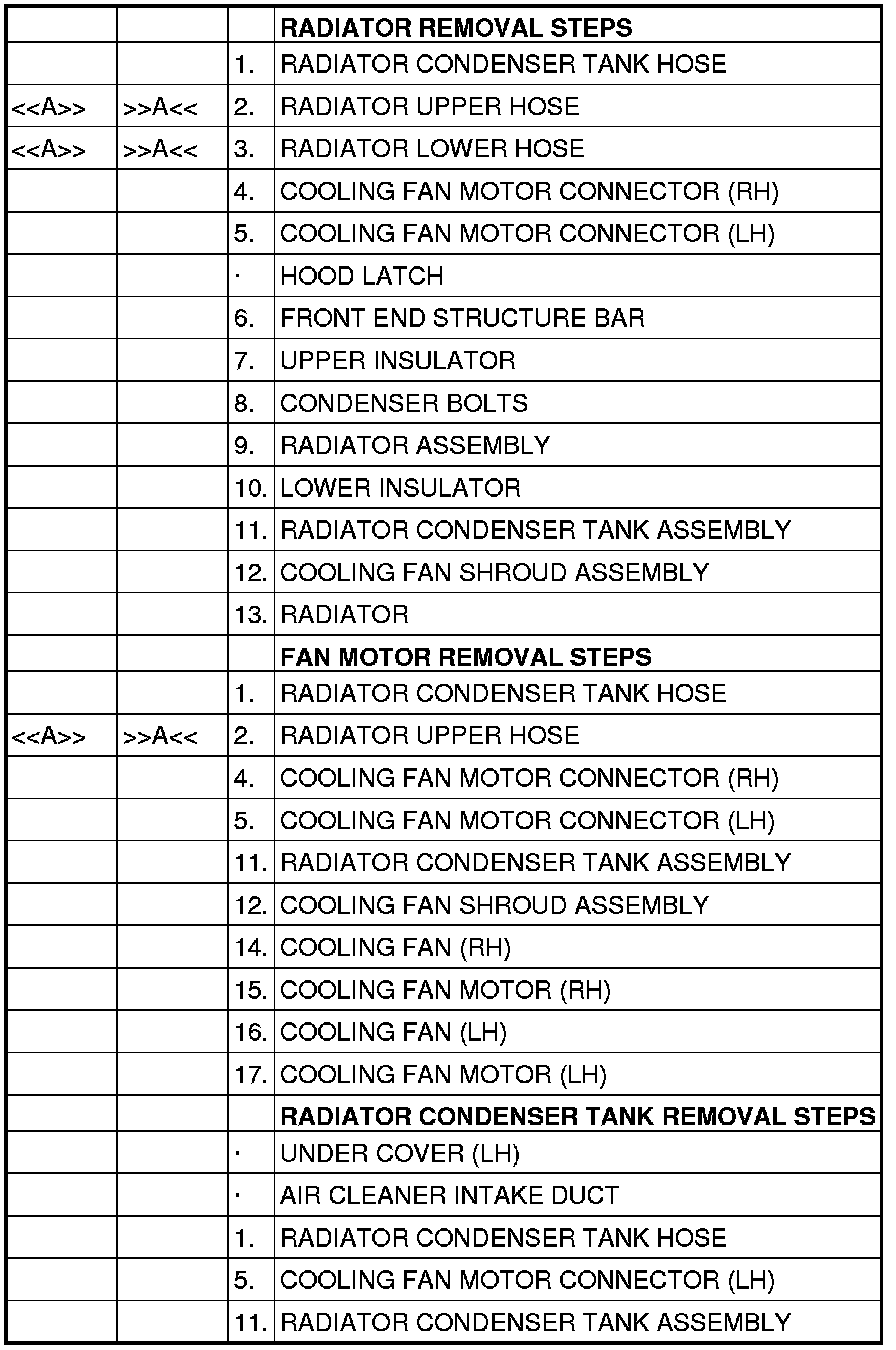

[2.4L ENGINE]

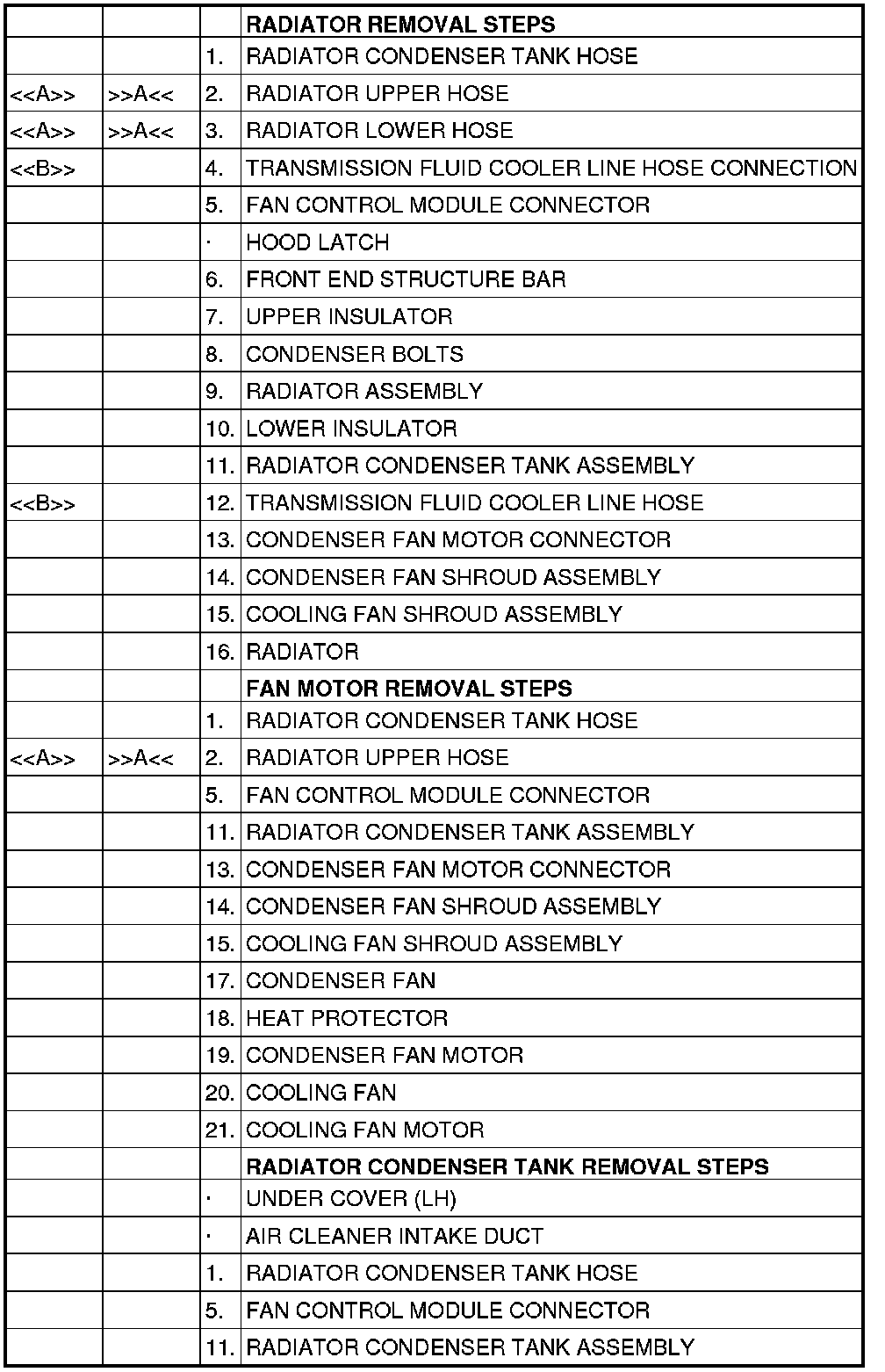

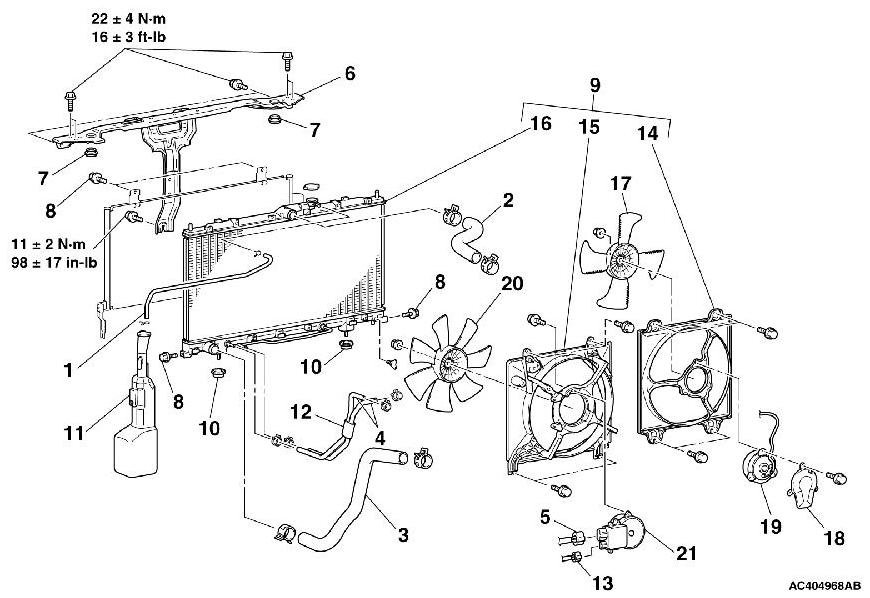

[3.8L ENGINE]














REMOVAL SERVICE POINTS

[[A]] RADIATOR UPPER HOSE/RADIATOR LOWER HOSE DISCONNECTION





Make mating marks on the radiator hose and the hose clamp. Disconnect the radiator hose.

[[B]] TRANSMISSION FLUID COOLER LINE HOSE REMOVAL

After removing the hose from the radiator, plug the hose and the radiator nipple to prevent dust or foreign particles from getting in.

INSTALLATION SERVICE POINT

]]A[[ RADIATOR LOWER HOSE/RADIATOR UPPER HOSE CONNECTION

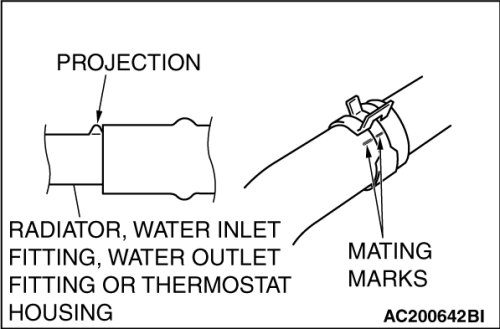

1. Insert each hose as far as the projection of the radiator, water inlet fitting, water outlet fitting or thermostat housing.
2. Align the mating marks on the radiator hose and hose clamp, and then connect the radiator hose.
