Grounding




GROUNDING









NOTE:

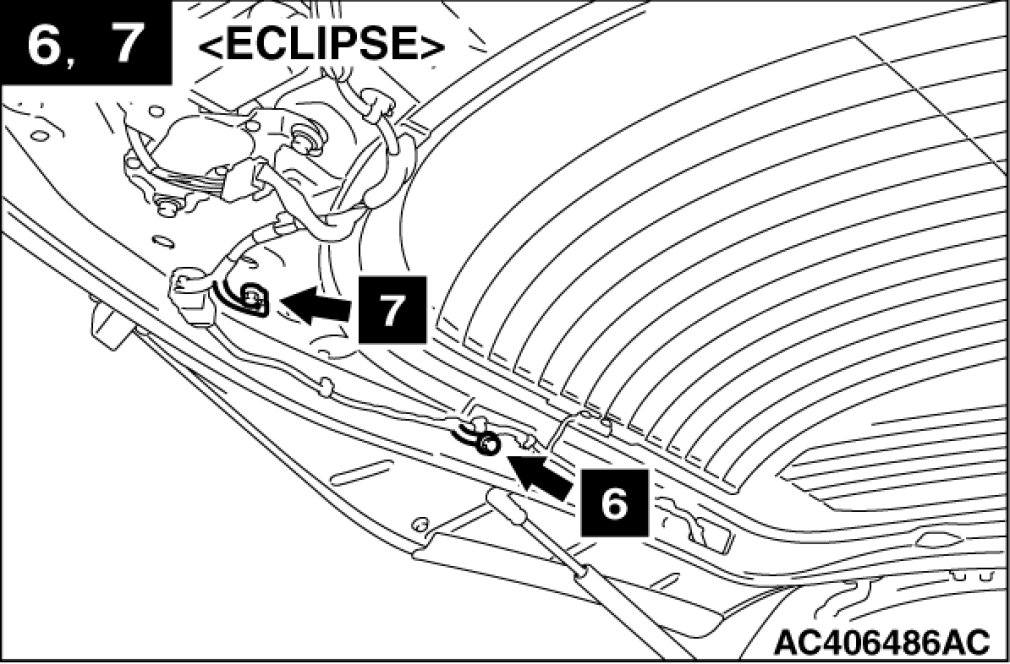

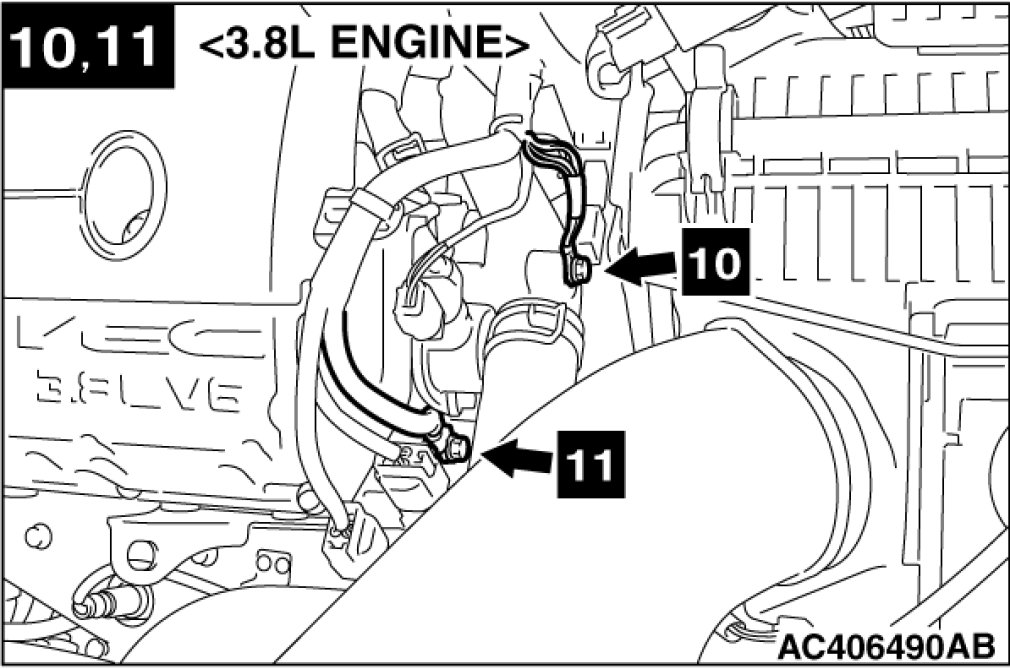

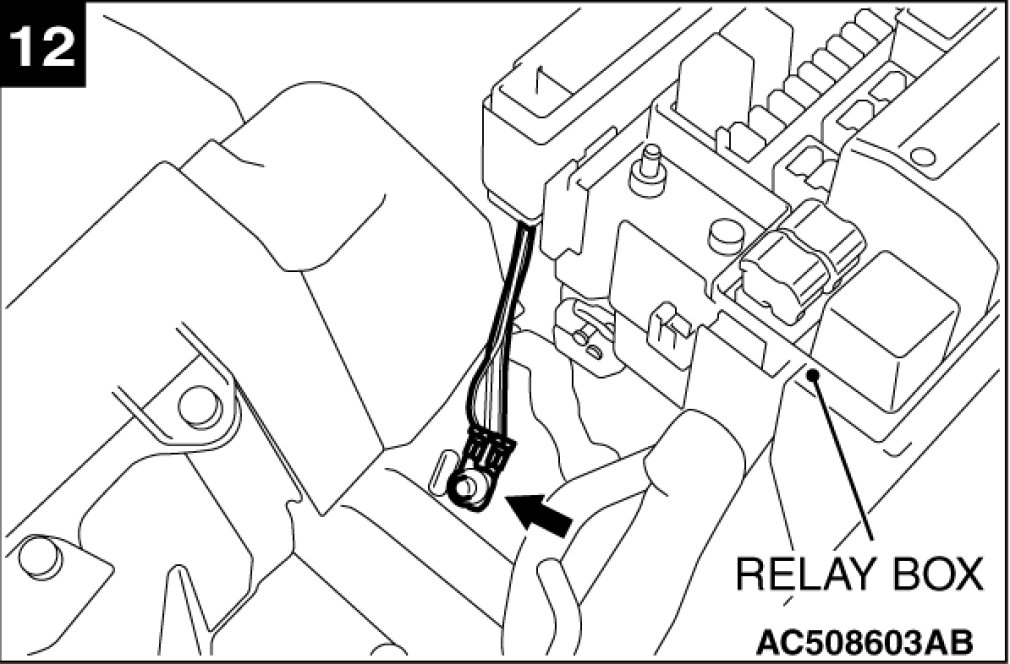

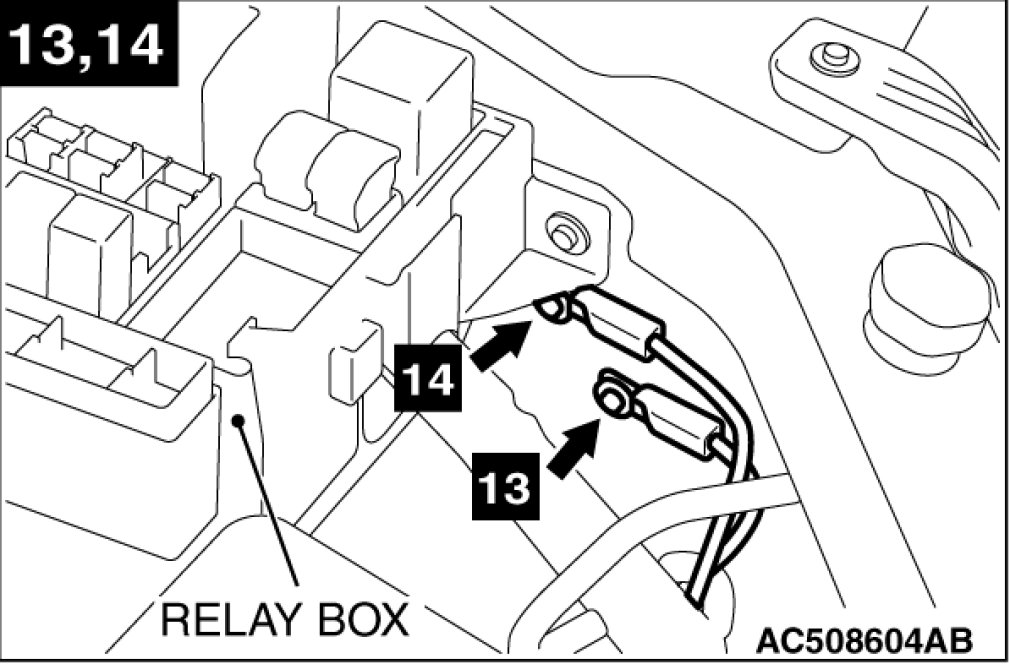

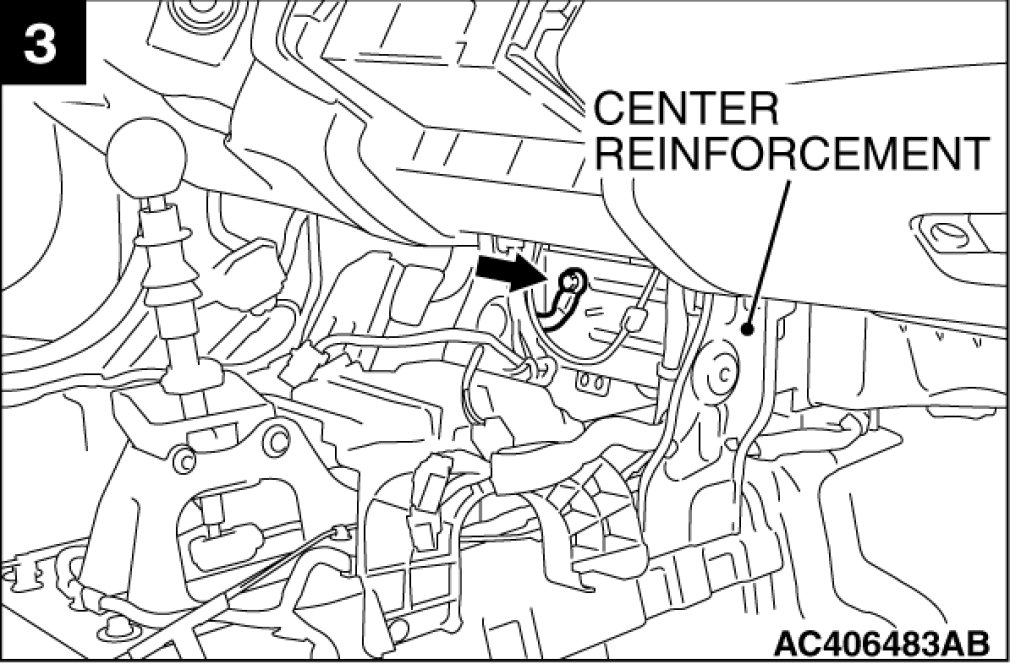

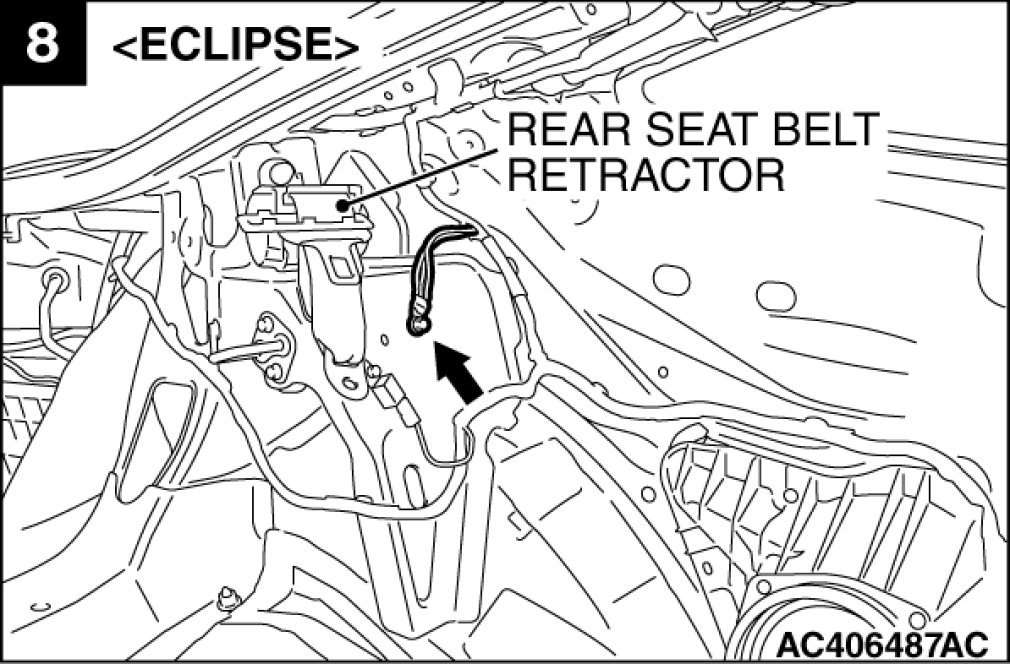

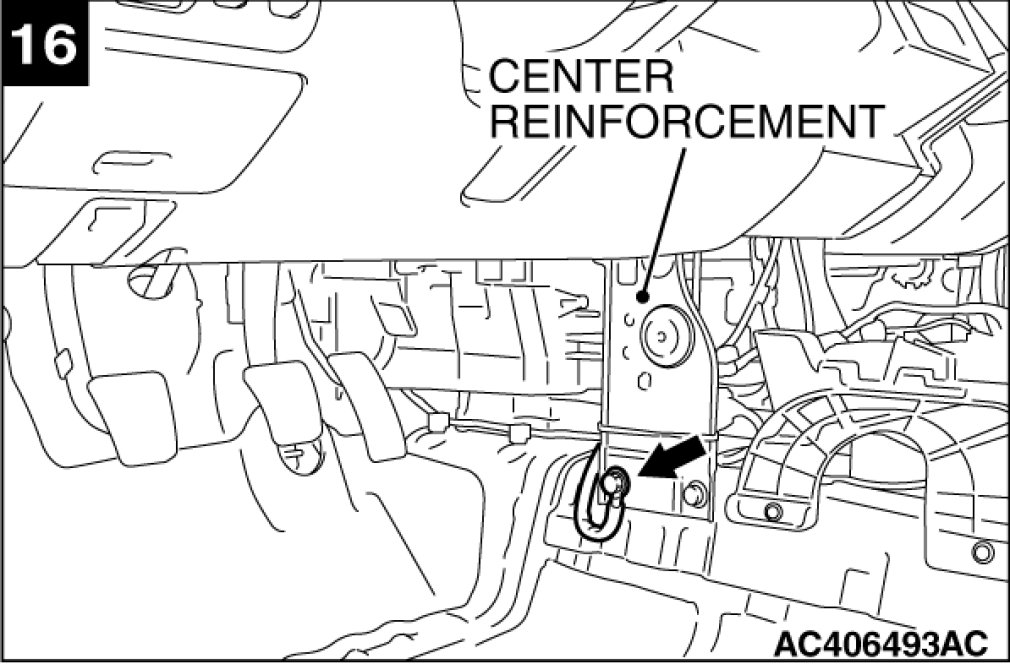

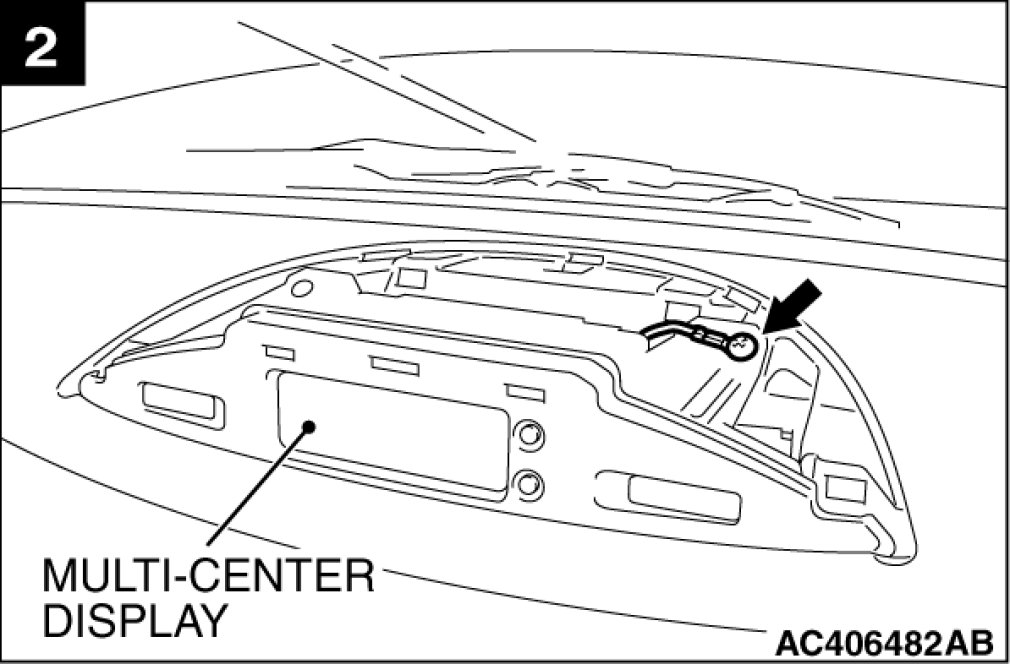

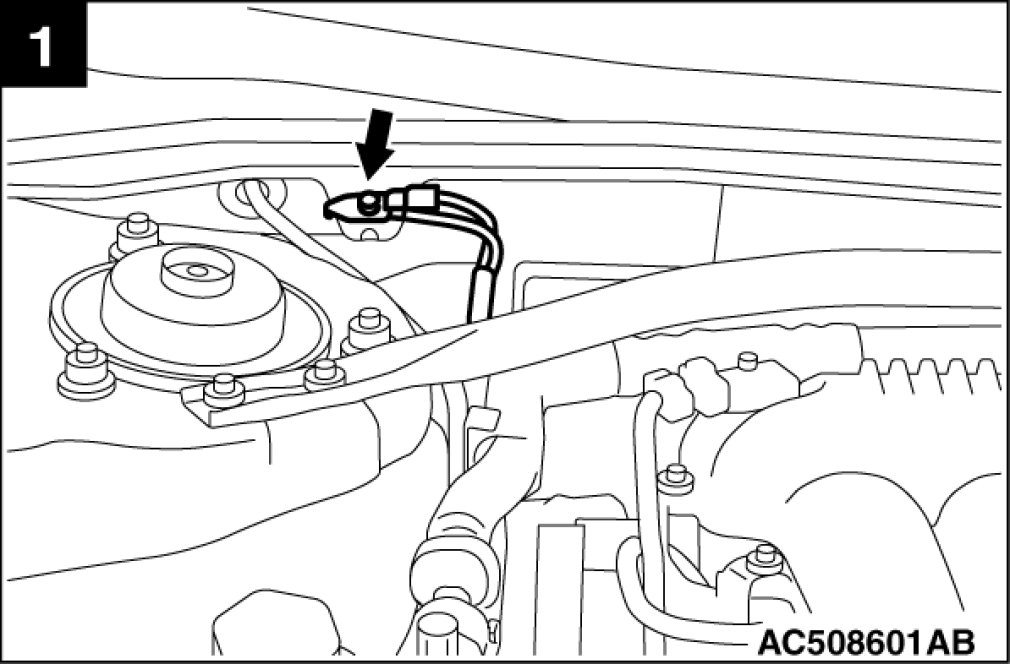

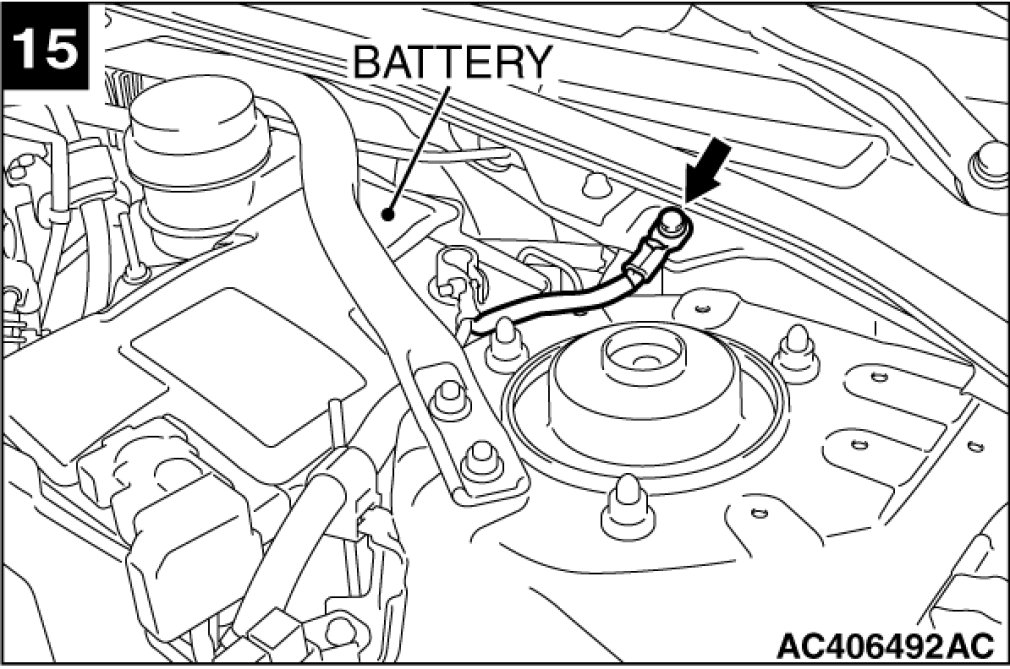

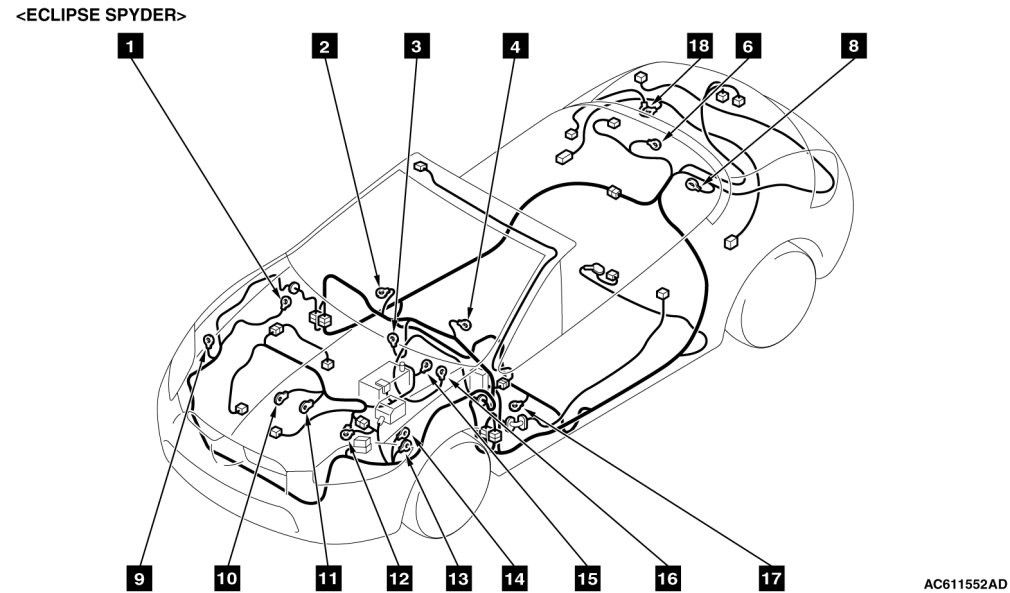

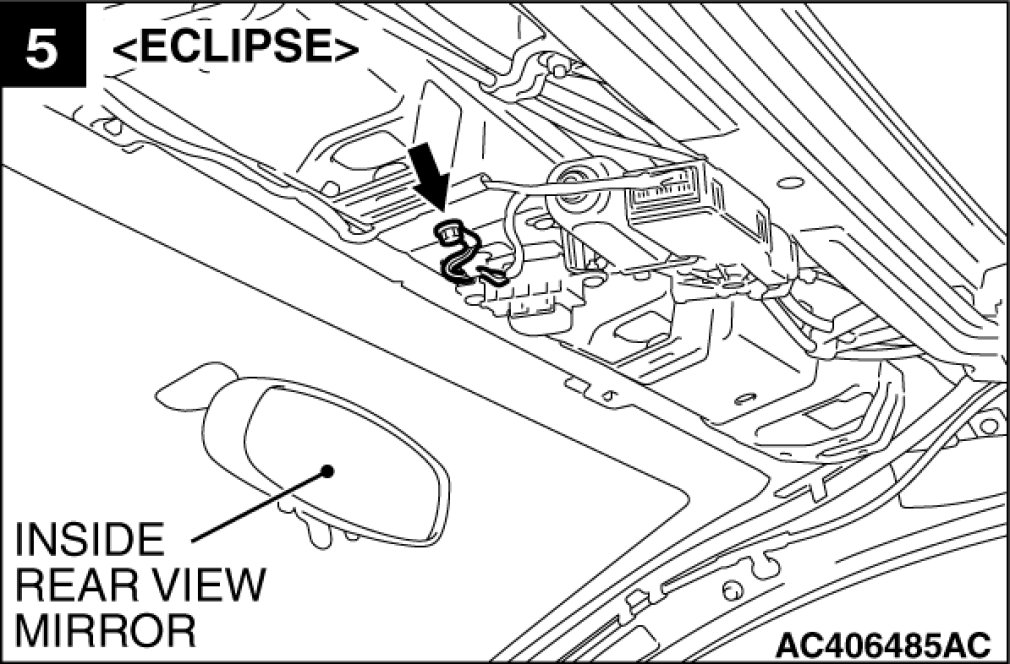

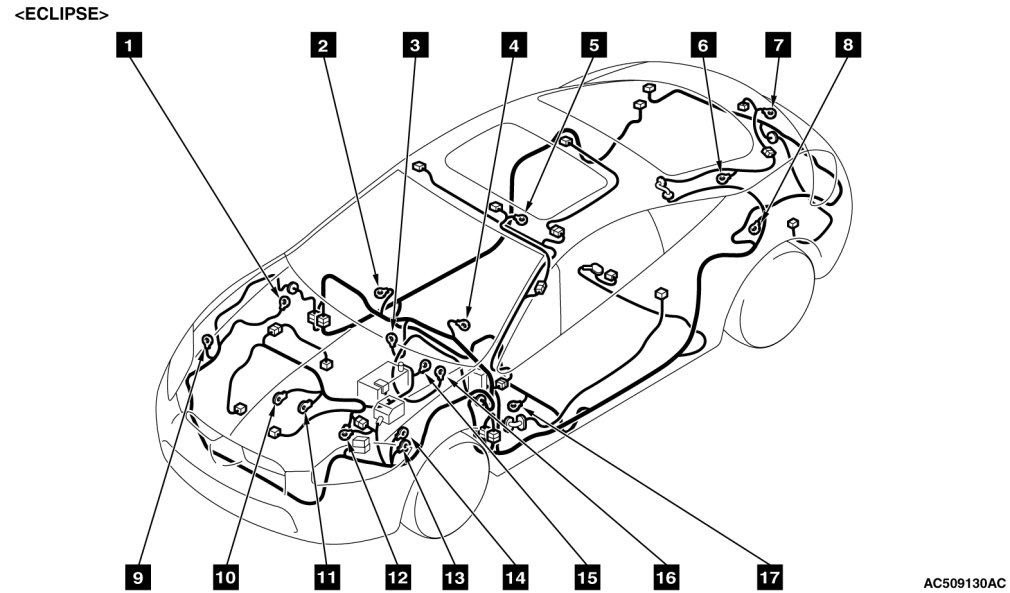

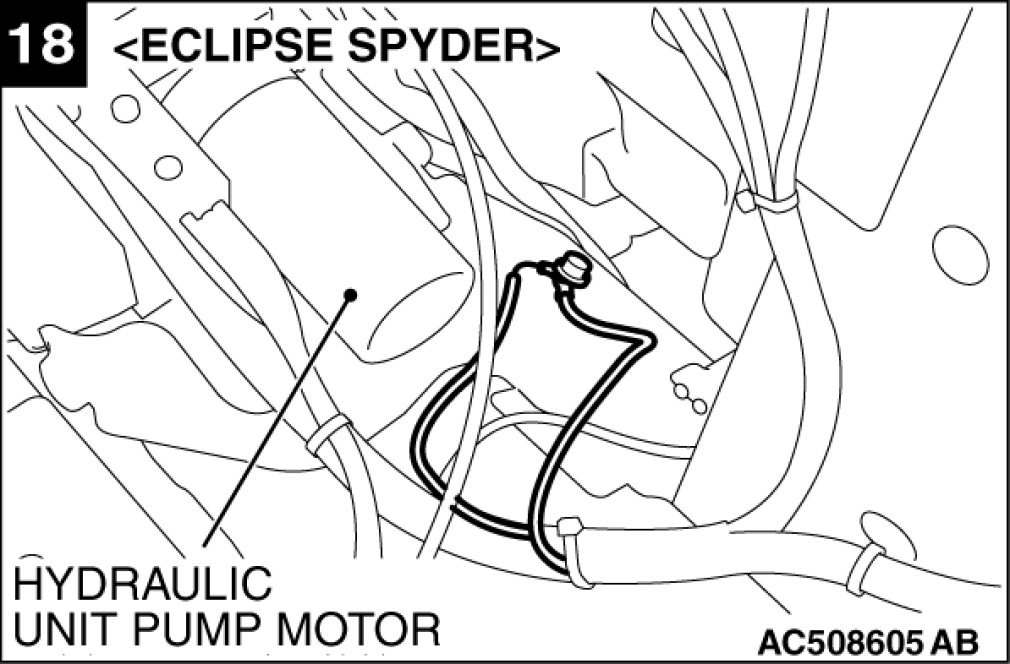

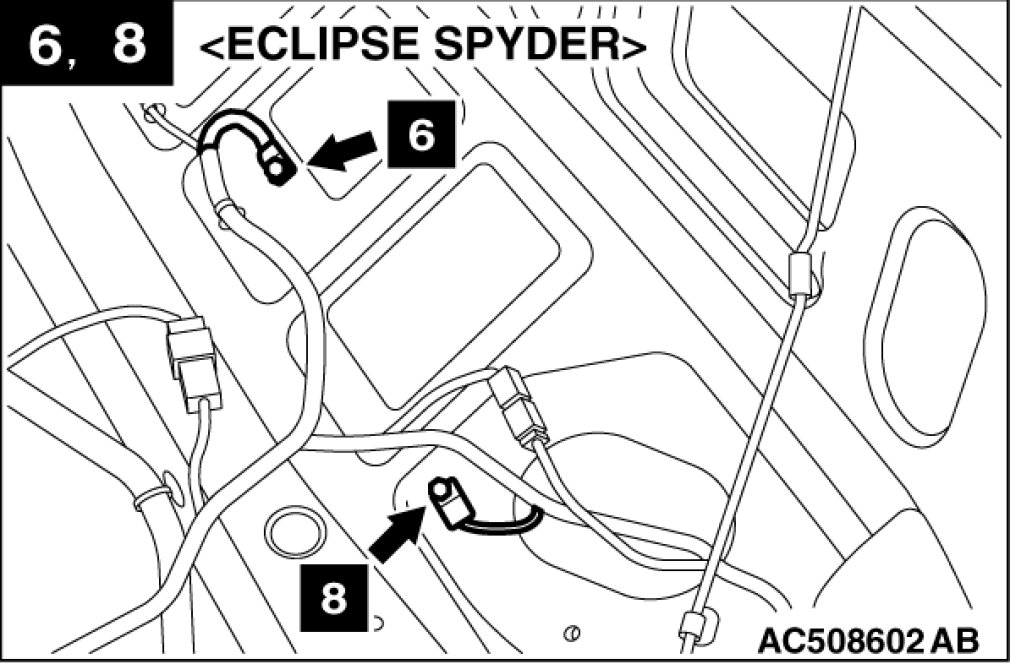

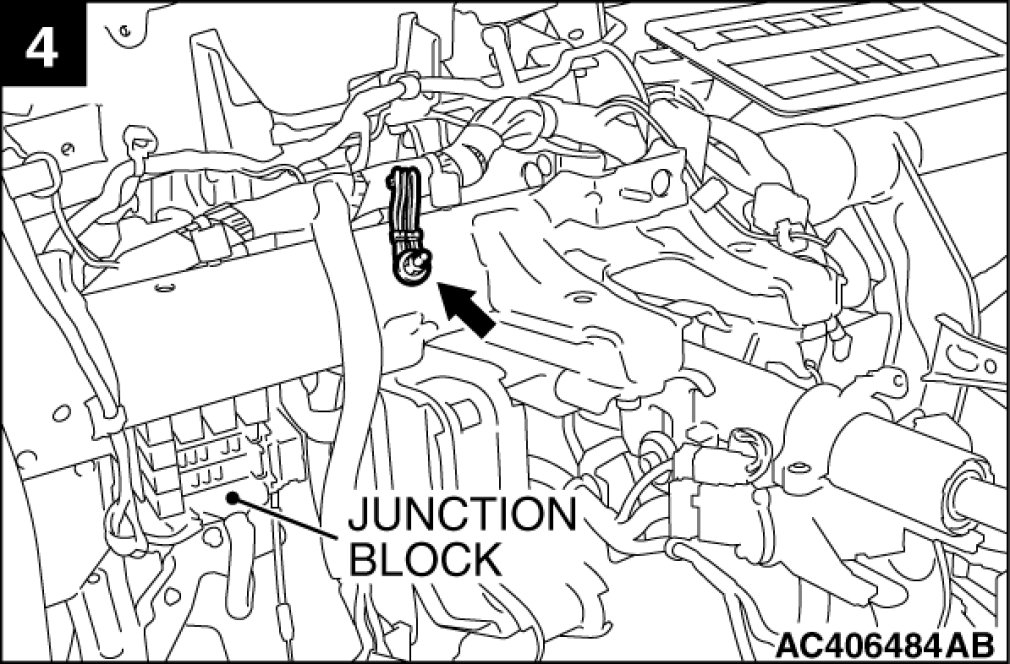

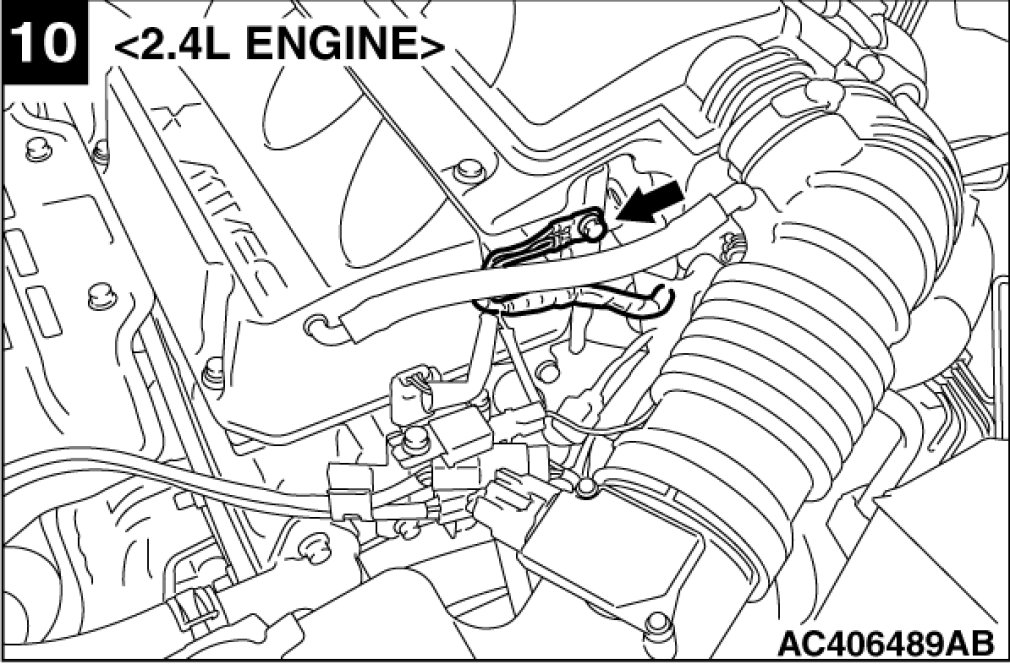

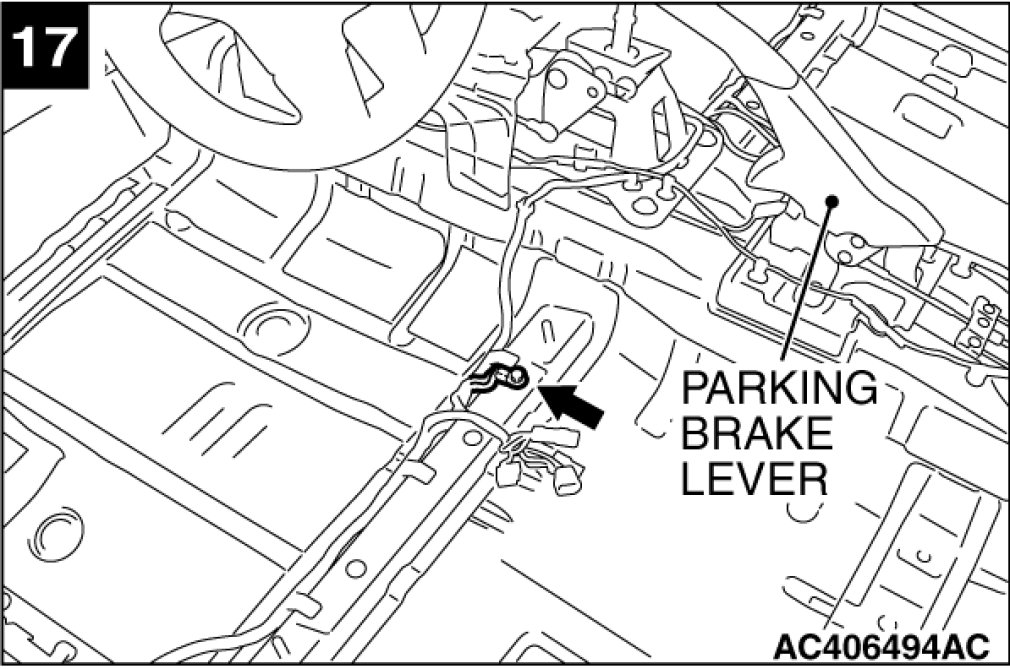

1 to 17 numbers correspond to the body ground point numbers in CIRCUIT DIAGRAMS.
