Home >> Mitsubishi >> 2011 >> Eclipse Spyder L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Information Bus >> M/T

M/T

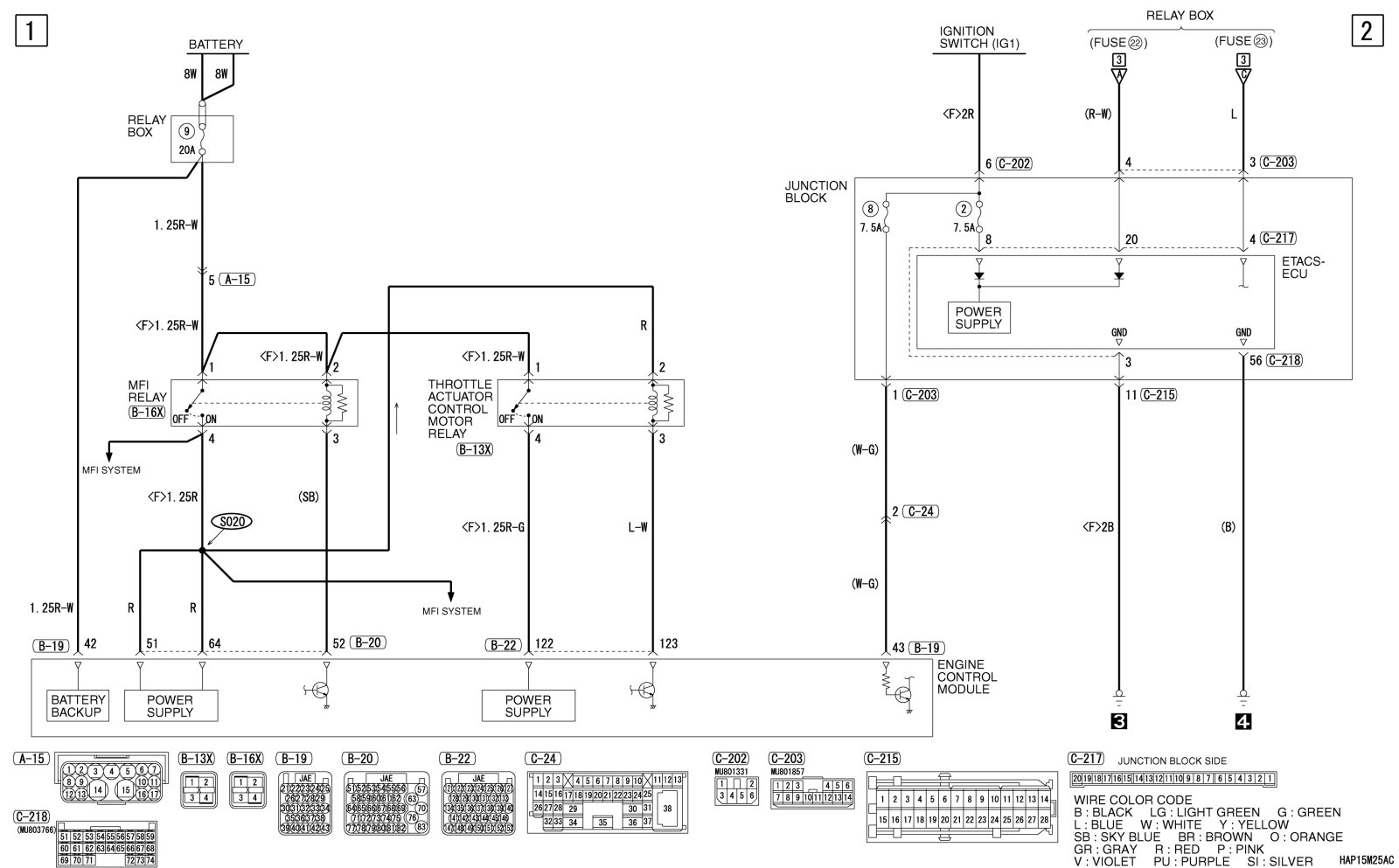

CONTROLLER AREA NETWORK (CAN) [2.4L ENGINE-M/T]
