FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2011
>>
Eclipse Spyder L4-2.4L (4G69)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Audible Warning Device
>>
Door Ajar Warning Tone Alarm [A/T]
Door Ajar Warning Tone Alarm [A/T]

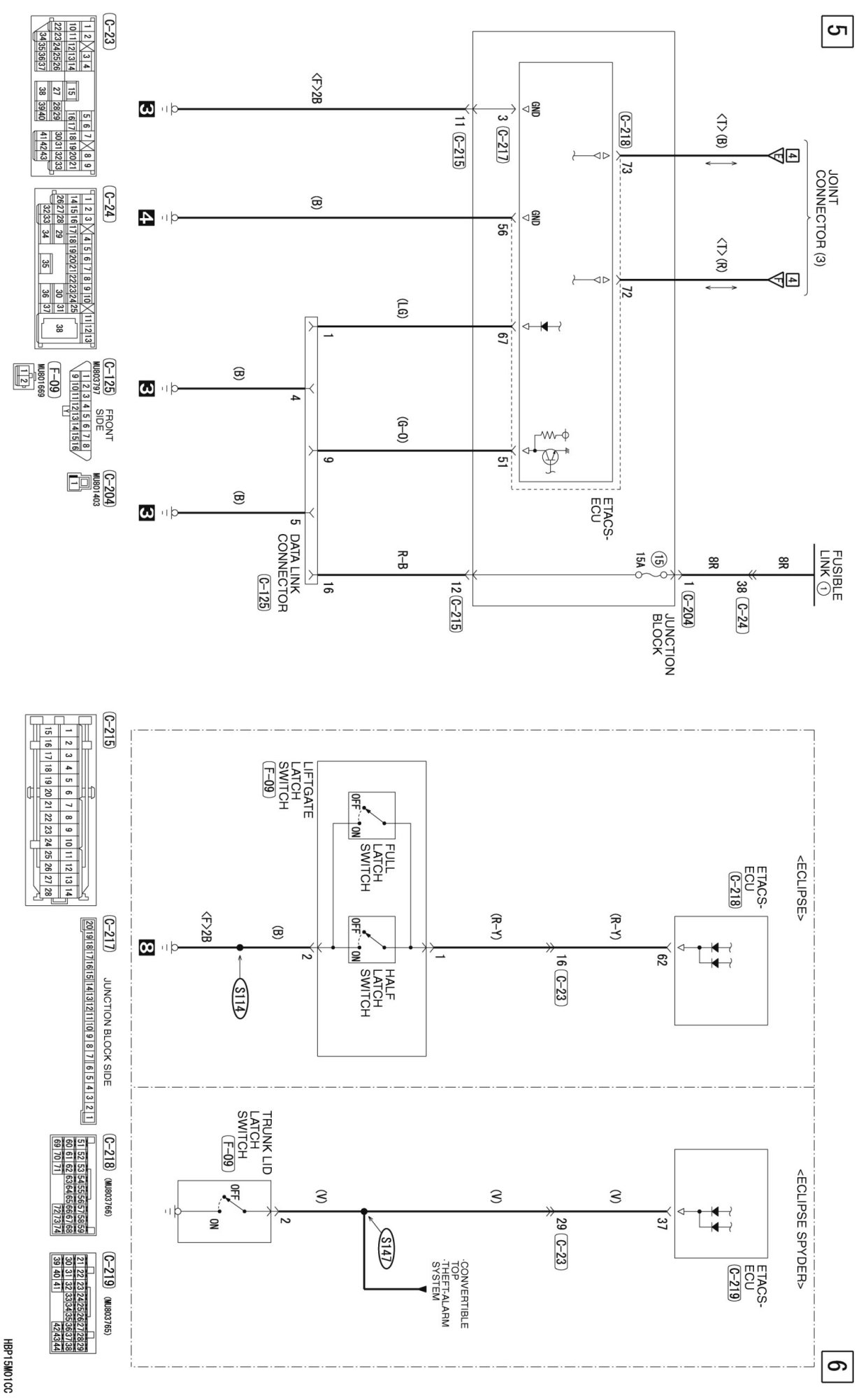

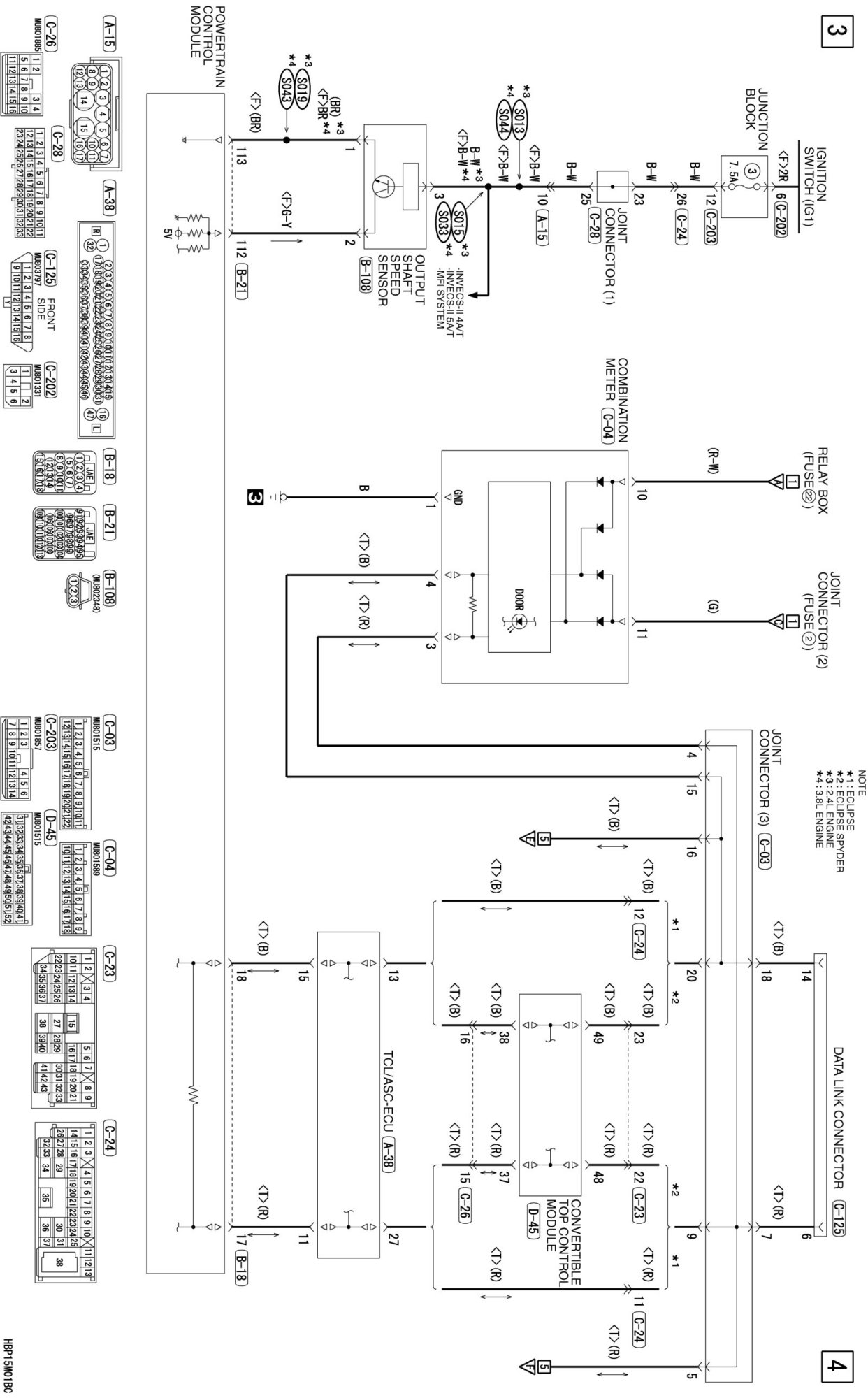

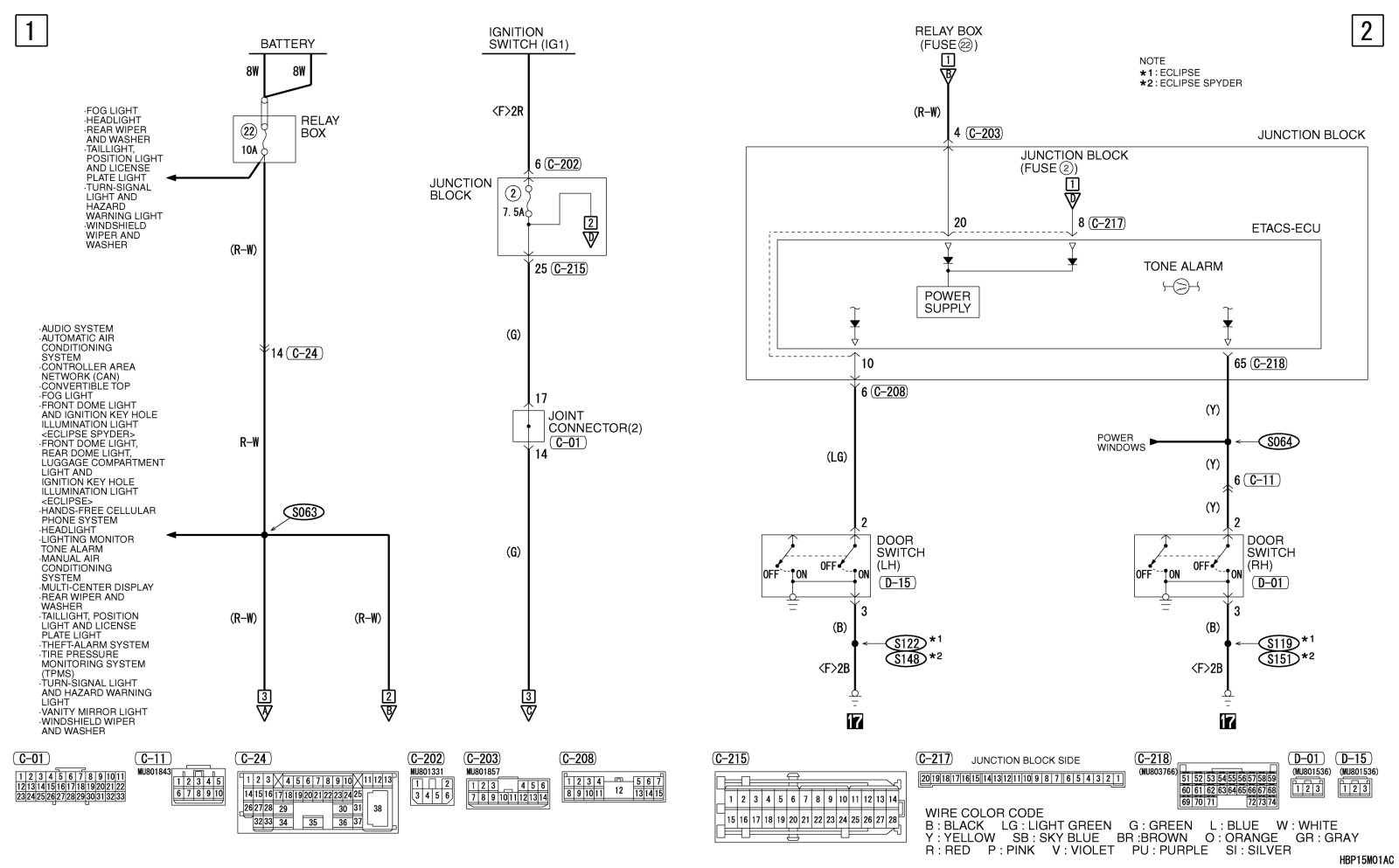

DOOR AJAR WARNING TONE ALARM [A/T]
