Hazard Warning Lamps
>>
Vehicles With Discharge Type Headlight
Vehicles With Discharge Type Headlight

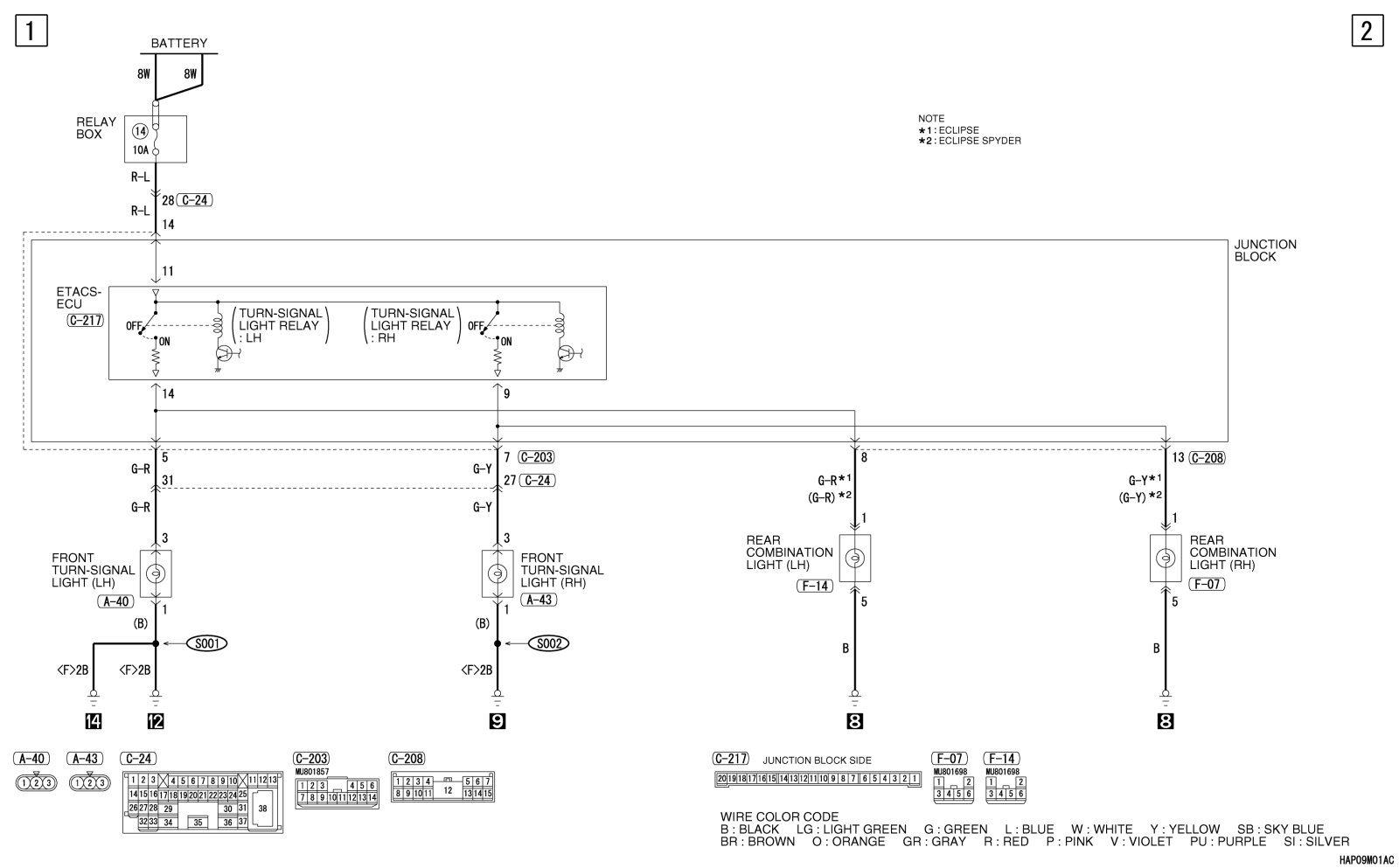

TURN-SIGNAL LIGHT AND HAZARD WARNING LIGHT [VEHICLES WITH DISCHARGE TYPE HEADLIGHT]
