Home >> Mitsubishi >> 2011 >> Eclipse Spyder L4-2.4L (4G69) >> Repair and Diagnosis >> Cruise Control >> Brake Switch (Cruise Control) >> Testing and Inspection

Brake Switch (Cruise Control): Testing and Inspection

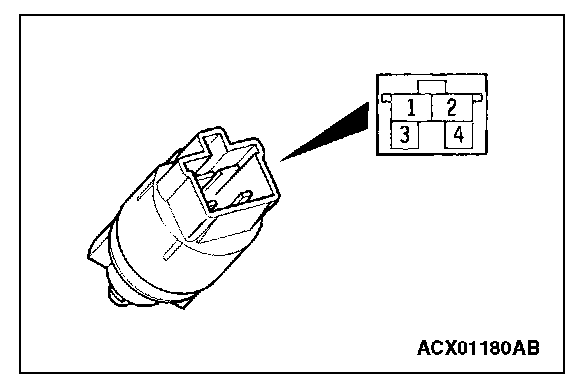

STOPLIGHT SWITCH

1. Disconnect the connector.

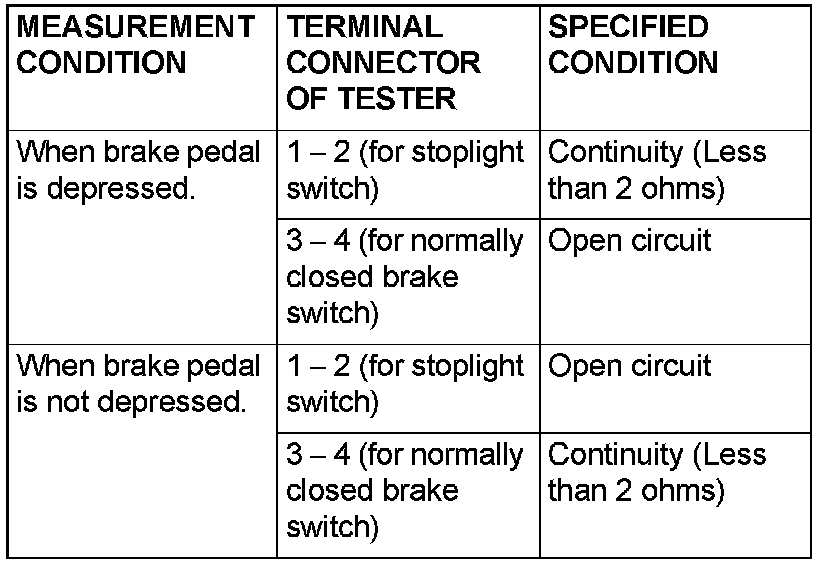

2. Check for continuity between the terminals of the switch.
