Parking Brake Cable: Service and Repair

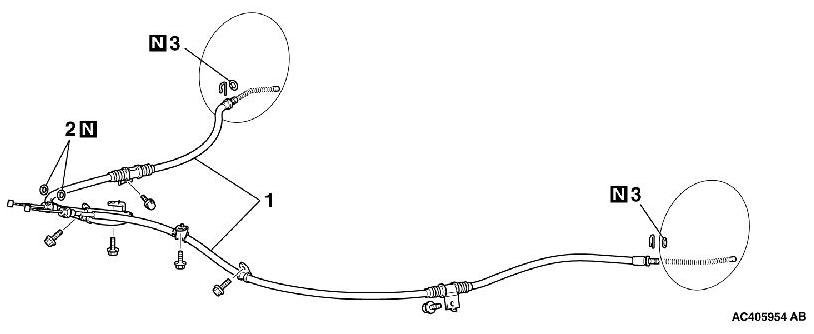

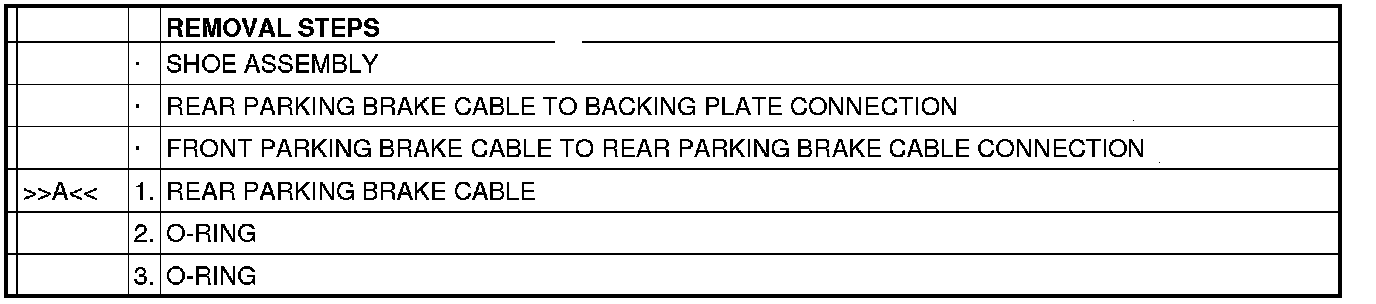

REMOVAL AND INSTALLATION













INSTALLATION SERVICE POINT

]]A[[ REAR PARKING BRAKE CABLE INSTALLATION

CAUTION:
Check that the equalizer and the rear parking brake cable are connected correctly. If the parking brake is applied with the equalizer and the rear parking brake cable connected improperly, the equalizer may be damaged.





Connect the rear parking brake cable to the equalizer as shown in the figure.
