Disassembly and Assembly

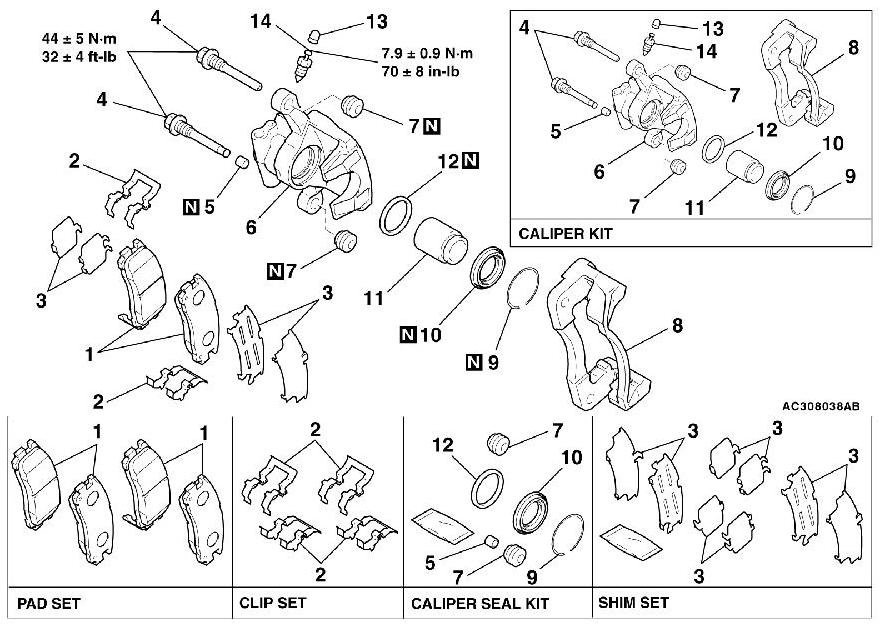

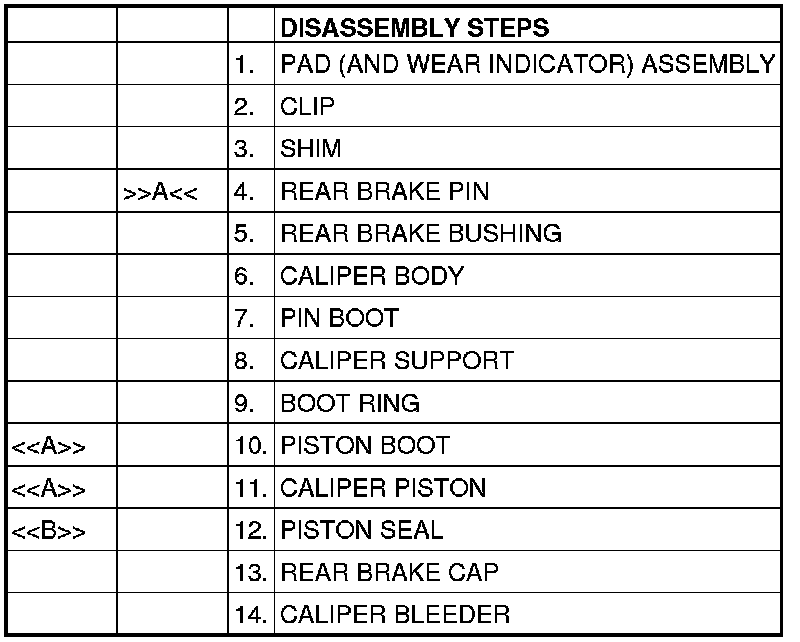

DISASSEMBLY AND ASSEMBLY [REAR]

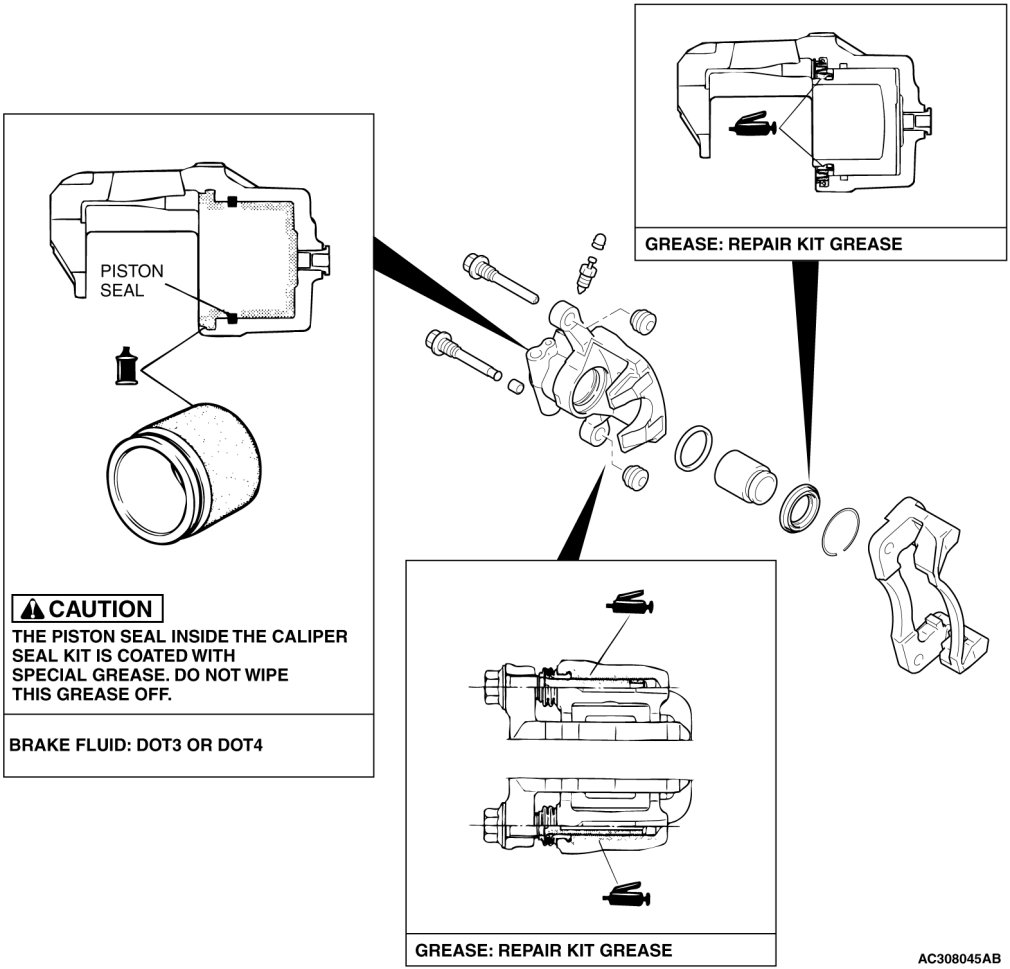

LUBRICATION POINTS





DISASSEMBLY SERVICE POINTS

CAUTION:
When disassembling the disc brakes, disassemble both sides
(left and right) as a set.

[[A]]
PISTON BOOT/CALIPER PISTON REMOVAL

CAUTION:
Blow air little by little to remove the piston. The piston will pop out if a force of air is applied suddenly.





Place a piece of wood, etc. against the caliper body as shown. Blow compressed air through the brake hose connection hole to remove the piston boot and piston.

[[B]]
PISTON SEAL REMOVAL





1.
CAUTION:
Do not use a flat-tipped screwdriver or similar tool to remove piston seal. These may damage the inner side of the cylinder.

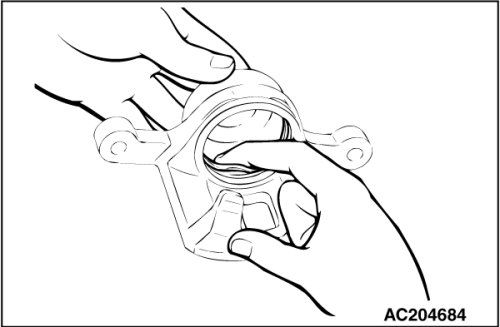

Remove the piston seal with your finger tip.
2. Clean piston surface and inner cylinder with alcohol or brake fluid DOT 3 or DOT 4.

ASSEMBLY SERVICE POINT

]]A[[
REAR BRAKE PIN INSTALLATION

Attach a guide pin (with "g" on the bolt head) at the bleeder nipple side of the caliper body and a lock pin (with "l" on the bolt head) at the opposite side.
