Spoiler: Service and Repair

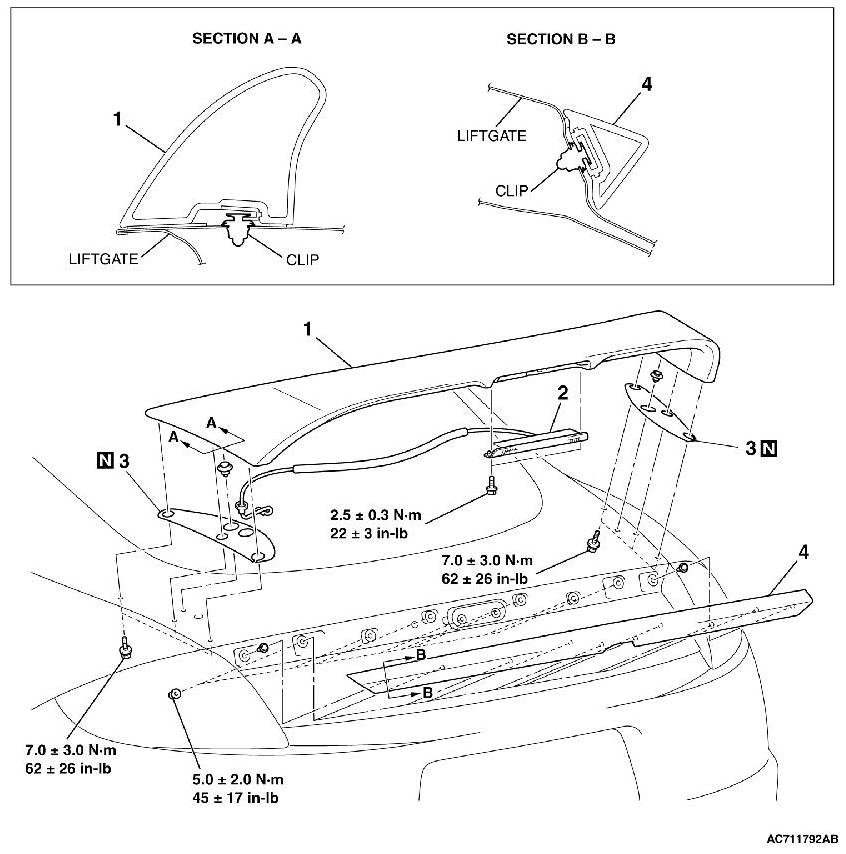

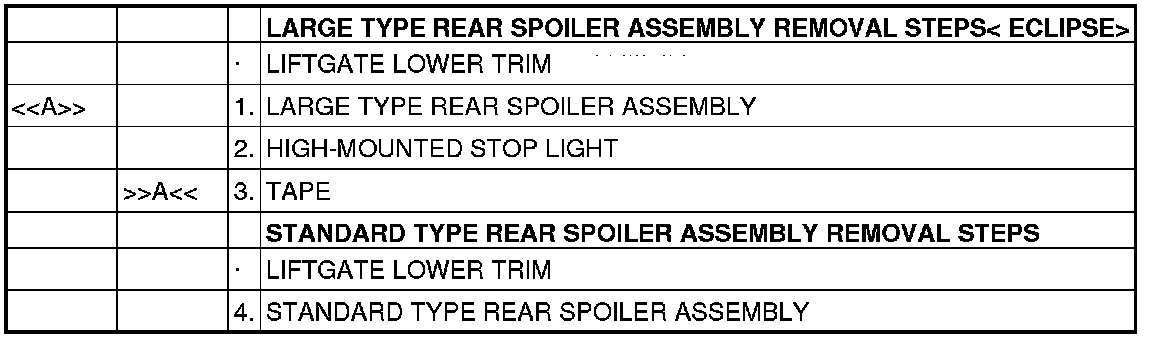

REMOVAL AND INSTALLATION









REMOVAL SERVICE POINT

[[A]] LARGE TYPE REAR SPOILER ASSEMBLY REMOVAL

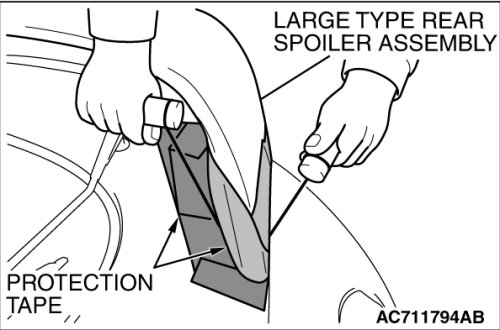

1. To protect the body (paint surface), apply cloth tape to all body areas around the installed large type rear spoiler assembly.





2. Cut the adhesion area between the large type rear spoiler assembly and the liftgate.

CAUTION:

- Do not let the piano wire touch the liftgate.
- Be careful not to damage the wiring harness of the high-mounted stoplight on the left side of the installation part and the clips on the both sides of the installation part.

3. Remove the clips on the both sides of the large type rear spoiler assembly, and then remove the large type rear spoiler assembly.

INSTALLATION SERVICE POINT

]]A[[ TAPE INSTALLATION

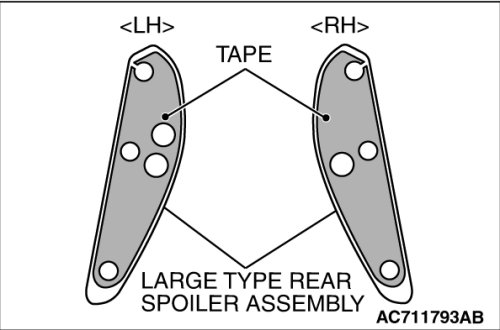

1. Installation position
2.
CAUTION:

- The ambient temperature should be 15 (59) to 40°C(104°F). Ensure that the working area is clean.
- If ambient temperature is less than 15°C (59°F), heat the tape and application surface to a temperature of 15 (59) to 40°C (104°F).
- Be careful that air bubbles are not formed under the tape.

Installation procedure
(1) Wipe the tape application surface and clean it with a rag moistened with isopropyl alcohol.
(2) Remove backing paper from the tape, and apply it to the large type rear spoiler assembly.
