Data Reference Table

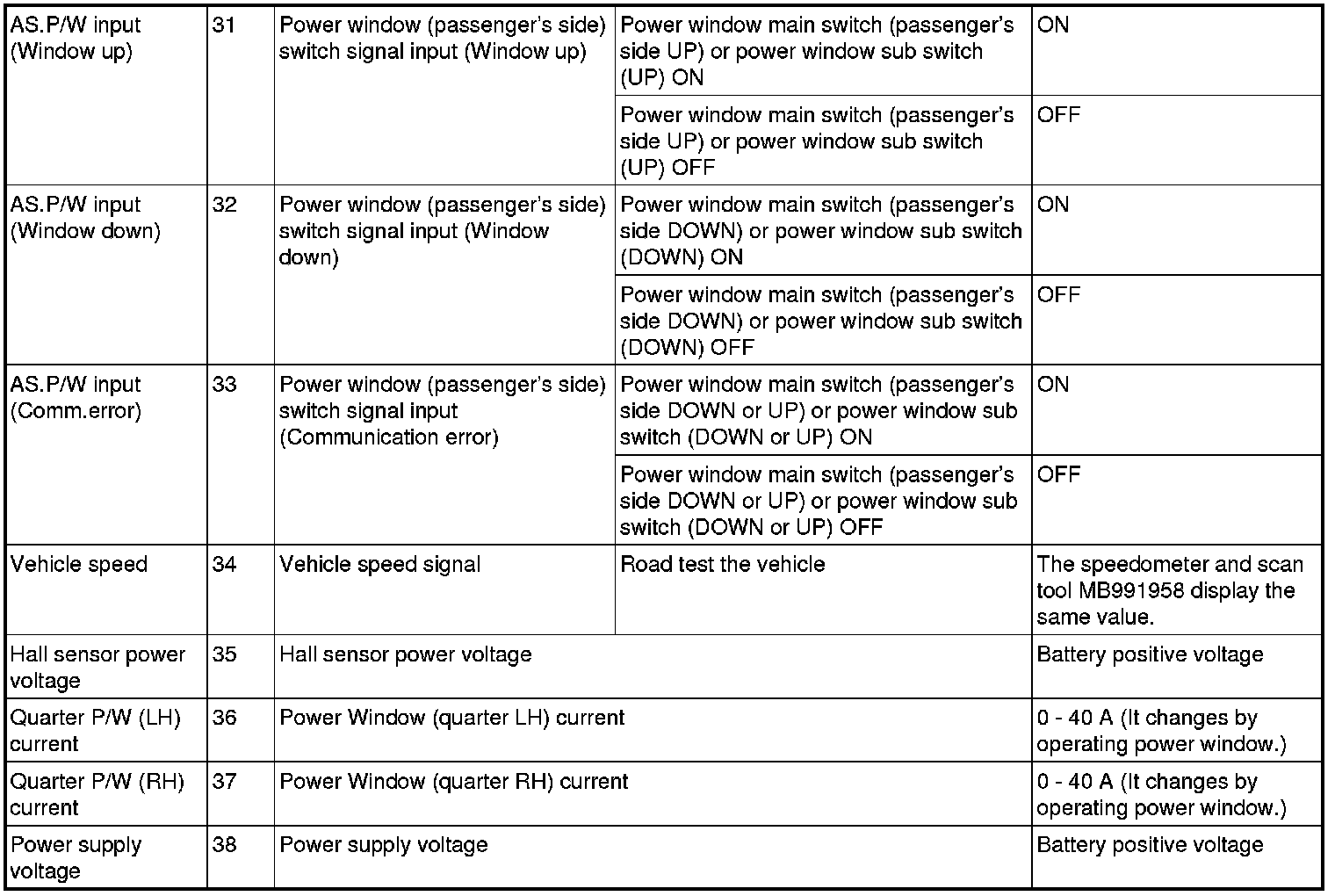

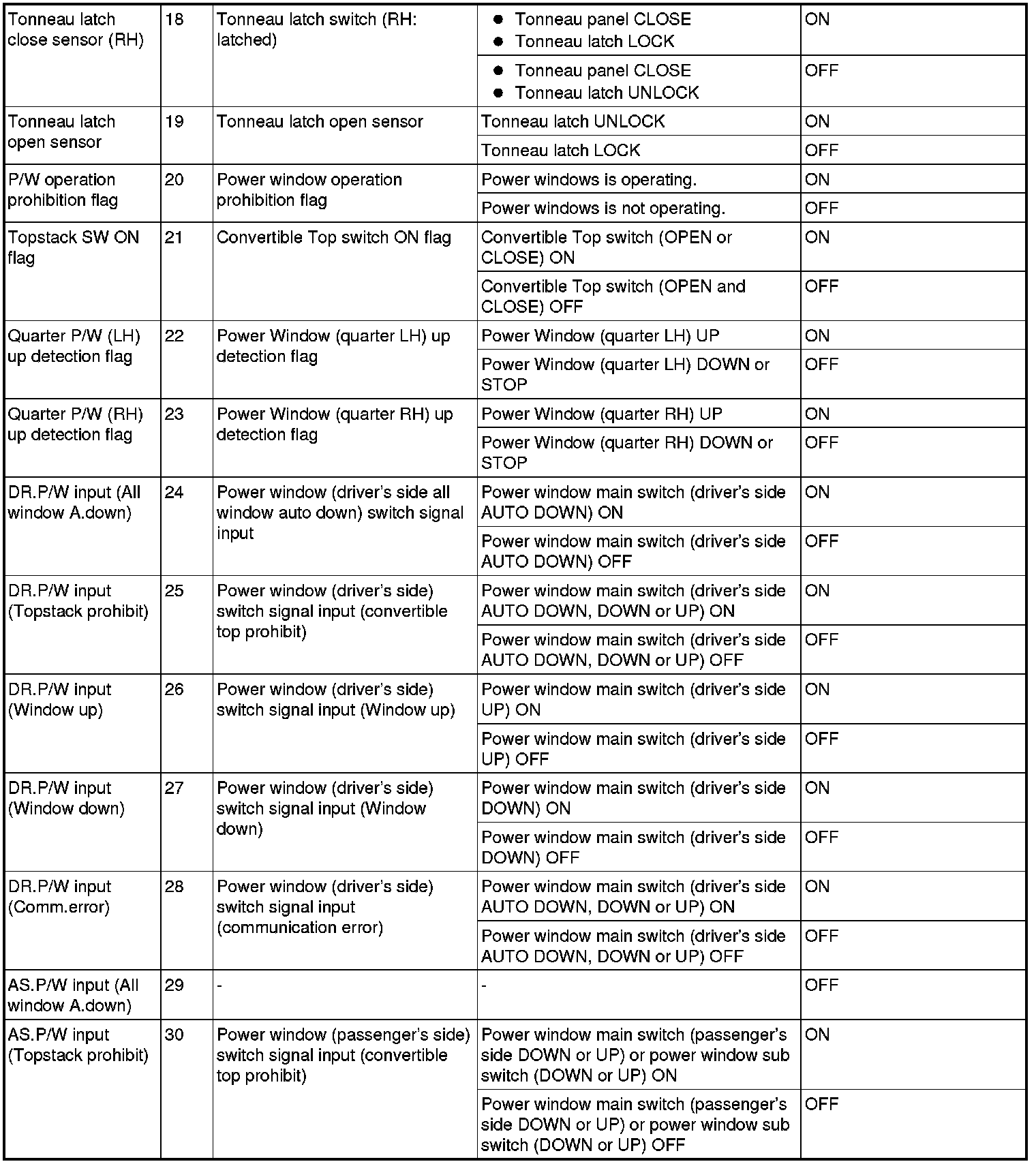

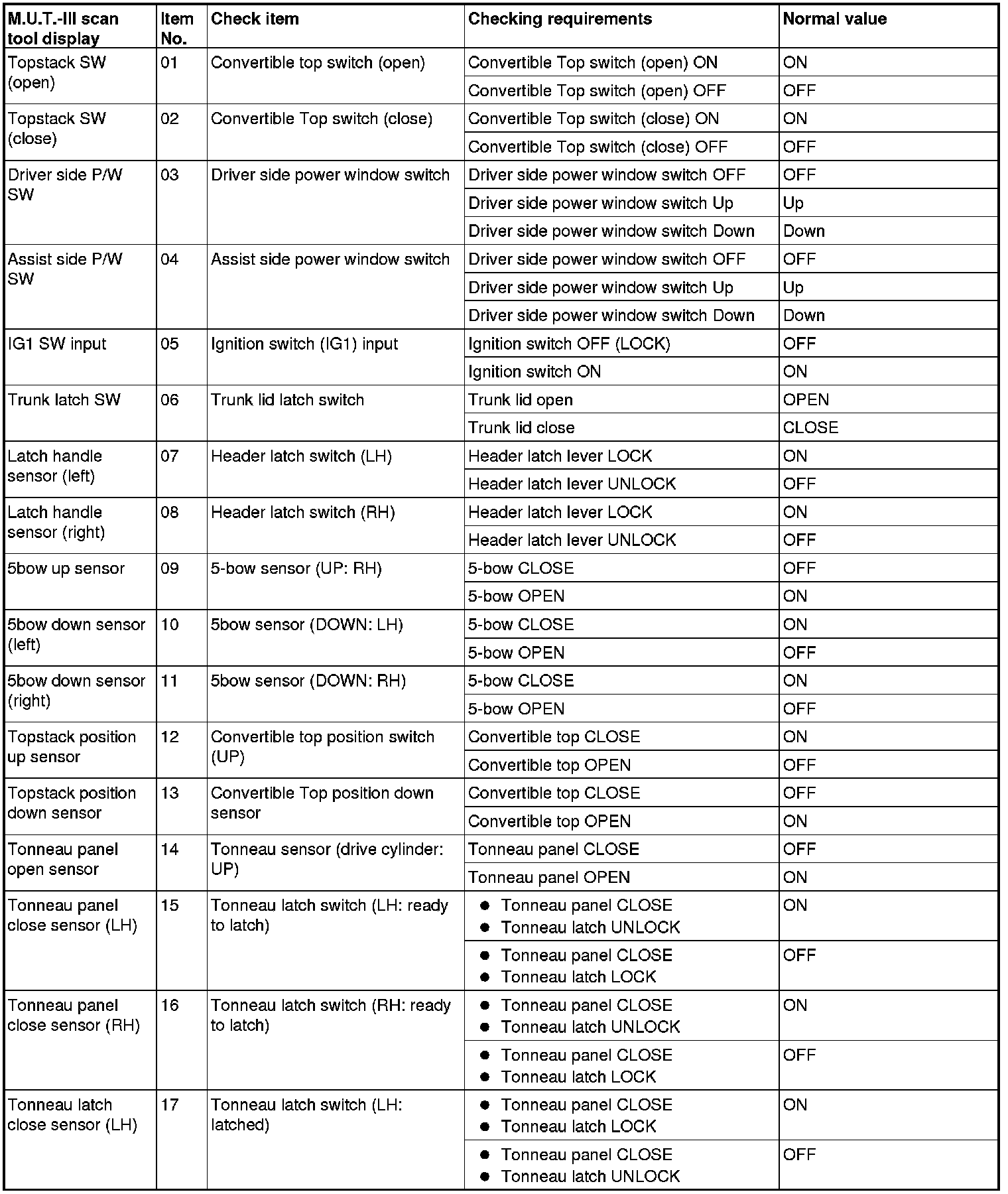

DATA LIST REFERENCE TABLE

The following items can be read by the scan tool from the convertible top control module input data.
