Convertible Top Assembly Removal and Installation

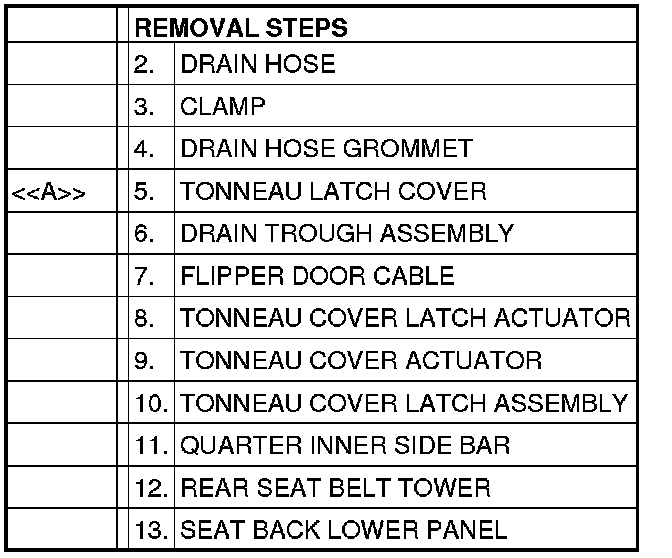

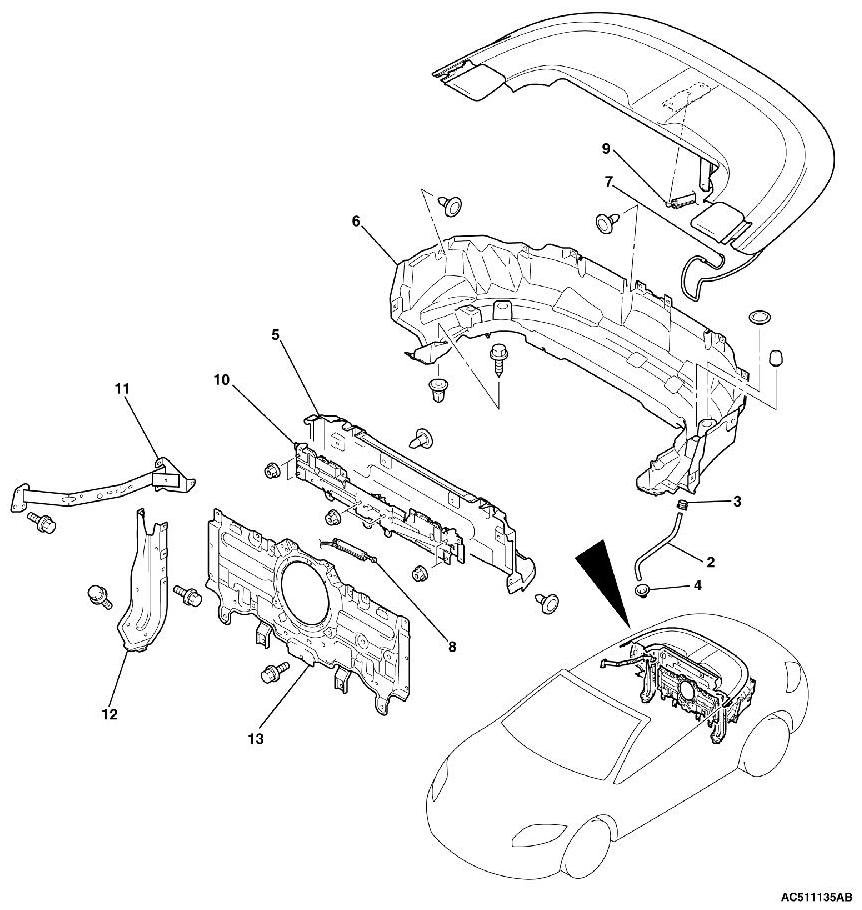

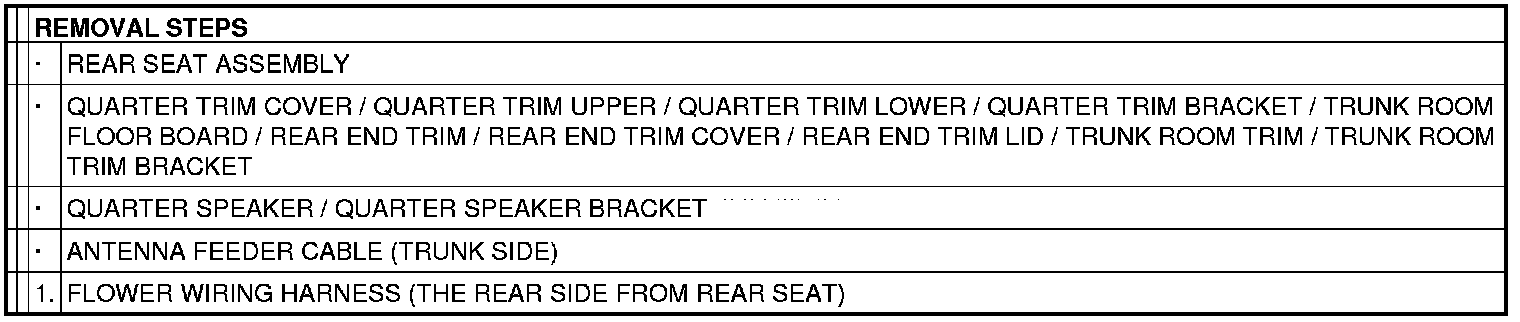

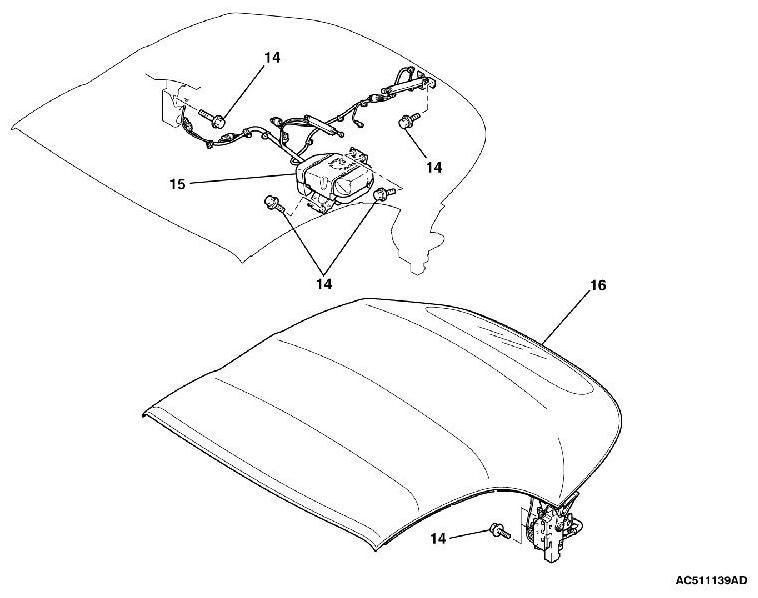

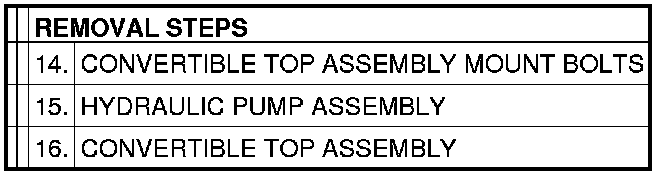

REMOVAL AND INSTALLATION





























REMOVAL SERVICE POINT

[[A]] TONNEAU LATCH COVER REMOVAL

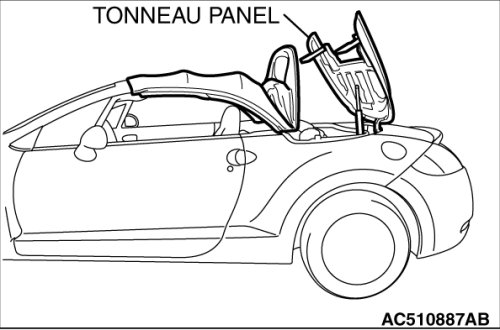

1. 5-bow and tonneau panel are opened.





2. Raise the tonneau panel, and insert the dedicated tool into the hinge hole to hold the tonneau panel in place.
3. Remove the tonneau latch cover.
