Installation and Removal of Adhesive Components



INSTALLATION AND REMOVAL OF ADHESIVE COMPONENTS

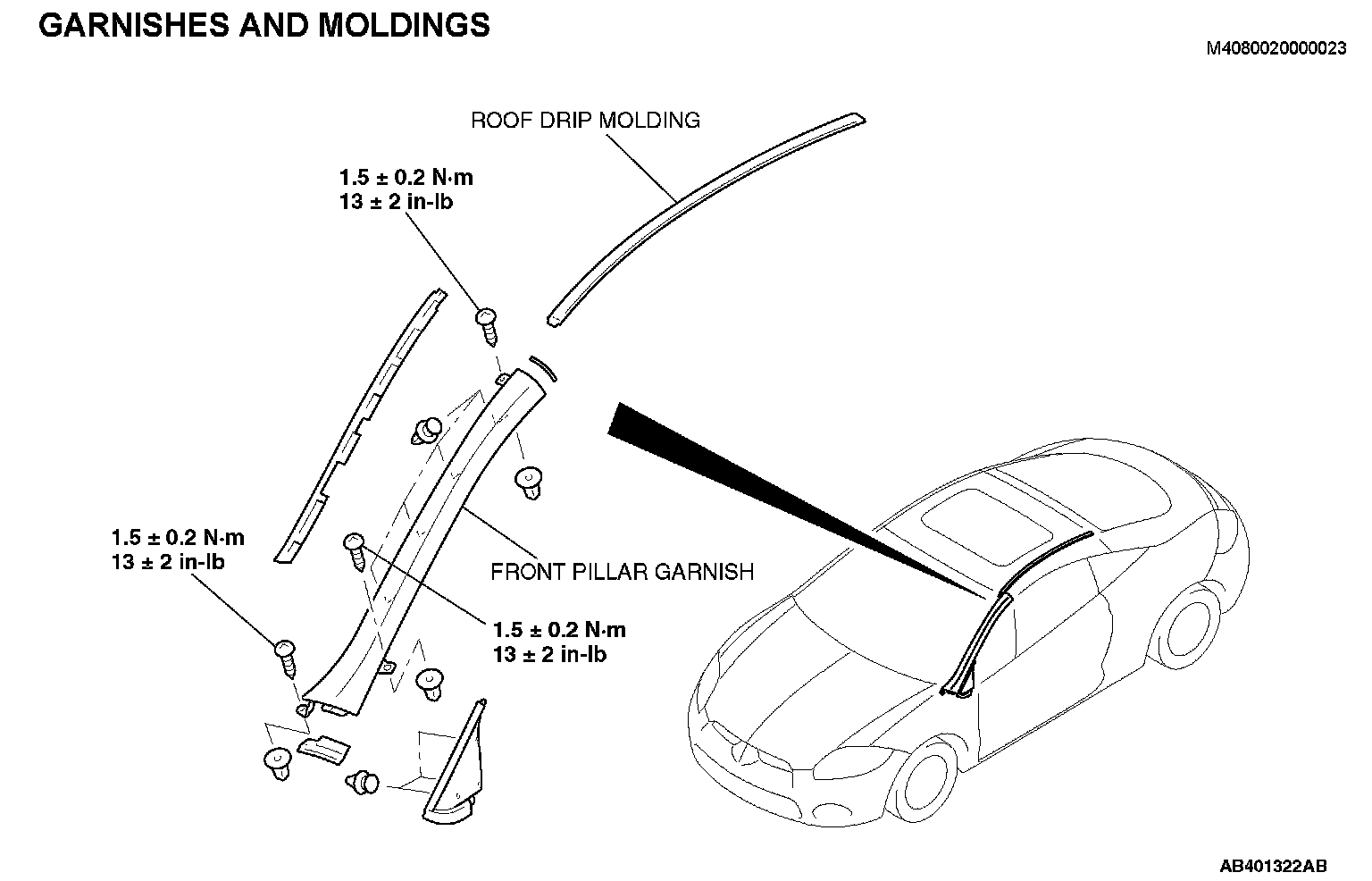

GARNISHES AND MOLDINGS

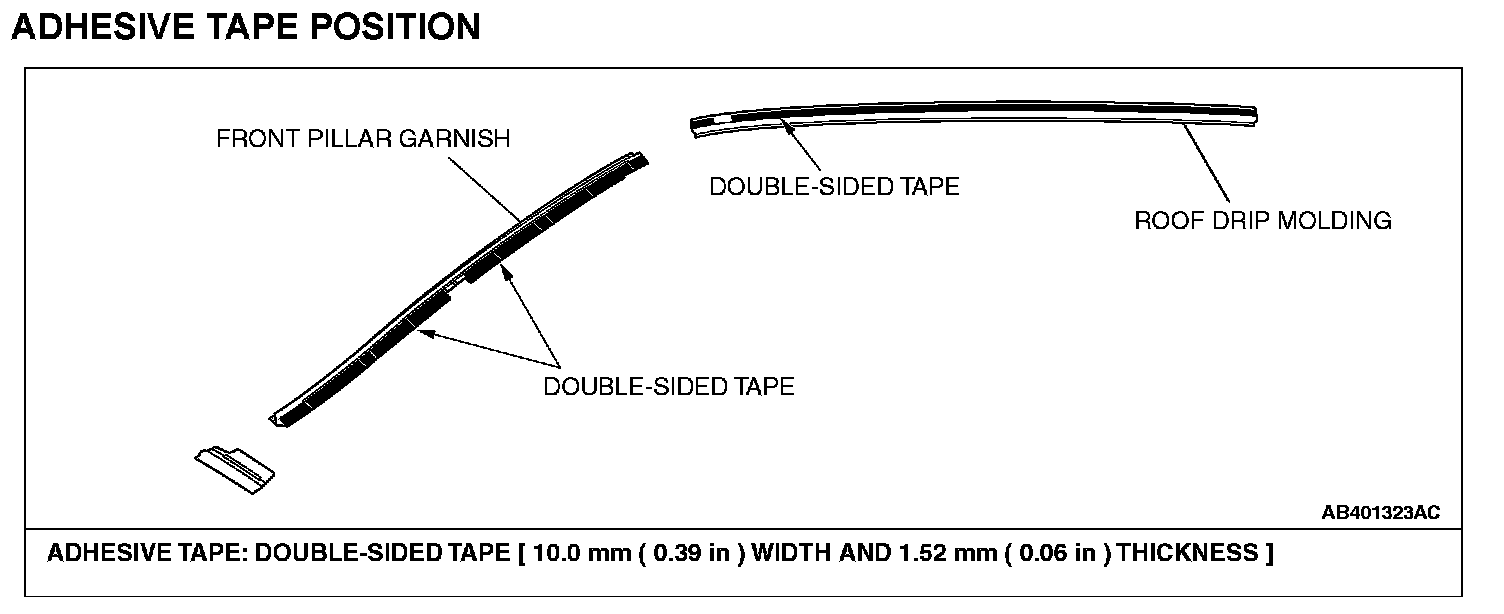

ADHESIVE TAPE POSITION

Required Special Tool:
- MB990784: Ornament Remover
