Home >> Mitsubishi >> 2011 >> Eclipse Spyder L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Latch >> Testing and Inspection

Trunk / Liftgate Latch: Testing and Inspection

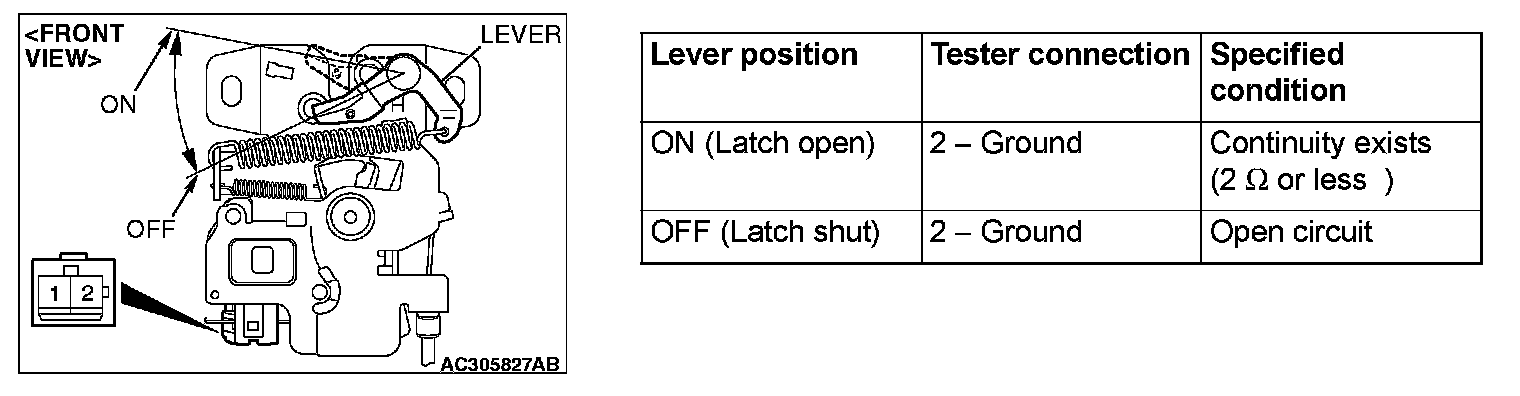

TRUNK LID LATCH ASSEMBLY CHECK

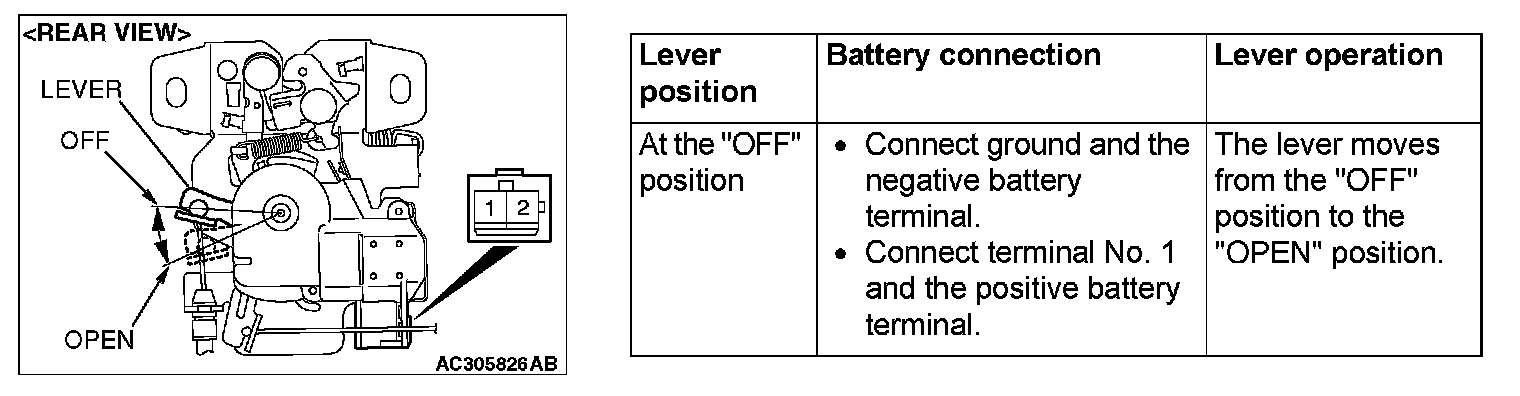

TRUNK LID LATCH ACTUATOR CHECK







TRUNK LID LATCH SWITCH CONTINUITY CHECK
