Front Door Latch: Service and Repair

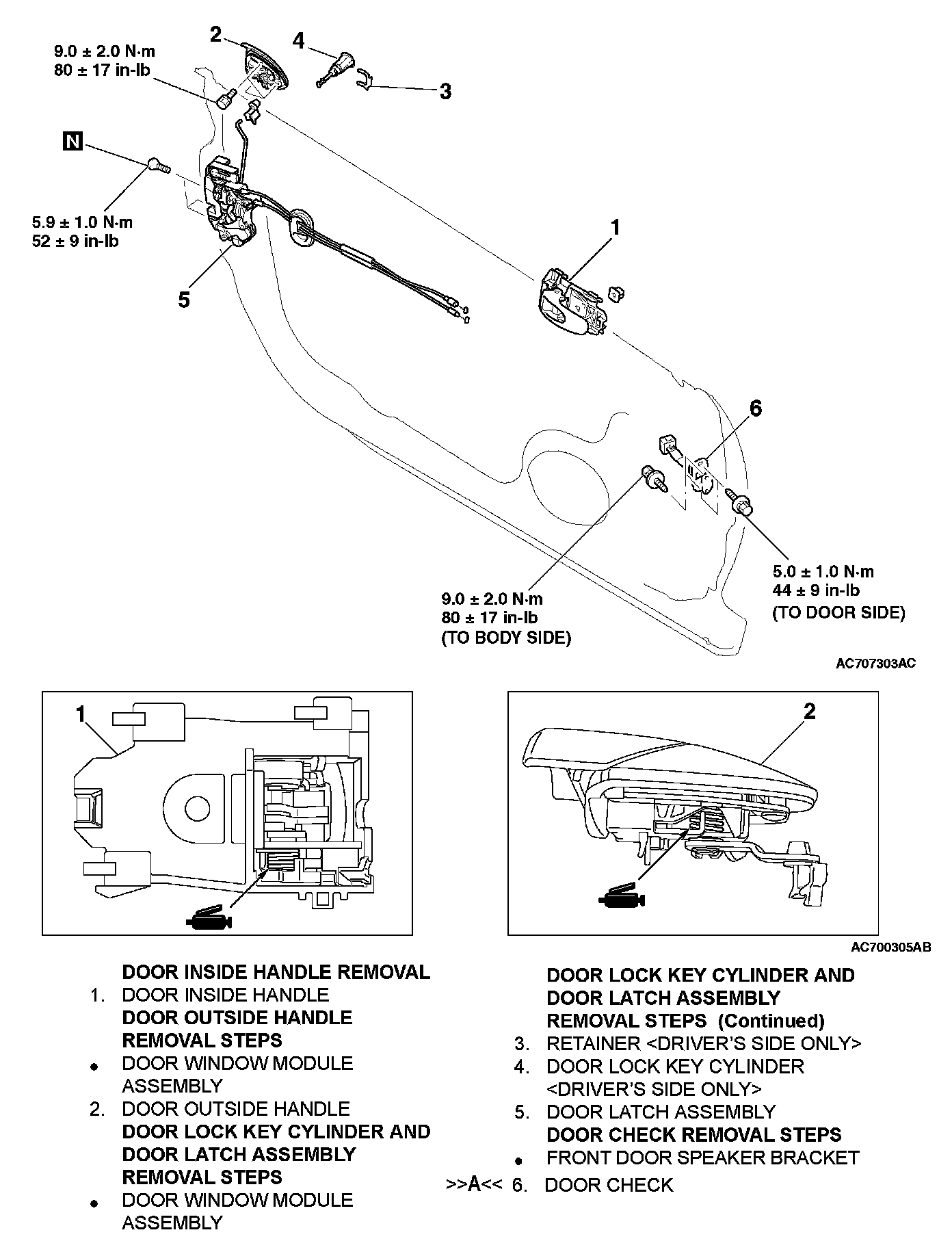

DOOR HANDLE AND LATCH

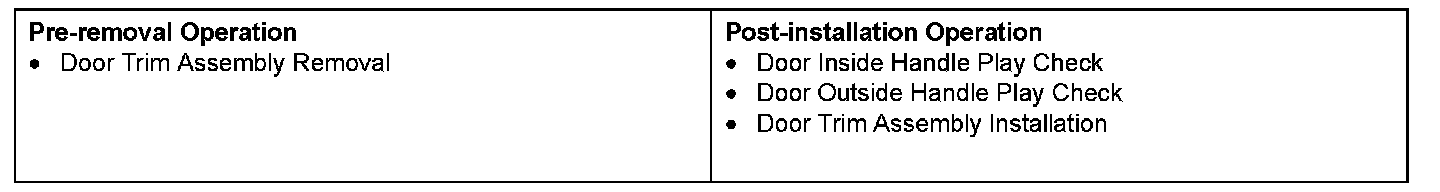

REMOVAL AND INSTALLATION







CAUTION:

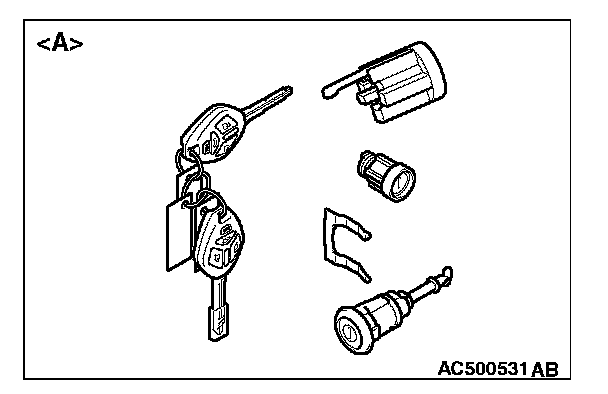

- When the door lock key cylinder is replaced by key set of illustration [A], register the encrypted code with the bar code on the ignition key in the key set.

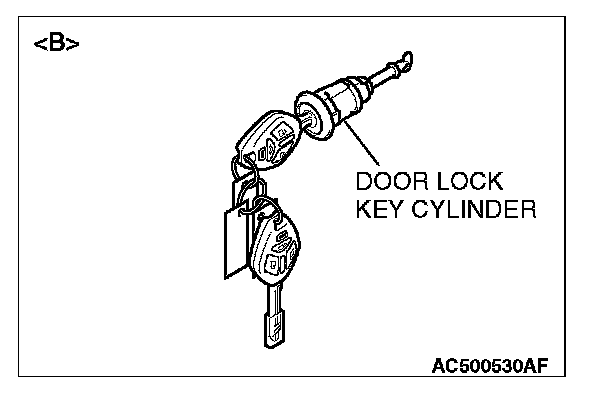

- When replacing by the door lock key cylinder of illustration [B], do not register the encrypted code with the bar code on the ignition key supplied simultaneously.










Required Special Tool:
- MB991223: Harness Set

INSTALLATION SERVICE POINT

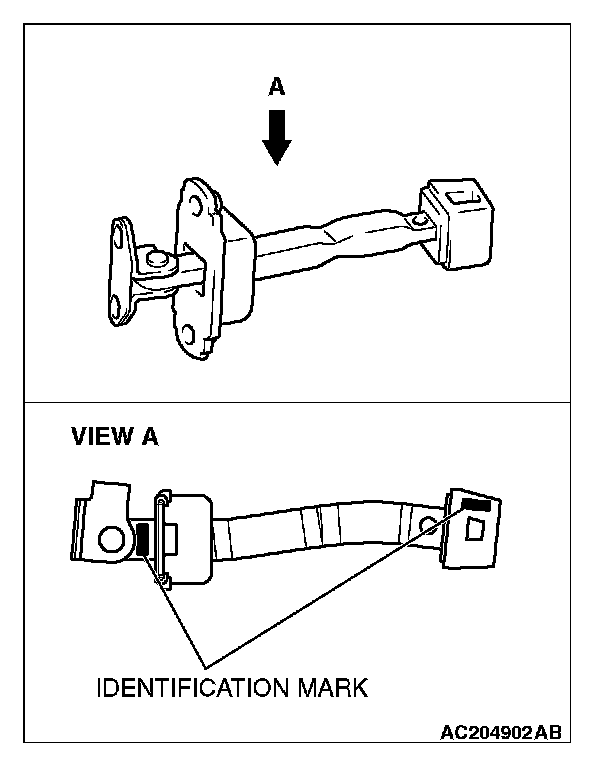

]]A[[ DOOR CHECK INSTALLATION

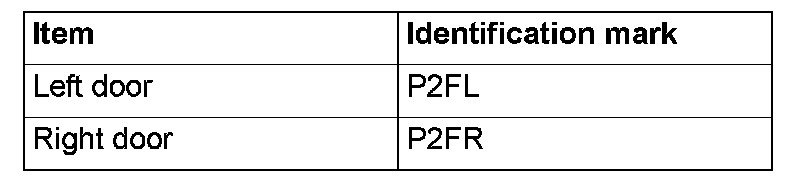

Install the door check so that the identification mark faces upwards.
