Security Lamp/Indicator: Testing and Inspection




INSPECTION

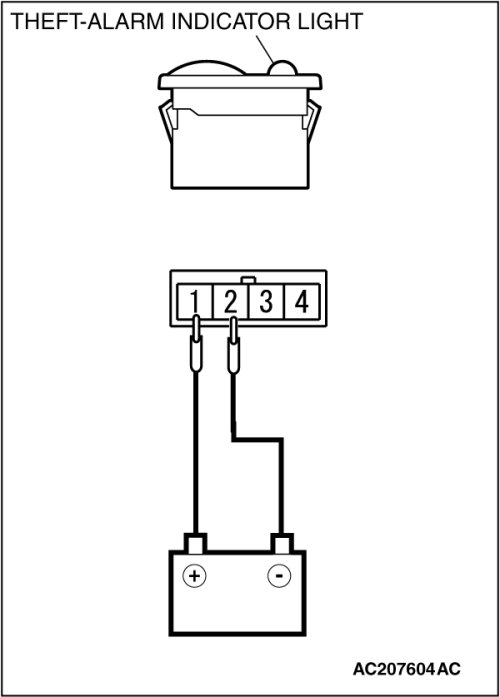

THEFT-ALARM INDICATOR LIGHT CHECK





Connect the positive battery terminal to theft-alarm indicator light terminal No.1, and connect the negative battery terminal to theft-alarm indicator light terminal No.2. Then, confirm that the theft-alarm indicator light illuminates.
