Antitheft and Alarm Systems

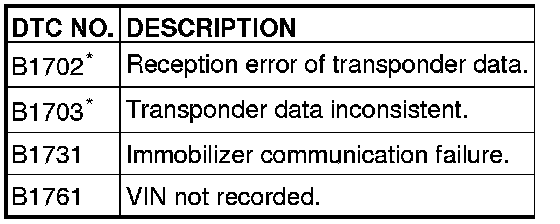

DIAGNOSTIC TROUBLE CODE CHART

CAUTION:
During diagnosis, a DTC associated with other system may be set when the ignition switch is turned "ON" position with connector(s) disconnected. On completion, confirm all systems for DTC(s). If DTC(s) are sets, erase them all.

Use the following chart to develop proper diagnostic strategy.






NOTE:
*: The DTC for a past problem is not sent.
