Front Door Window Glass: Service and Repair

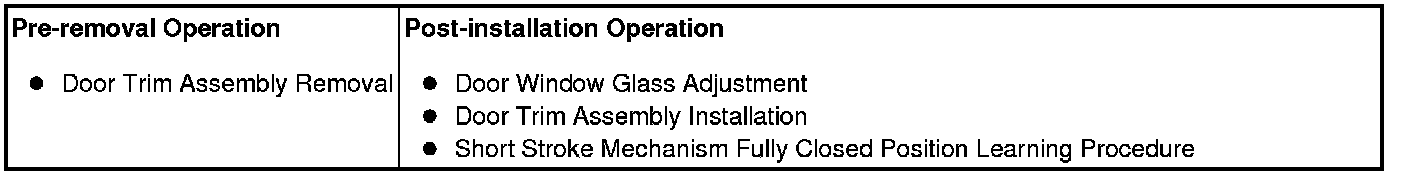

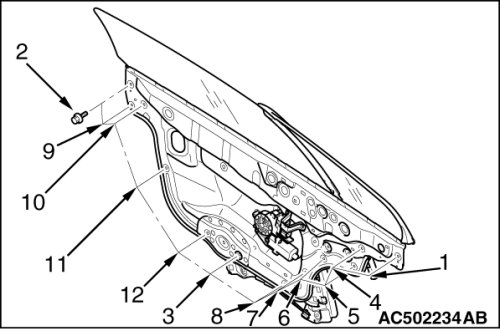

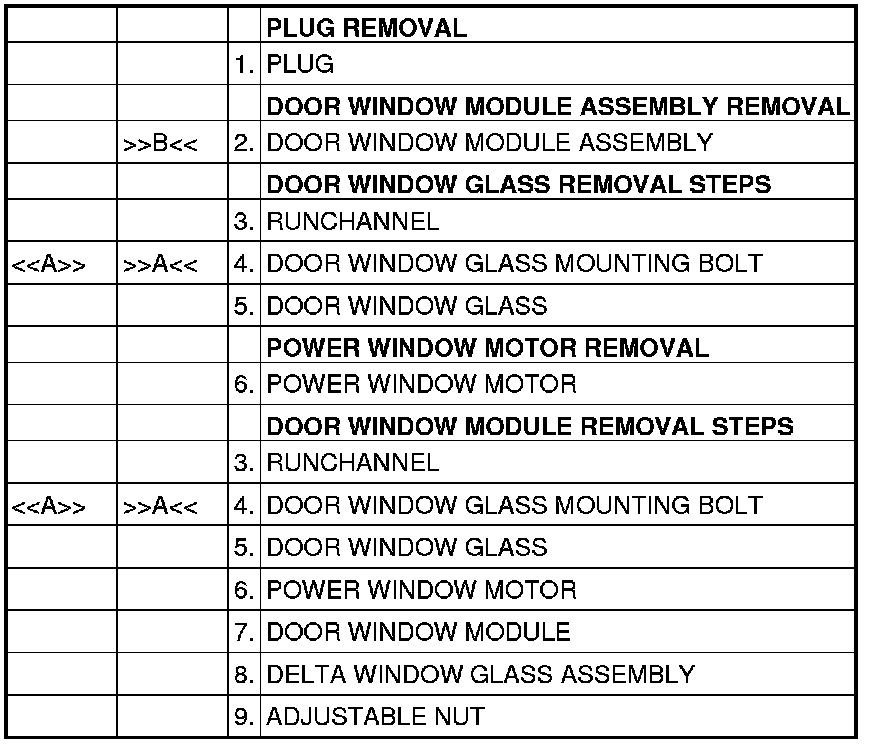

REMOVAL AND INSTALLATION













REMOVAL SERVICE POINT

[[A]] DOOR WINDOW GLASS MOUNTING BOLT REMOVAL

CAUTION:
When loosening the door window glass mounting bolts, use a magnetic wrench to prevent bolts from dropping into the door window module assembly cavity.

INSTALLATION SERVICE POINTS

]]A[[ DOOR WINDOW GLASS MOUNTING BOLT INSTALLATION

CAUTION:
When tightening the door window glass mounting bolts, use a magnetic wrench to prevent bolts from dropping into the door window module assembly cavity.

]]B[[ DOOR WINDOW MODULE ASSEMBLY INSTALLATION

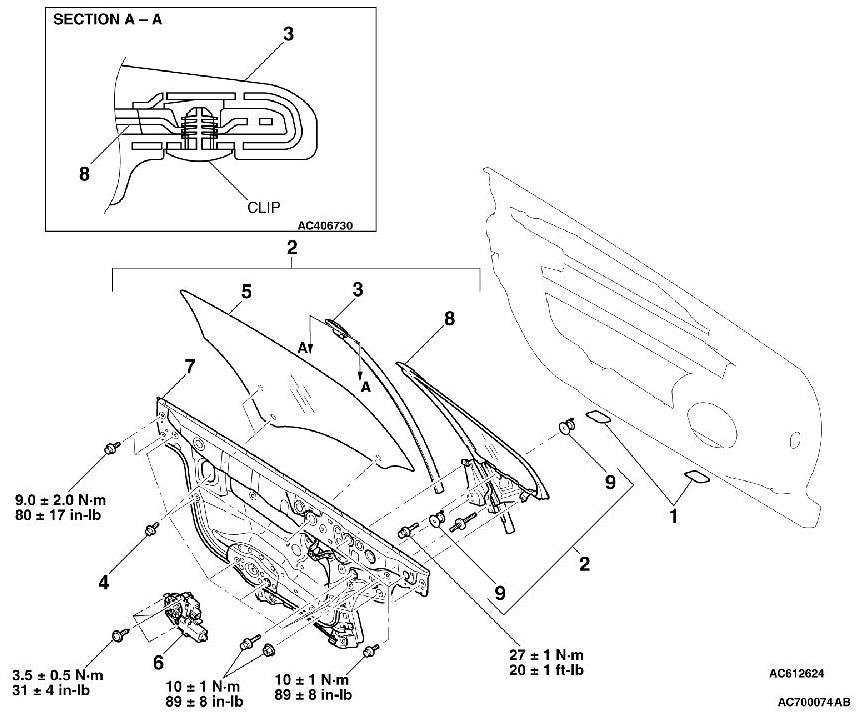

Install the door window module assembly in the order shown.
NOTE:
Check the installation position of the door window glass and the delta window glass (Refer to Adjustments [ECLIPSE], Adjustments [ECLIPSE SPYDER]).
