Transaxle Case Disassembly and Assembly

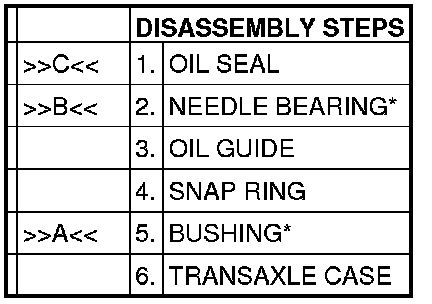

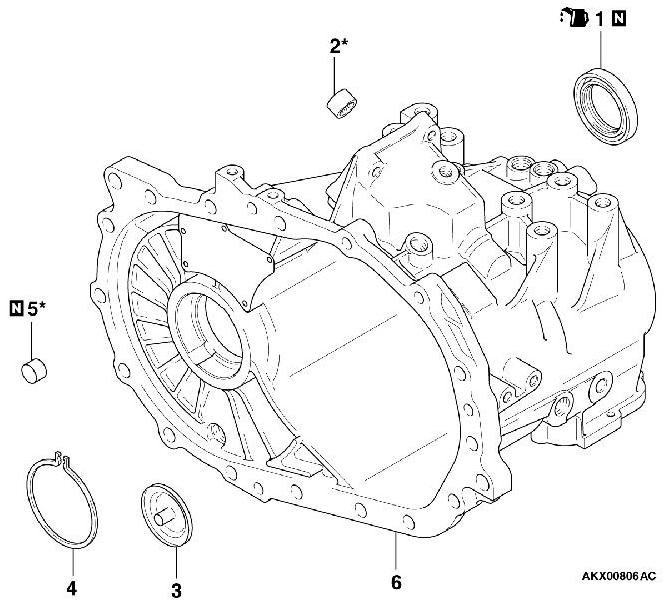

DISASSEMBLY AND ASSEMBLY









NOTE:
*:Refer to the needle bearing and bushing installation procedures only when replacing the transaxle case.

- MD998325: Differential Oil Seal Installer


ASSEMBLY SERVICE POINTS

]]A[[ BUSHING INSTALLATION

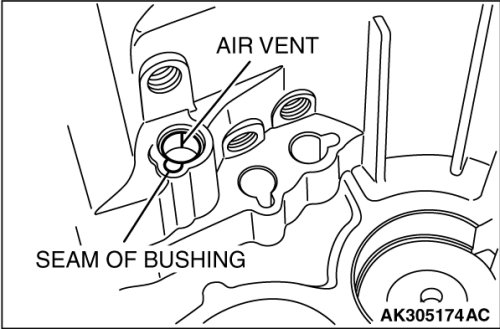

1. Press fit the bushing so the seam is away from the air vent.

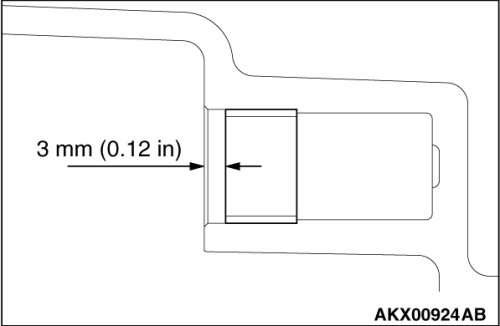

2. Be sure the bushing is fully seated as shown. It must be 3 mm(0.12 inch) below the housing surface.

]]B[[ NEEDLE BEARING INSTALLATION

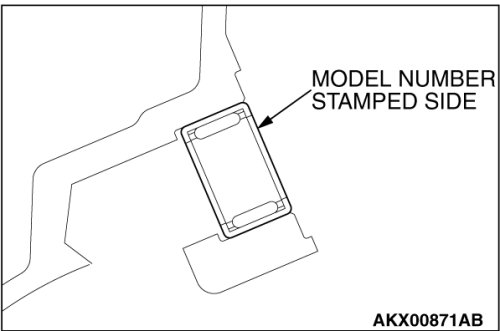

1. Check the installation direction of the needle bearing.
2. Press fit the needle bearing until it is flush with the case.

]]C[[ OIL SEAL INSTALLATION





1. Apply gear oil (Hypoid gear oil SAE 75W-90 or 75W-85 conforming to API classification GL-4).





2. Using special tool MD998325, press fit the oil seal into the transaxle case.
