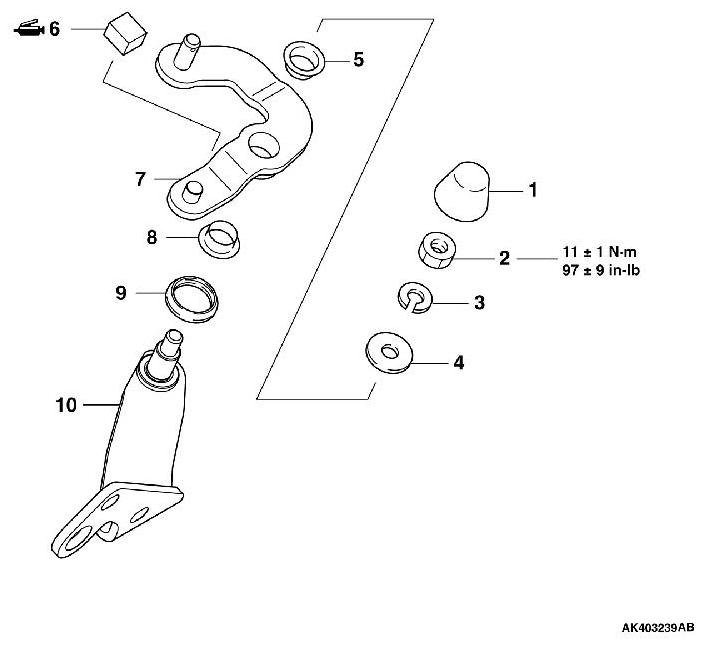

Select Lever Disassembly and Assembly

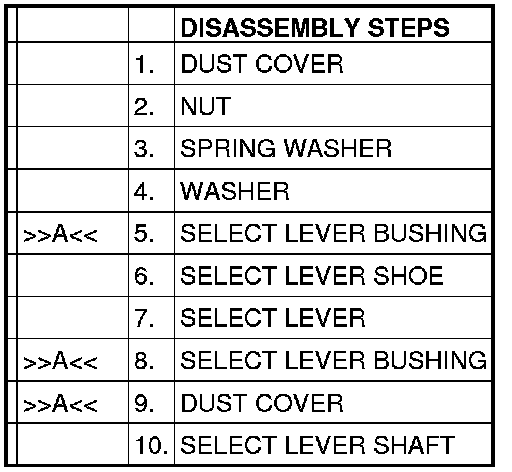

DISASSEMBLY AND ASSEMBLY









ASSEMBLY SERVICE POINT

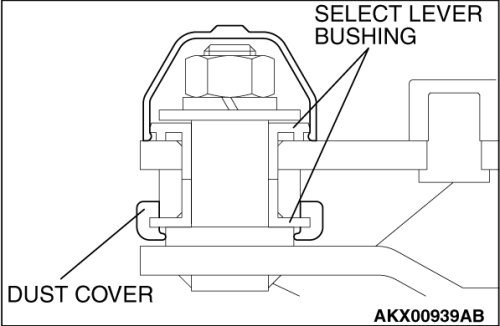

]]A[[ DUST COVER AND SELECT LEVER BUSHING INSTALLATION





Make sure the dust cover and select lever bushing installation direction is correct, and the distinguished parts are correctly assembled as shown.
