Without Manufacturer's Scan Tool

DIAGNOSTIC FUNCTION

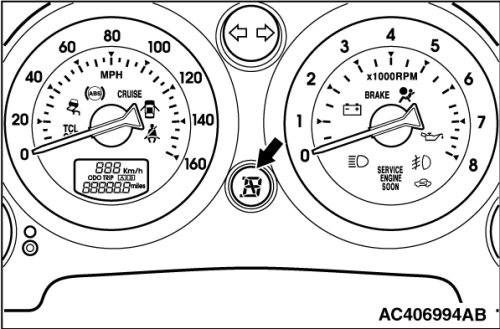

CHECK SELECTOR LEVER POSITION INDICATOR LIGHT





The selector lever position indicator light (D, 1 through 4 or 5) flashes once per second if there is an abnormality in any of the items in the table below which are related to the A/T system.
Check for diagnostic trouble codes if the selector lever position indicator light (D, 1 through 4 or 5) is flashing once per second.
Selector lever position indicator light (D, 1 through 4 or 5) flashing items

- Input shaft speed sensor
- Output shaft speed sensor
- Each solenoid valve
- Gear incorrect ratio
- A/T control relay system

NOTE:
If the selector lever position indicator light (D, 1 through 4 or 5) is flashing twice per second, the transmission fluid temperature is high. [It flushes when the fluid is approximately 125°C (257°F )or more and goes off when the fluid is approximately 115°C (239°F )or less]
