PCM Terminal Resistance and Continuity Inspection Chart

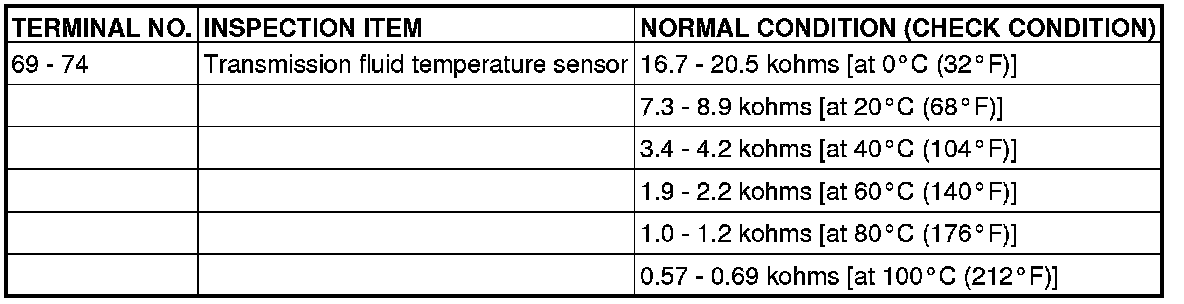

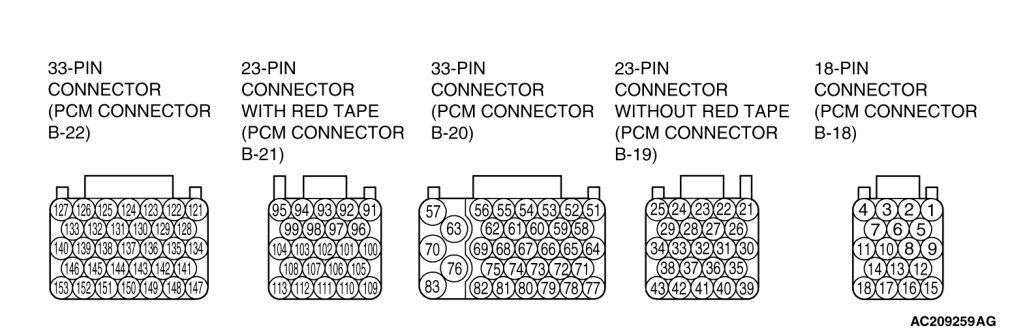

PCM TERMINAL RESISTANCE AND CONTINUITY INSPECTION CHART

NOTE:
The PCM connectors should be disconnected for this inspection.
