Second Brake Disassembly and Assembly

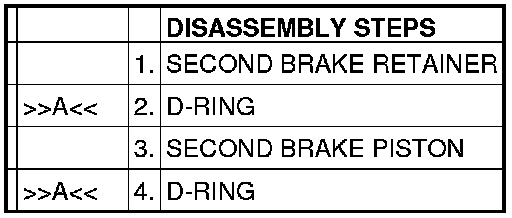

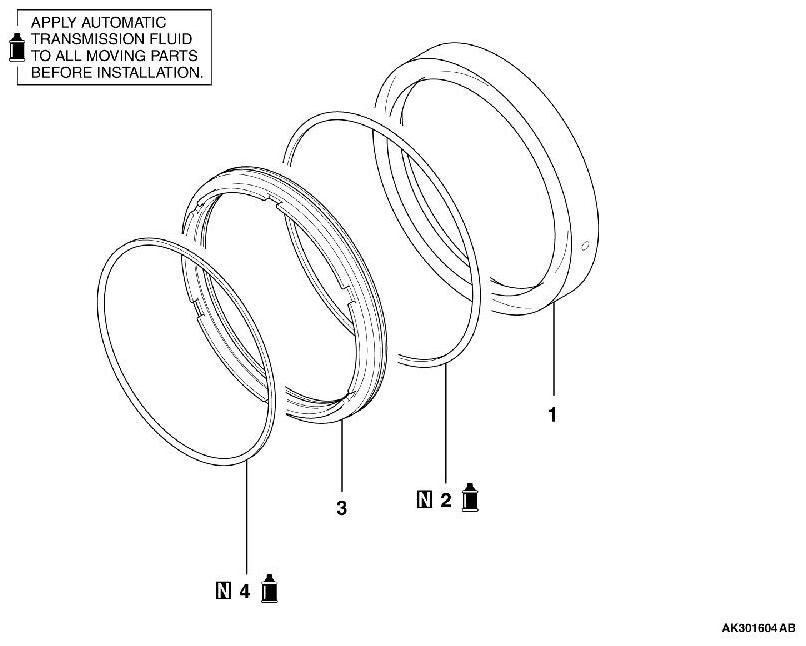

DISASSEMBLY AND ASSEMBLY









ASSEMBLY SERVICE POINT

]]A[[ D-RING INSTALLATION

Apply ATF or petroleum jelly (Vaseline) to the D-ring, and install carefully.
