Home >> Mitsubishi >> 2011 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Diagrams >> Electrical Diagrams

Electrical Diagrams

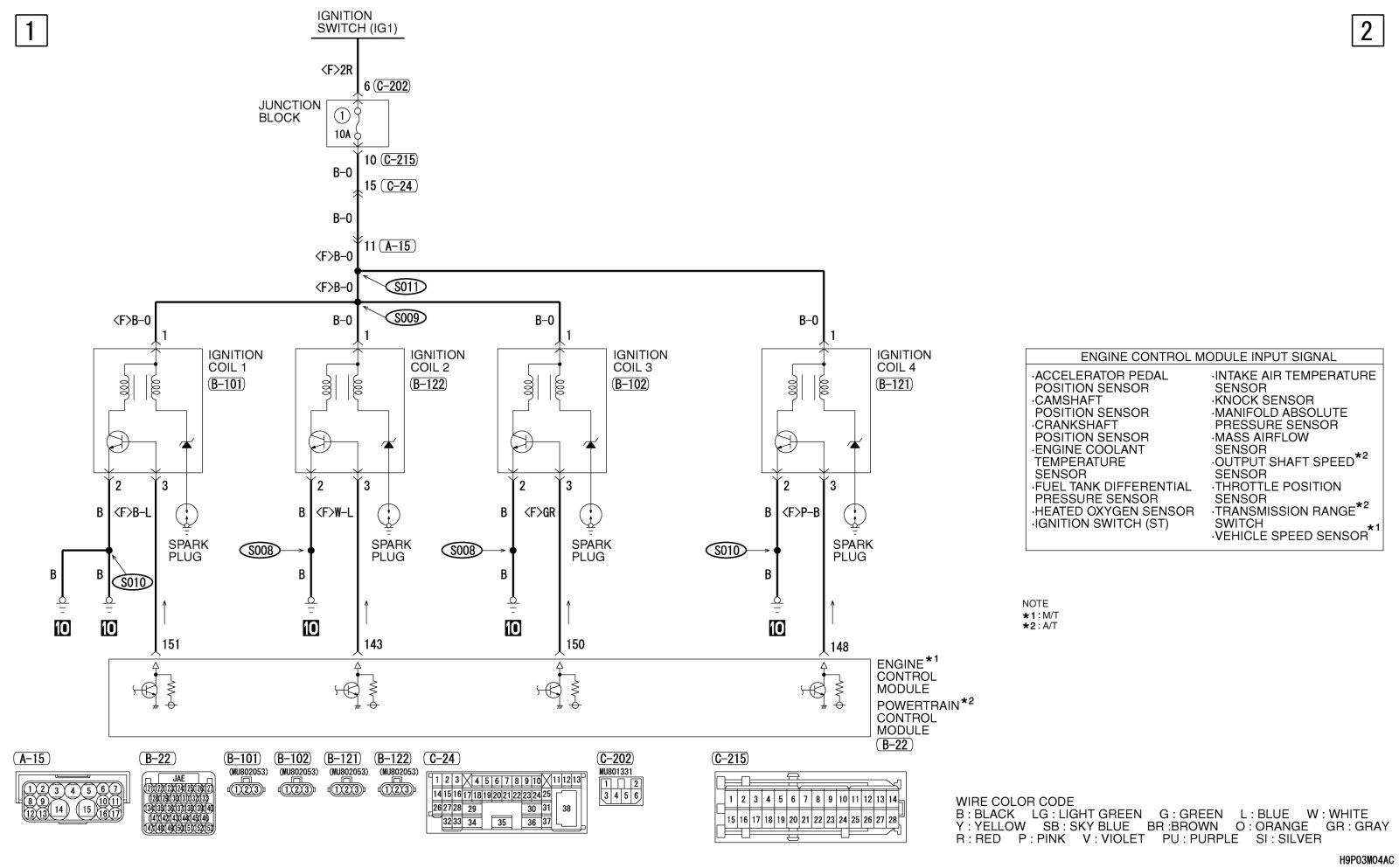

IGNITION SYSTEM [2.4L ENGINE]
