Coolant: Testing and Inspection
SELECTION OF COOLANTCOOLANT

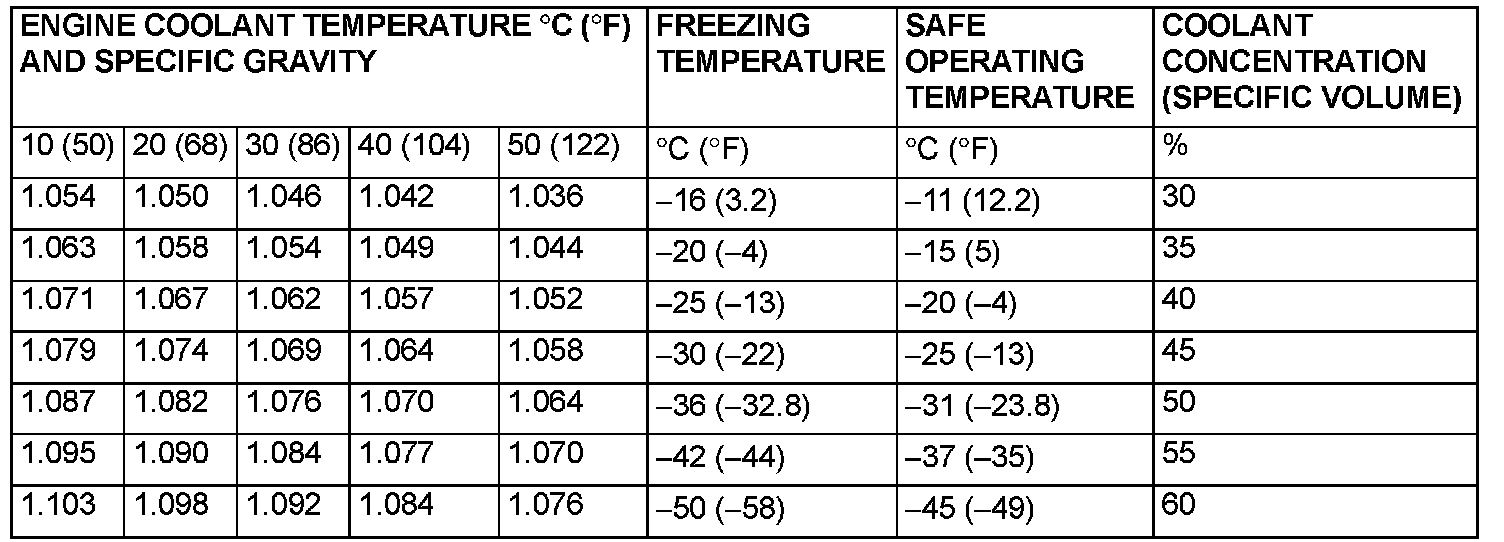

Relationship between Coolant Concentration and Specific Gravity
CAUTION
^ If the concentration of the coolant is below 30%, the anti-corrosion property will be adversely affected. In addition, if the concentration is above 60%, both the anti-freeze and engine cooling properties will decrease, affecting the engine adversely. For these reasons, be sure to maintain the concentration level within the specified range.
^ Do not use a mixture of different brands of anti-freeze.
Example
The safe operating temperature is -15°C (5°F) when the specific gravity is 1.058 at the coolant temperature of 20°C (68°F)
