Instrument Cluster / Carrier: Description and Operation

GENERAL DESCRIPTION

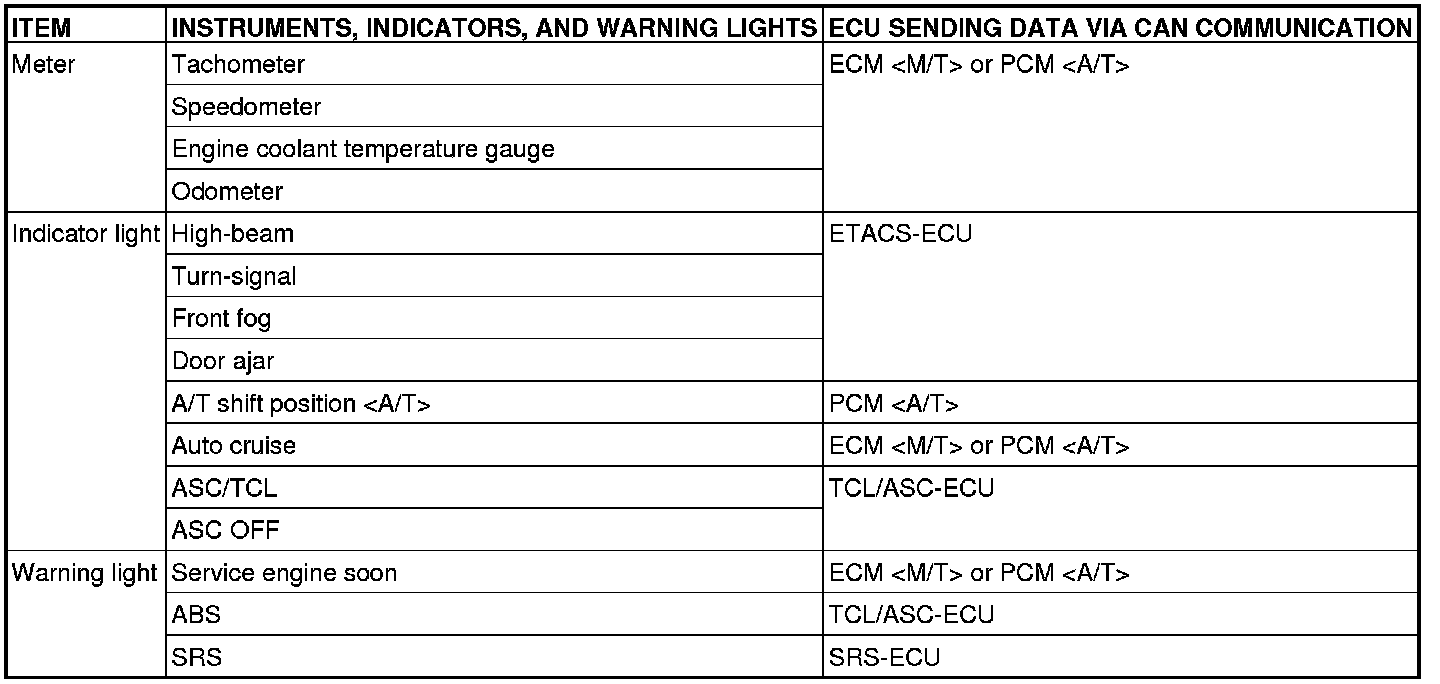

Some of the combination meter indications are based on information from ECUs via CAN bus communication. If there is any failure in the meters connected via the CAN bus communication, diagnose the CAN bus communication system. The following instruments, indicator lights and warning lights in the combination meter are controlled by ECUs via CAN bus communication.
