Removal and Replacement

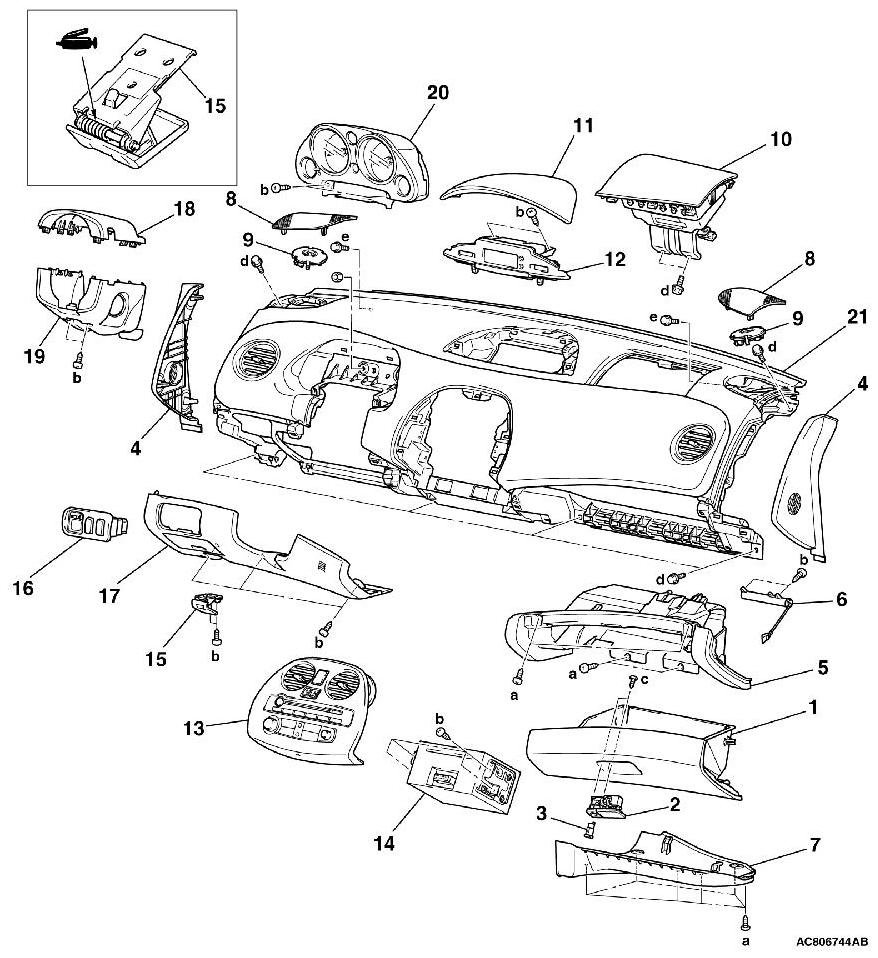

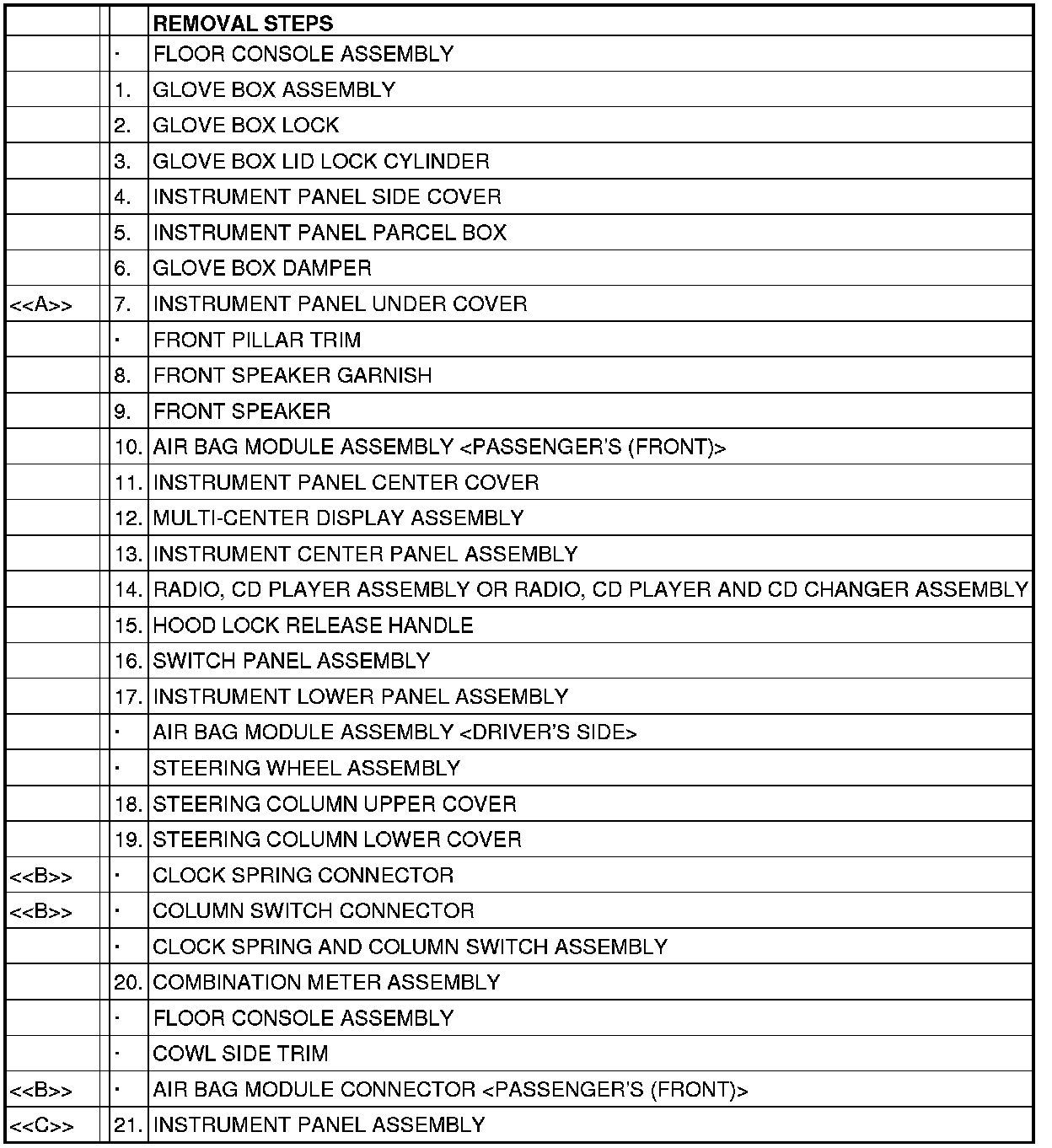

REMOVAL AND INSTALLATION









CAUTION:

- Technician Safety Information and Air bag Module and Clock Spring Service and Repair before removing the passenger side air bag module.
- Do not subject the SRS-ECU to any shocks when removing or installing the instrument panel.

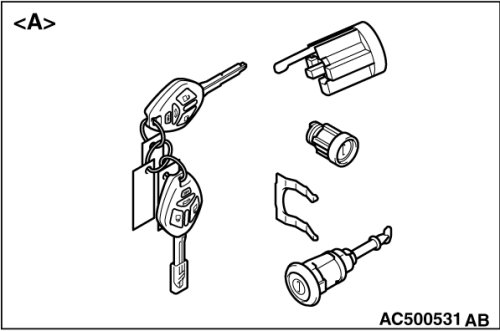

- When the glove box lid lock cylinder is replaced by key set of illustration[ A], register the encrypted code with the bar code on the ignition key in the key set. Immobilizer System.

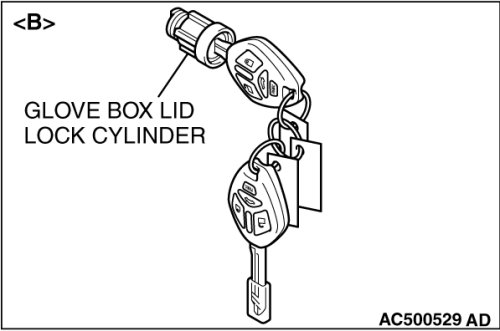

- When replacing by the glove box lid lock cylinder of illustration[ B], do not register the encrypted code with the bar code on the ignition key supplied simultaneously.

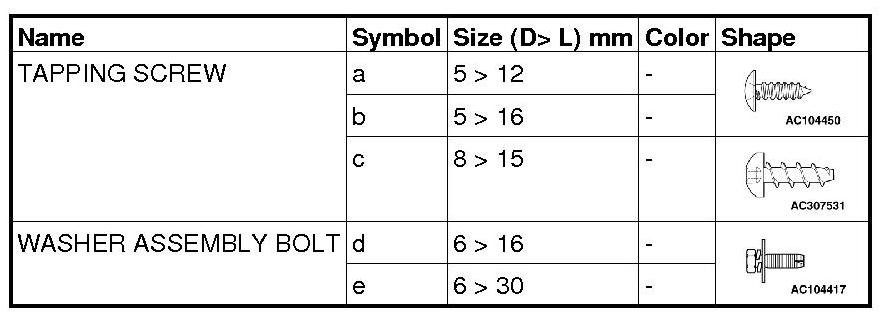

The following bolts and screws are used for installing the instrument panel.
Bolts and screws are indicated as marks shown in the illustration in the sections of "Removal and Installation" and "Disassembly and Assembly."

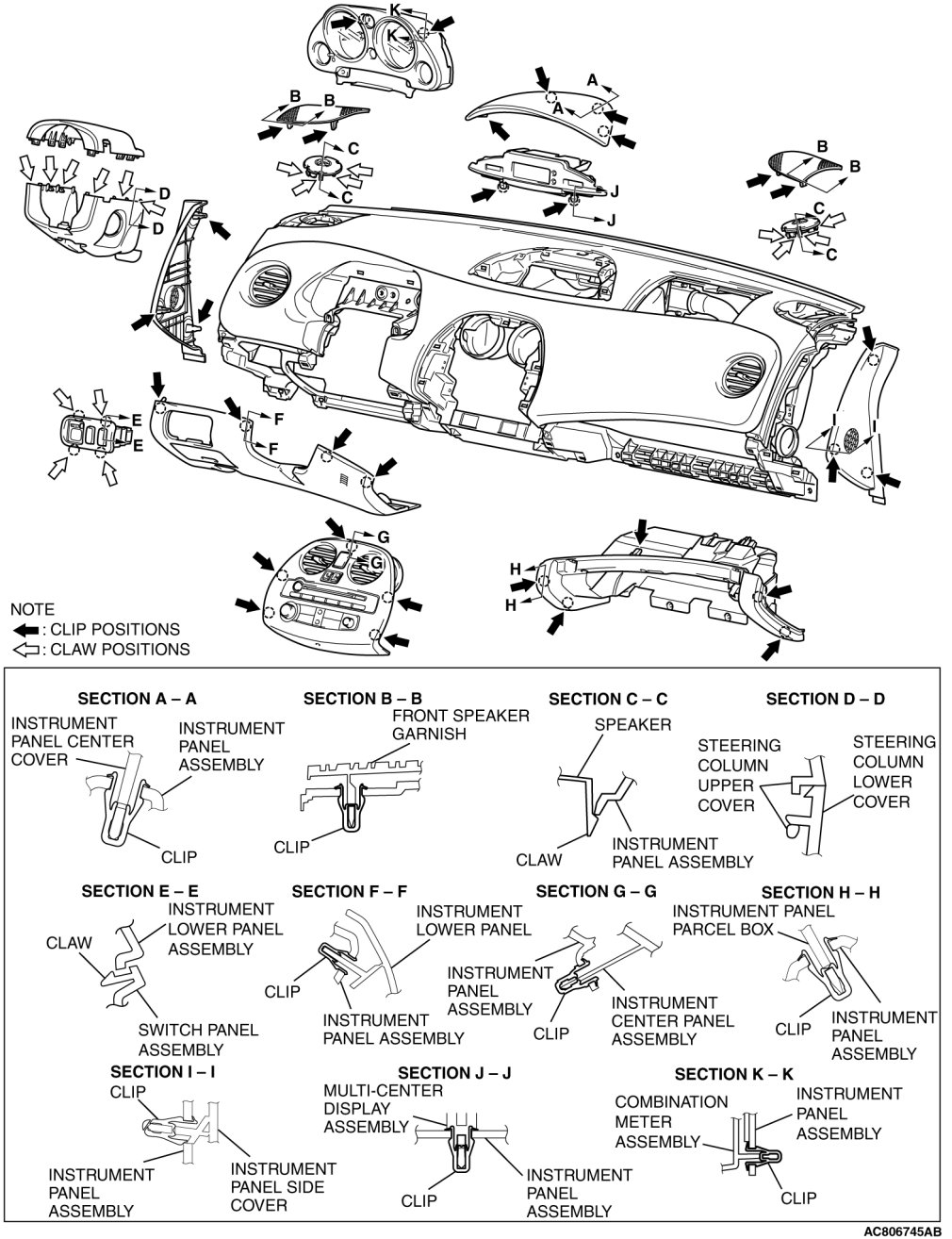

CLIP AND CLAW POSITIONS





REMOVAL SERVICE POINT

[[A]] INSTRUMENT PANEL UNDER COVER REMOVAL





Use a commercial ratchet screwdriver to remove the instrument panel under cover mounting screw.

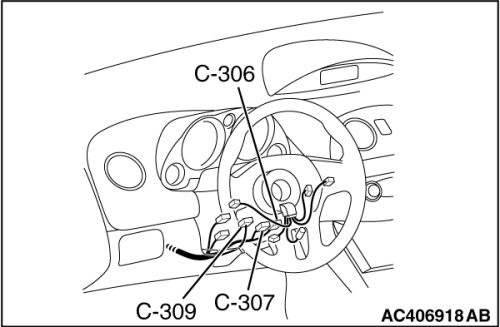

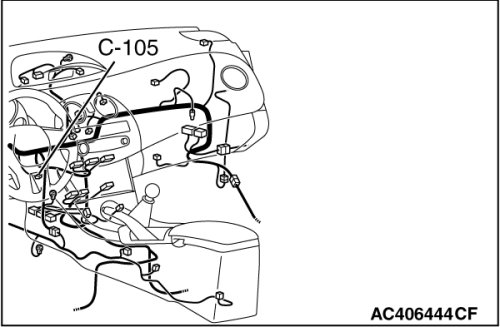

[[B]] CONNECTOR DISCONNECTION









Disconnect the connectors shown in the illustration.

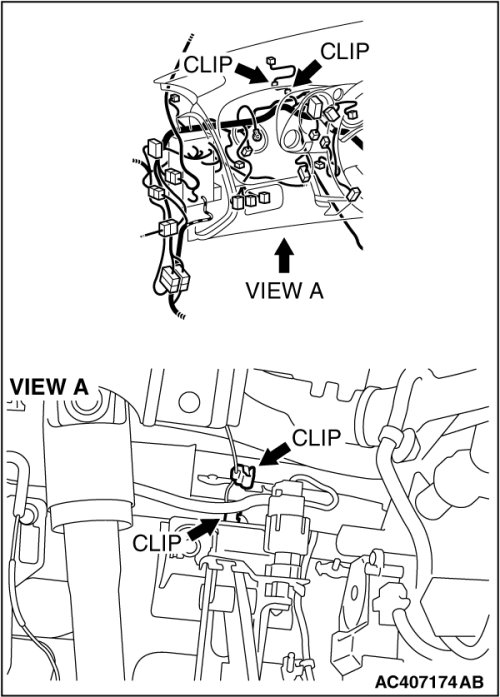

[[C]] INSTRUMENT PANEL ASSEMBLY REMOVAL





Slide the instrument panel slightly and remove the clip from the instrument panel as shown and disconnect the photo sensor connector.
