A/C - A/C Indicator Flashing Troubleshooting Revision
NO: TSB-10-55-002DATE: March, 2010
MODEL: See below
SUBJECT:
A/C INDICATOR LIGHT FLASHES (ECLIPSE & ECLIPSE SPYDER) - SERVICE MANUAL REVISION
PURPOSE

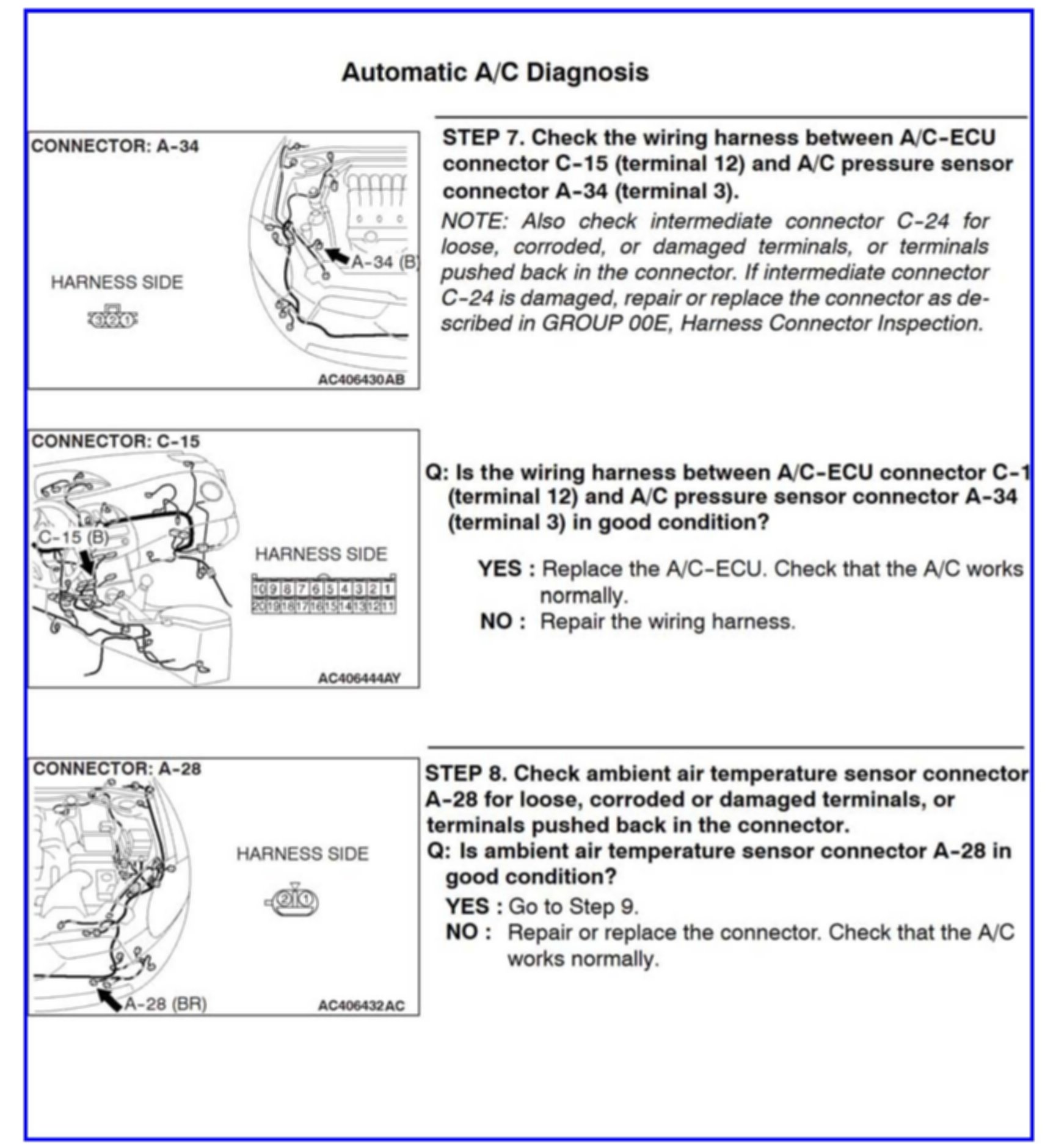

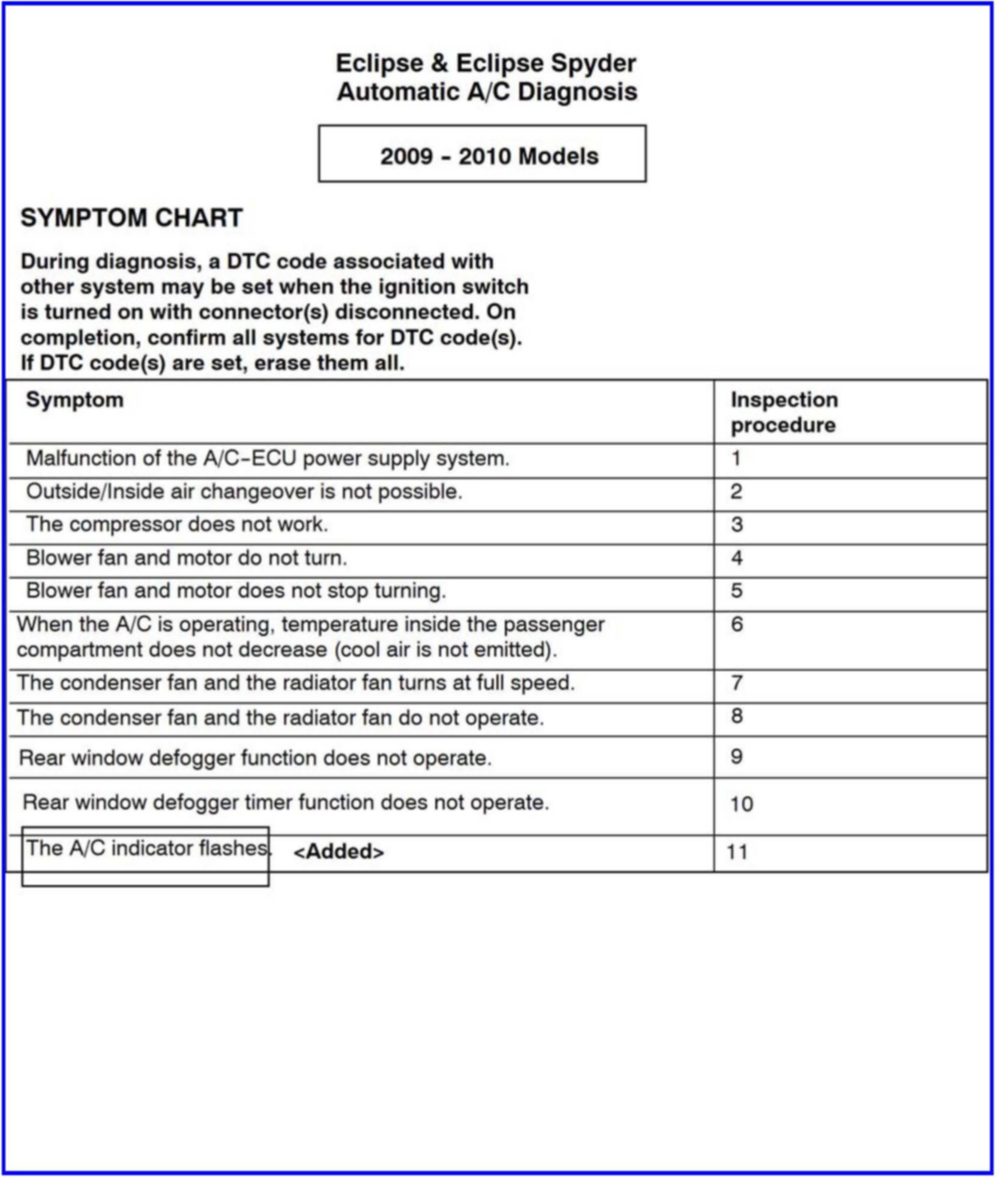

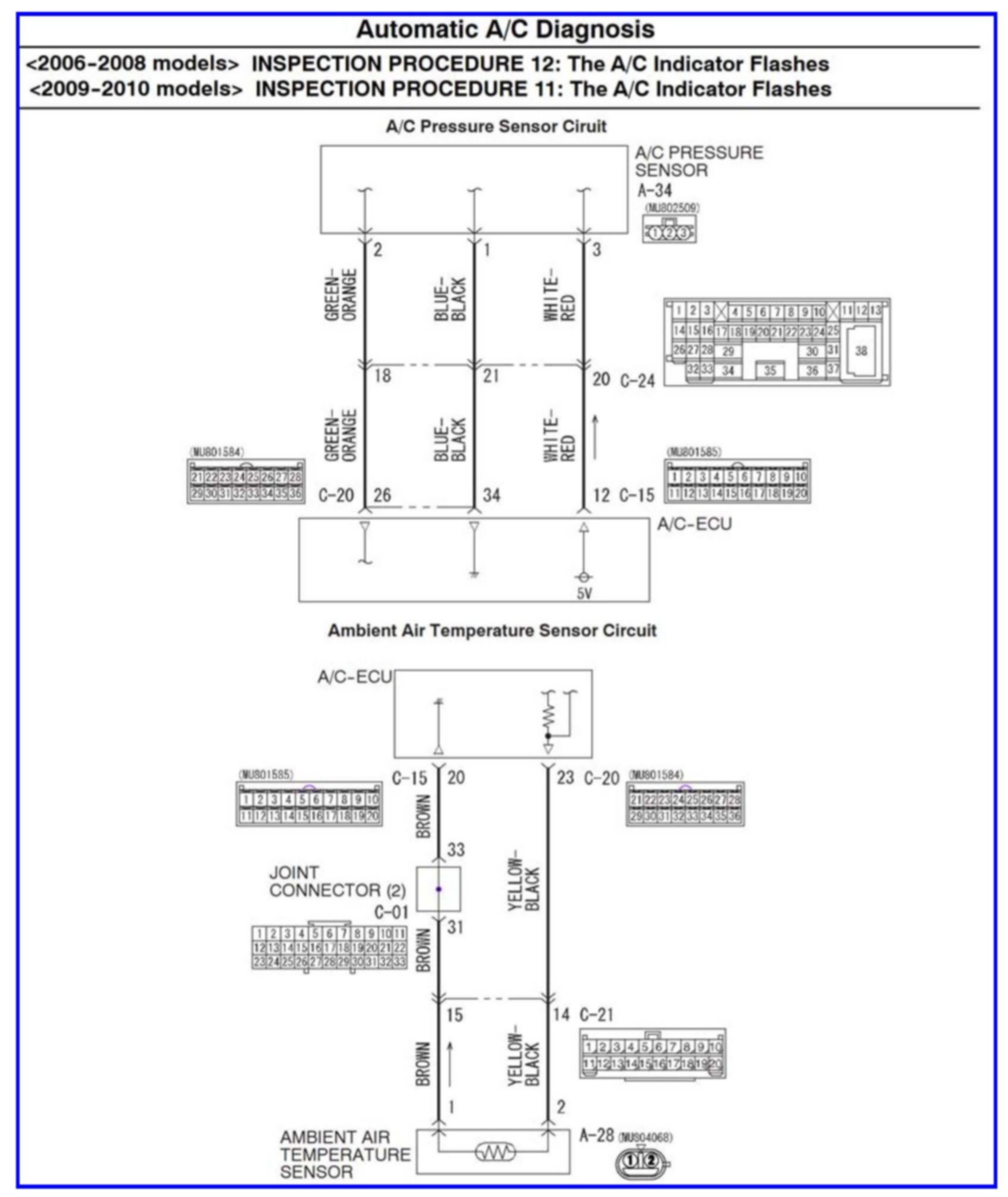

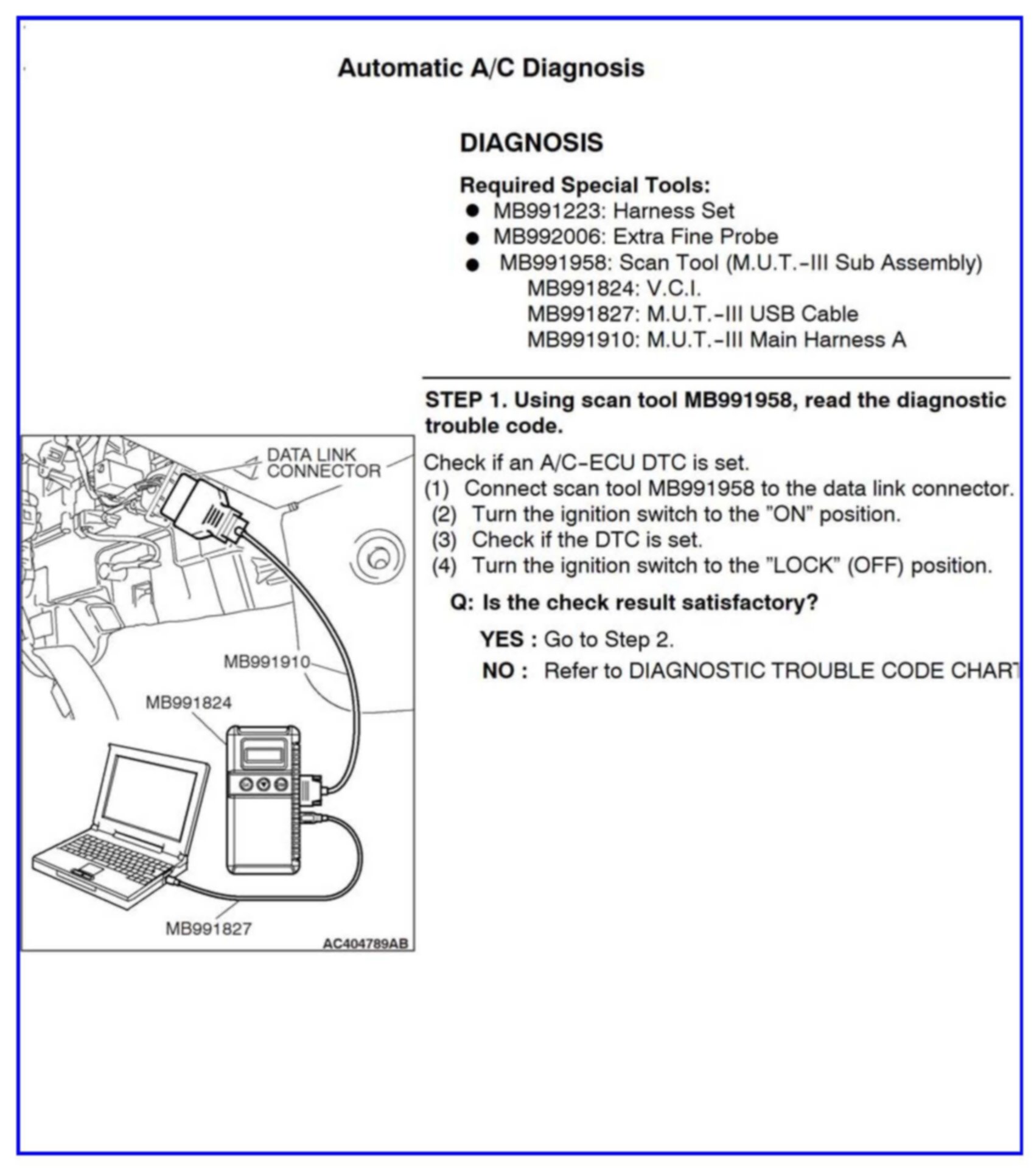

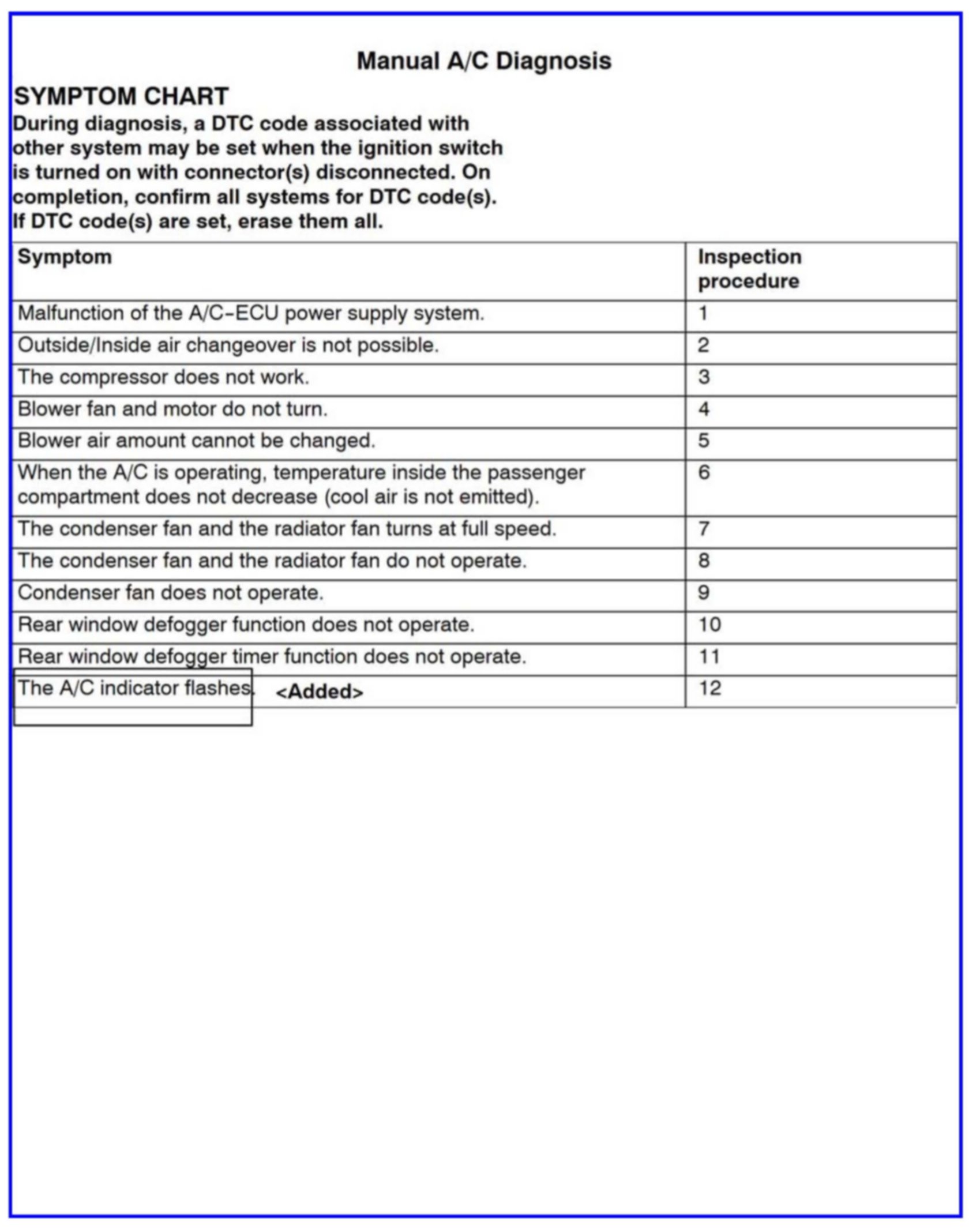

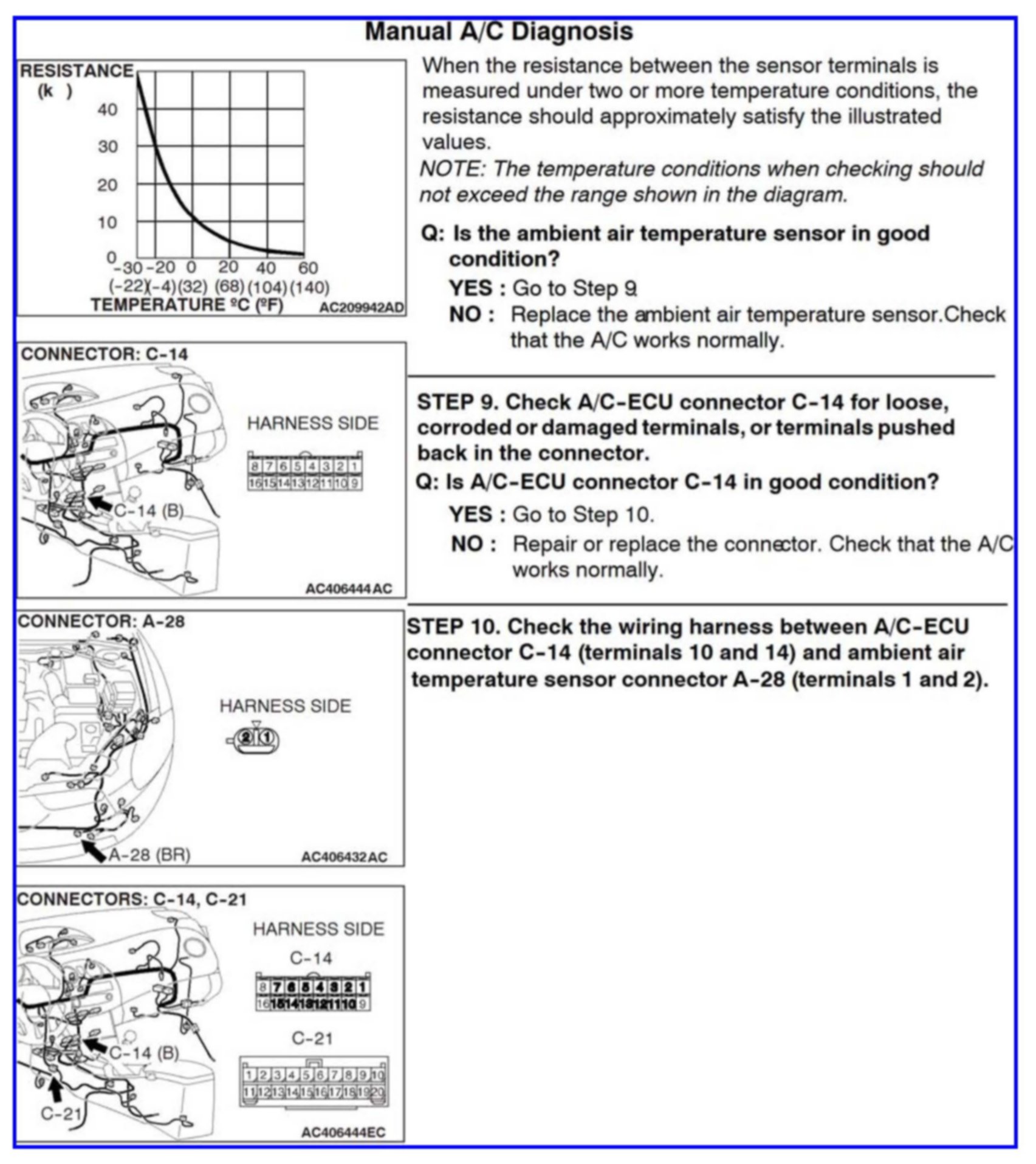

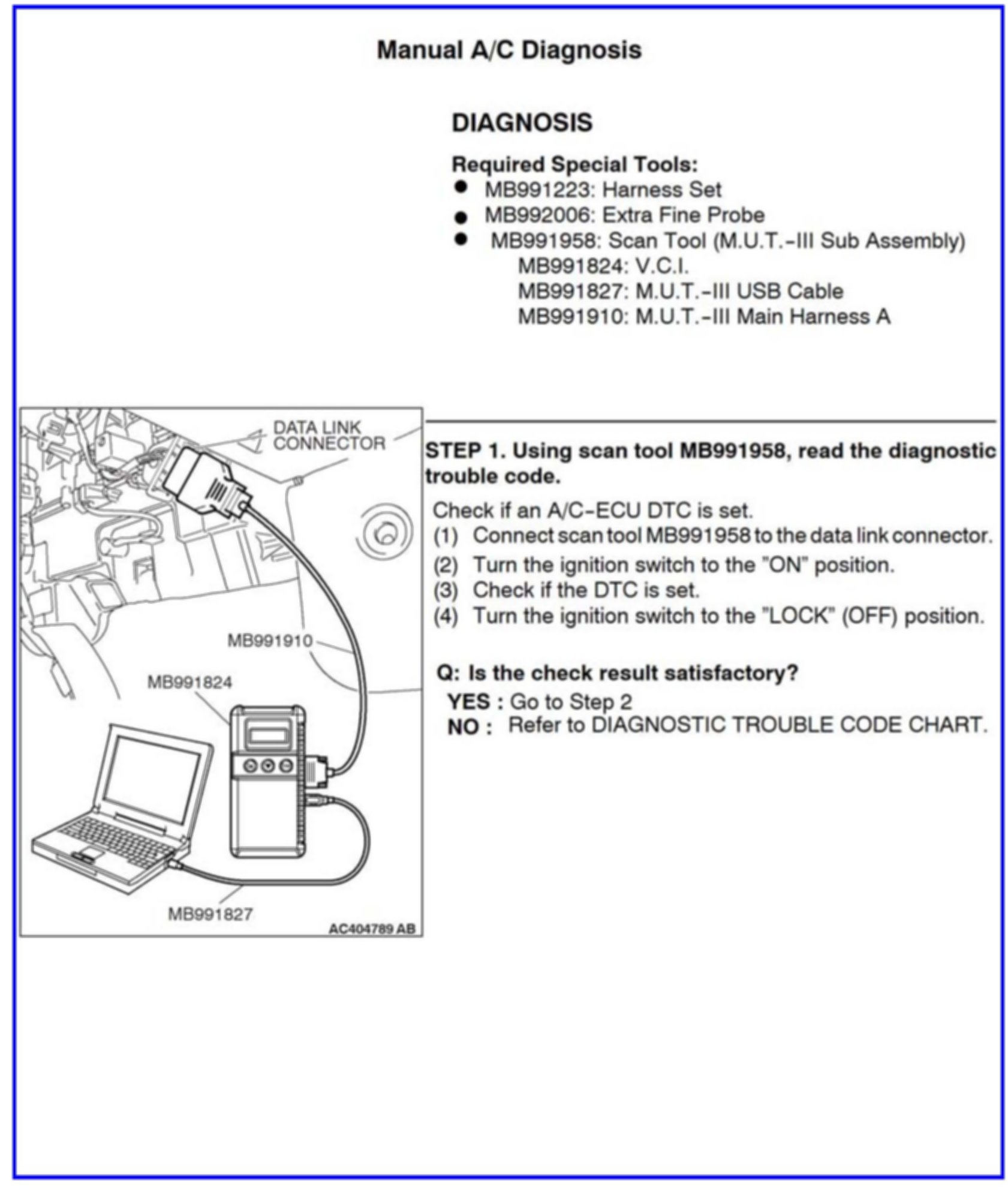

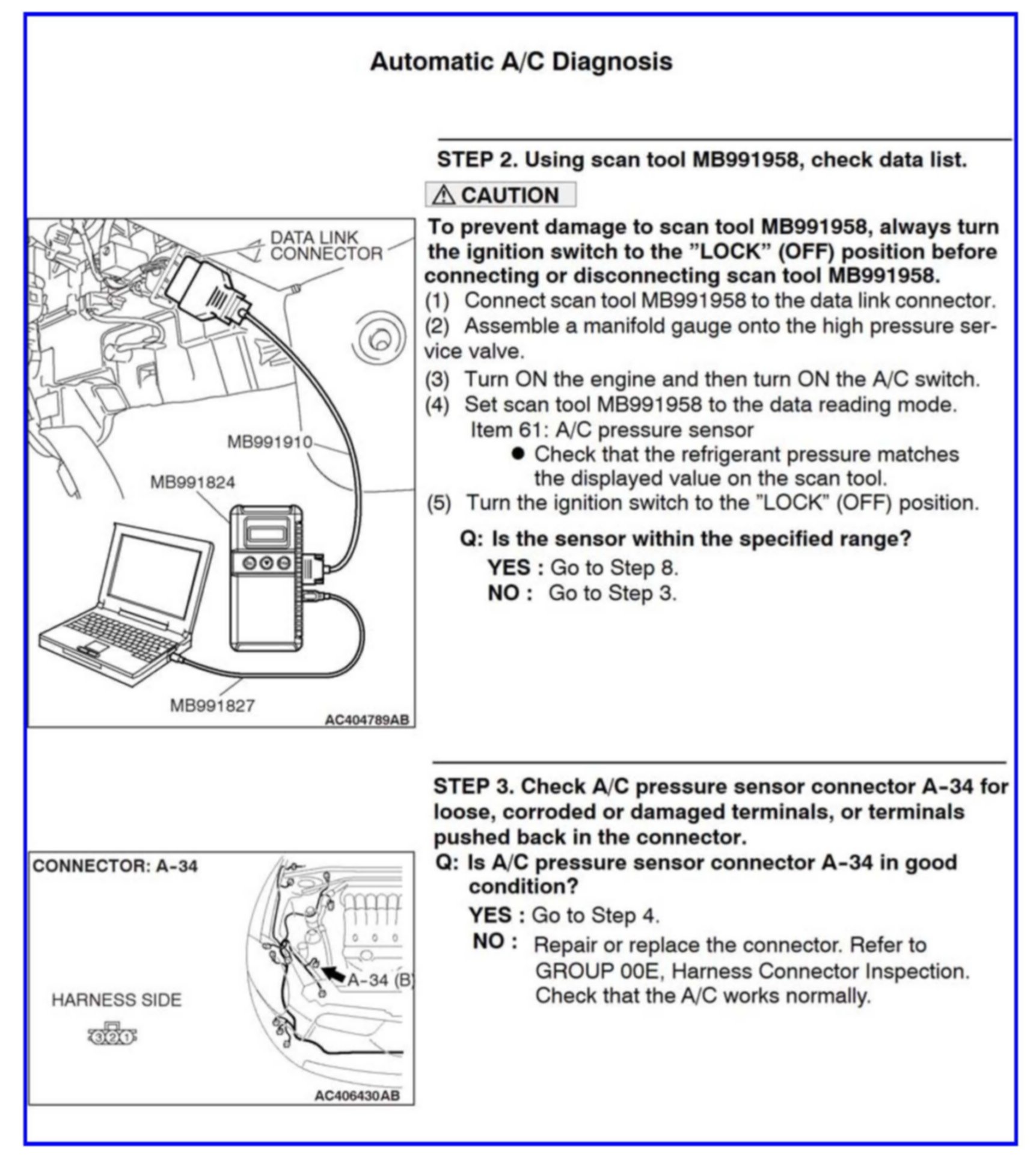

Inspection and troubleshooting procedures for A/C indicator light flashing are missing in the affected service manuals. This bulletin provides inspection and troubleshooting procedures for flashing A/C indicator light, for vehicles equipped with either manual or automatic A/C system.
AFFECTED VEHICLES
2006-2011 Eclipse
2007-2011 Eclipse Spyder
AFFECTED SERVICE MANUALS
2006 Eclipse, pages 55A-98 and 55B-106
2007 Eclipse/Eclipse Spyder, pages 55A-98 and 55B-105
2008 Eclipse/Eclipse Spyder, pages 55A-98 and 55B-105
2009 Eclipse/Eclipse Spyder, pages 55A-98 and 55B-105
2010 Eclipse/Eclipse Spyder, pages 55A-97 and 55B-105
2010 Eclipse/Eclipse Spyder, pages 55A-98 and 55B-105

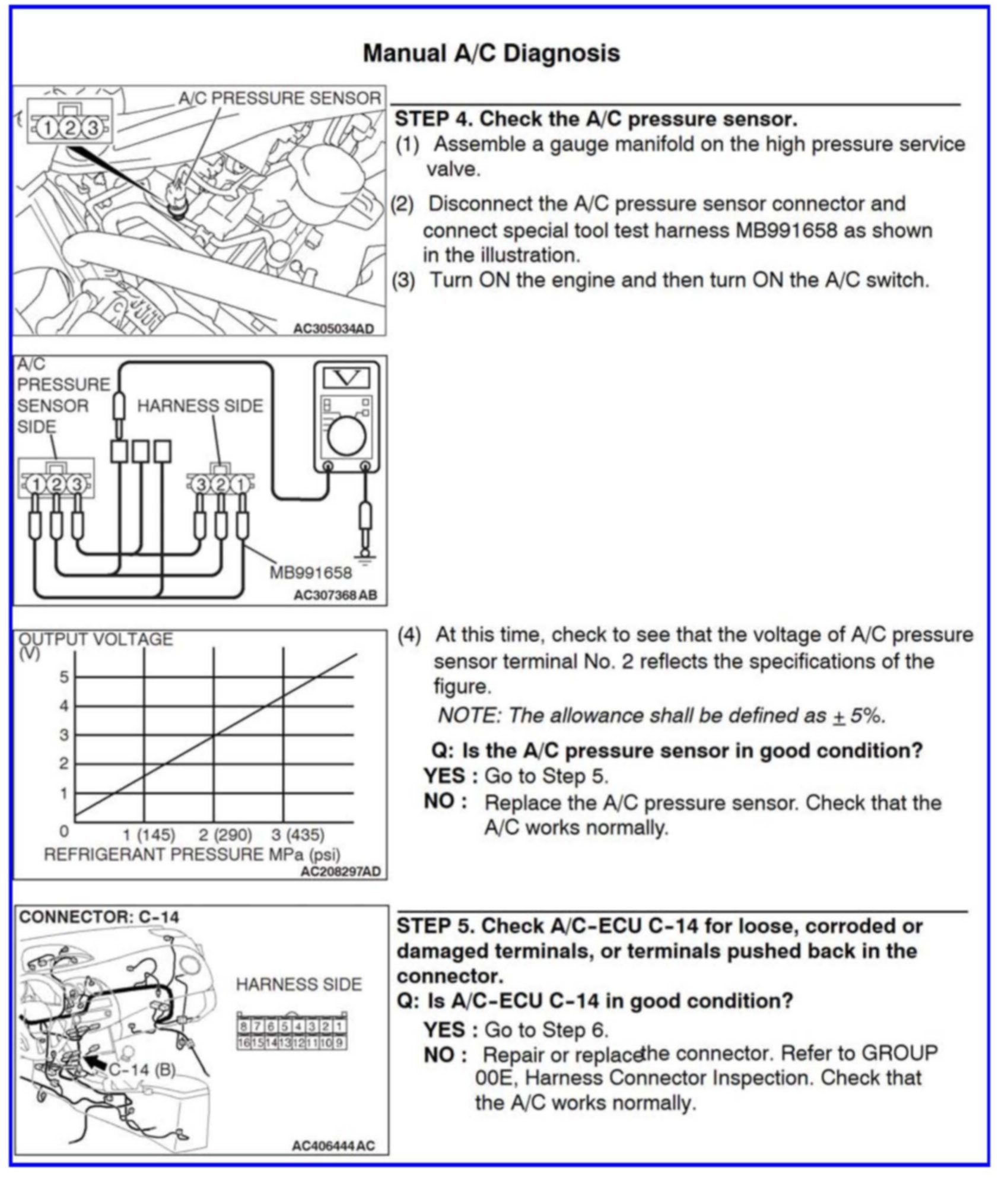

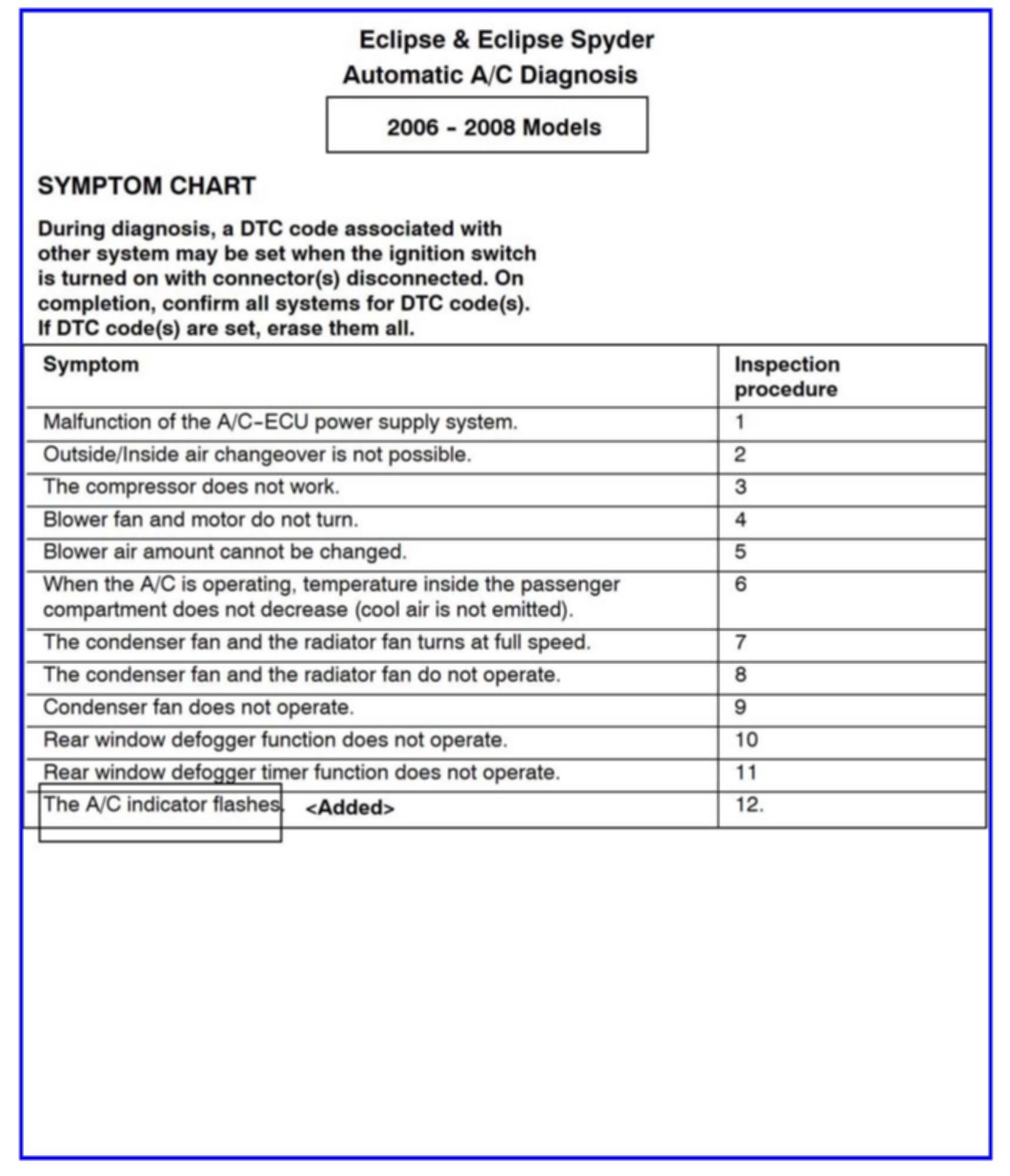

Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
Add the following new information
