Home >> Mitsubishi >> 2011 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> Information Bus >> A/T

A/T

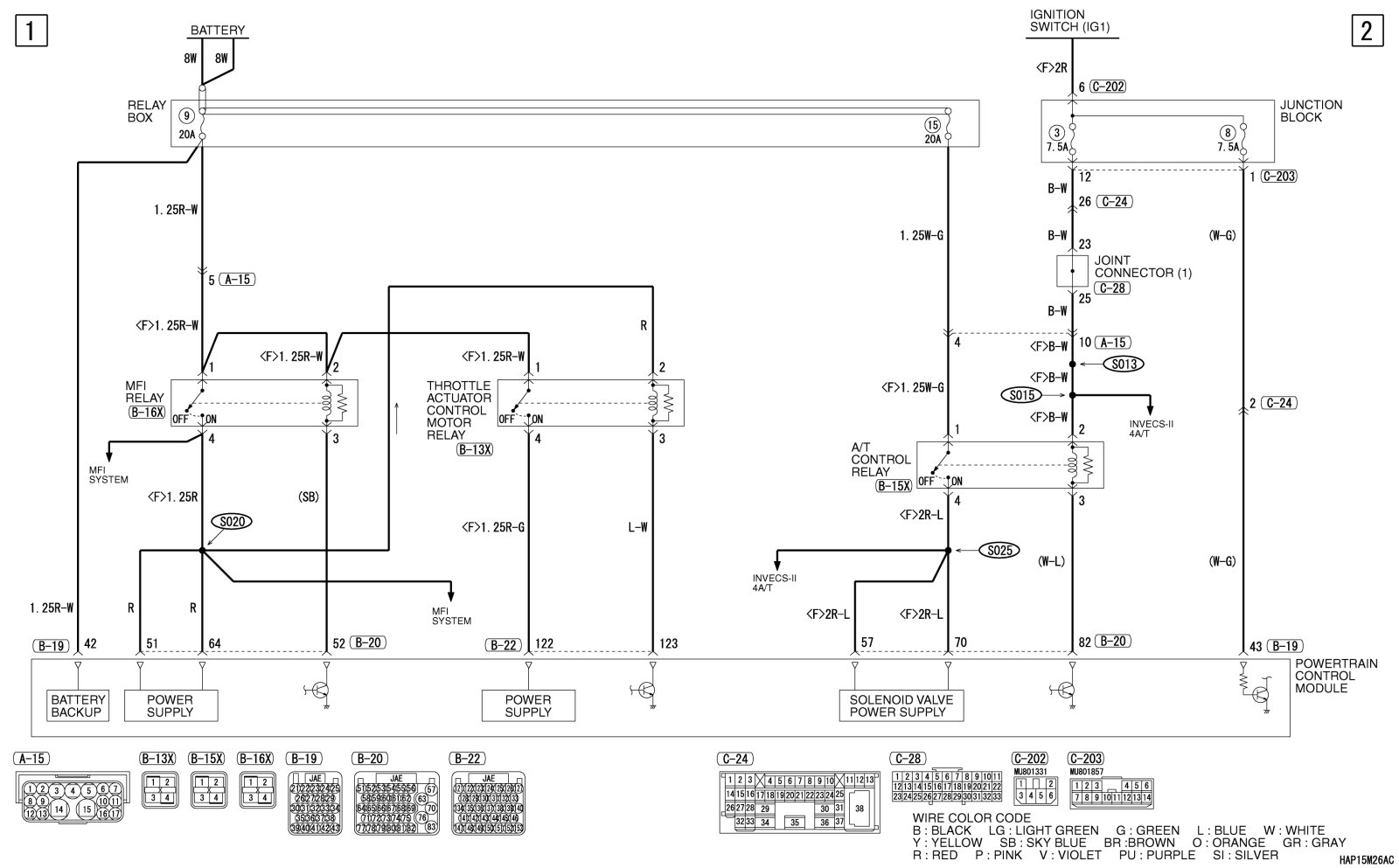

CONTROLLER AREA NETWORK (CAN) [2.4L ENGINE-A/T]
