Home >> Mitsubishi >> 2011 >> Eclipse L4-2.4L (4G69) >> Repair and Diagnosis >> Body and Frame >> Specifications >> Sealant >> Body

Body




SEALANT AND ADHESIVES

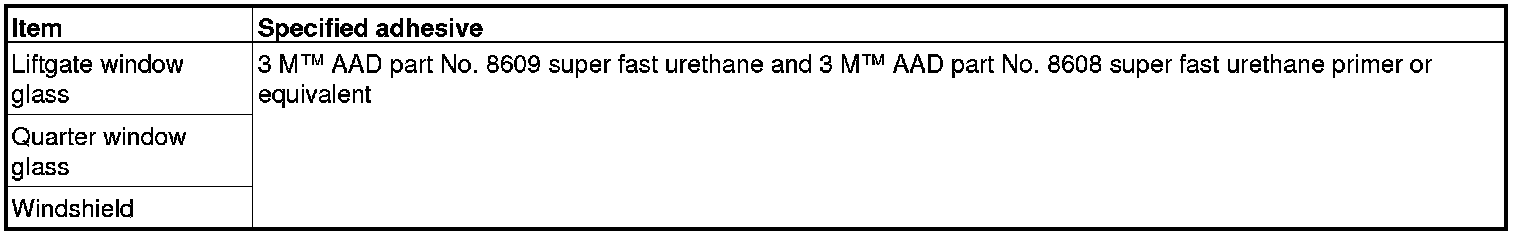

[WINDOW GLASS]

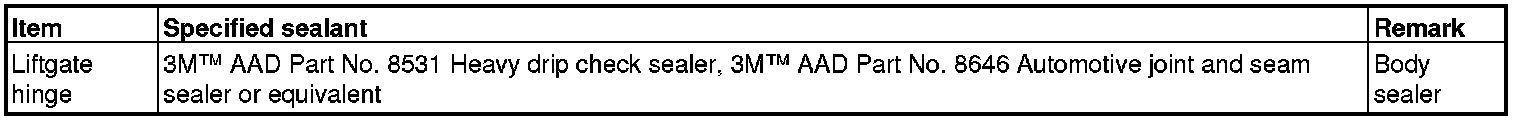

[LIFTGATE]

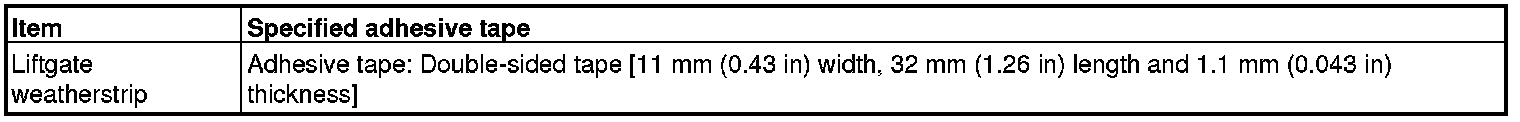

[CONVERTIBLE TOP]
