Liftgate




INSPECTION

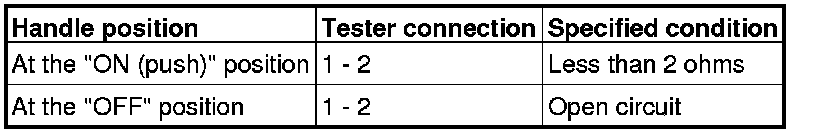

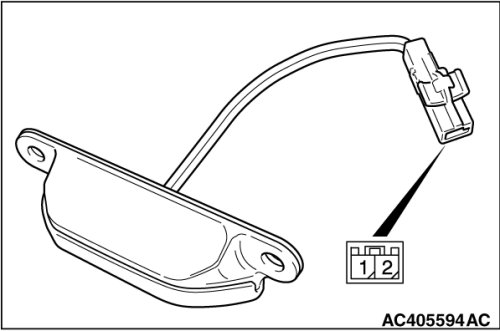

LIFTGATE LOCK RELEASE HANDLE CONTINUITY CHECK

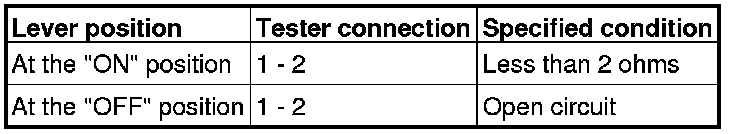

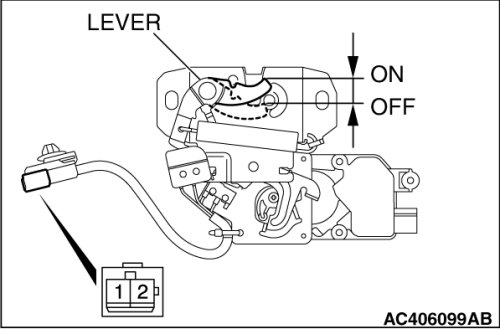

LIFTGATE LATCH CHECK

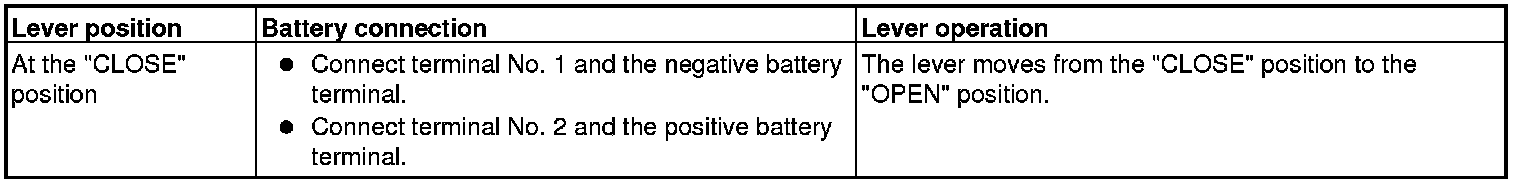

LIFTGATE LOCK ACTUATOR










LIFTGATE LATCH SWITCH
