Shift Interlock: Service and Repair
KEY INTERLOCK AND SHIFT LOCK MECHANISMSREMOVAL AND INSTALLATION

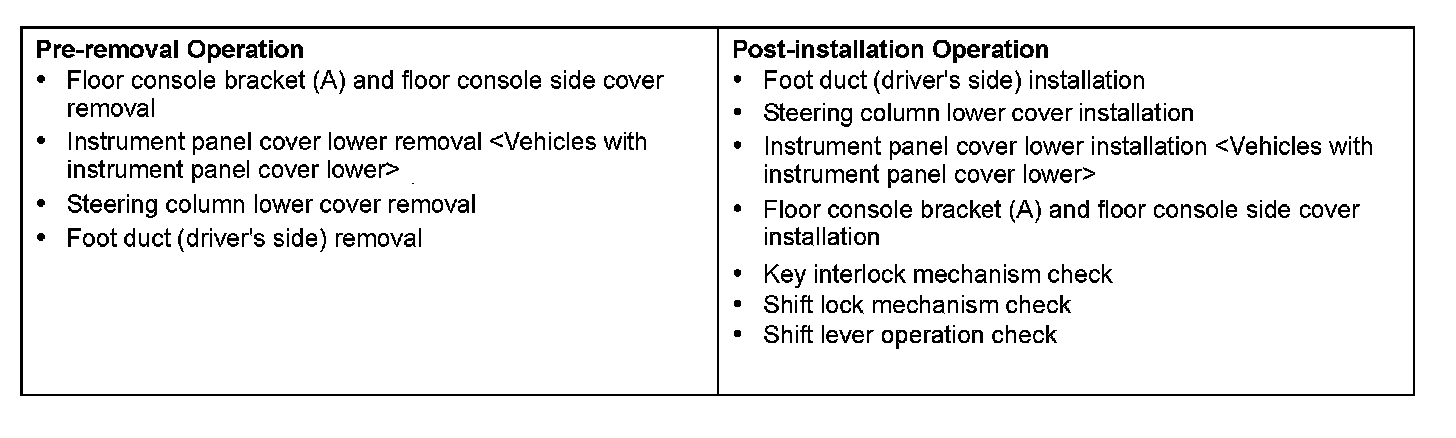

Pre-removal & Post-installation Operation:
Removal Steps 1-5:
REMOVAL SERVICE POINT
[A] KEY INTERLOCK CABLE (STEERING SIDE) REMOVAL
Turn the ignition switch to the ACC position and then pull the key interlock cable out from the ignition key cylinder.
INSTALLATION SERVICE POINTS
[A] KEY INTERLOCK CABLE (STEERING SIDE) INSTALLATION
Turn the ignition switch to the ACC position and then install the key interlock cable to the ignition key cylinder.
[B] KEY INTERLOCK CABLE (SHIFT LEVER SIDE) INSTALLATION
CAUTION
Leave the ignition switch in the LOCK (OFF) position until the key interlock cable installation is completed.
1. Move the shift lever to the P position, and turn the ignition switch to the LOCK (OFF) position.
2. Install the tip of key interlock cable to the lock cam pin of shift lever assembly, using a caution not to twist the inner cable.
3. Install the adjuster case with its lock guide pulled up (unlocked).

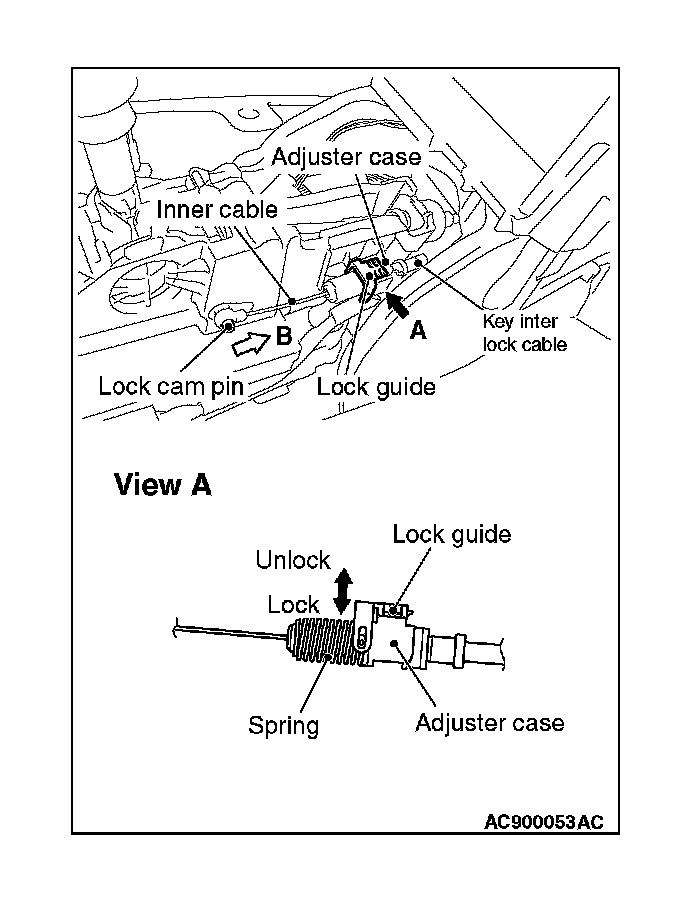

4. With the lock cam pin pushed in the direction B as shown in the figure to remove the slack from the key interlock cable, securely lower the lock guide and lock it.
NOTE: The lock position of the key interlock cable is automatically adjusted by a spring.
