Power Steering Pump: Service and Repair

POWER STEERING OIL PUMP ASSEMBLY

REMOVAL AND INSTALLATION

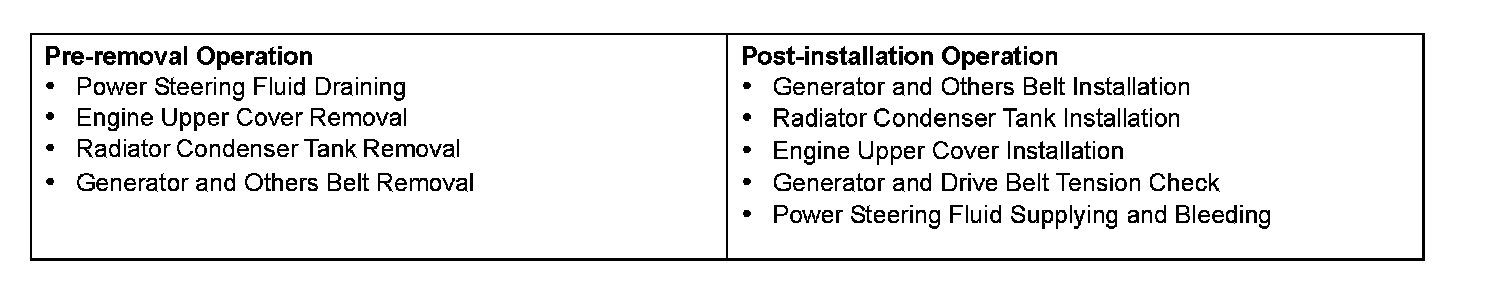

Pre-removal & Post-installation Operation:

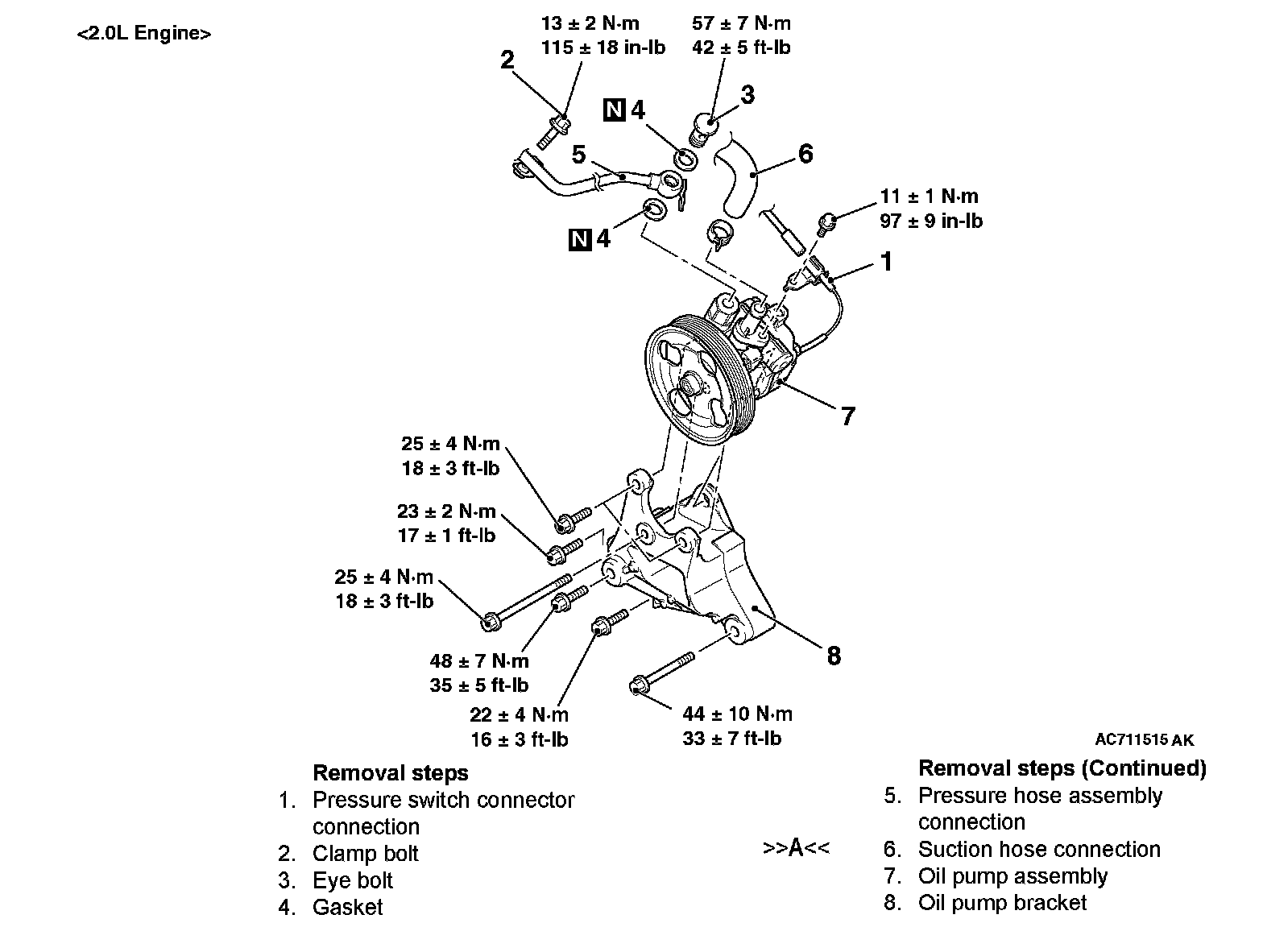

Removal Steps 1-8:

Removal Steps 1-9:

INSTALLATION SERVICE POINT

[A] SUCTION HOSE CONNECTION

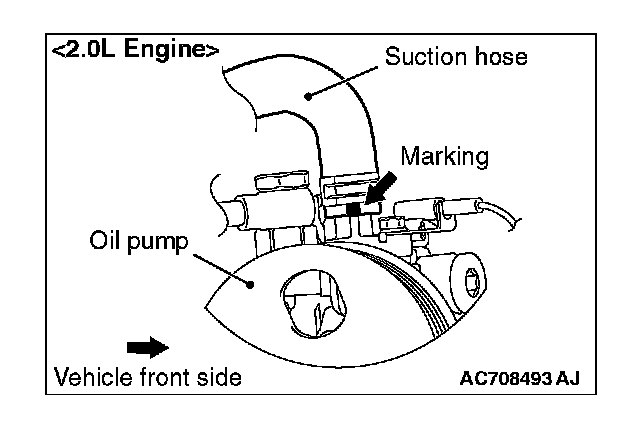

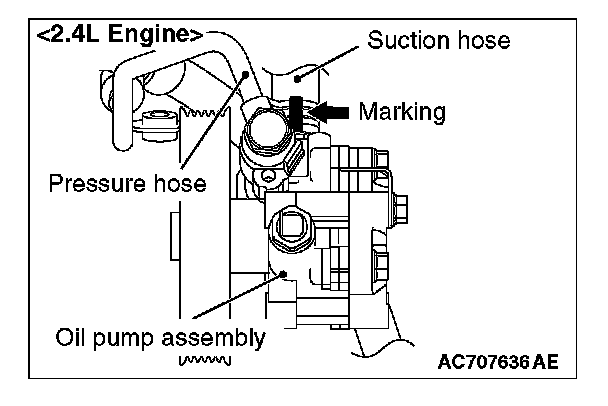

Align the suction hose marking within the area shown in the figure and connect the suction hose.
