Removal and Replacement

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

[2.0L ENGINE]

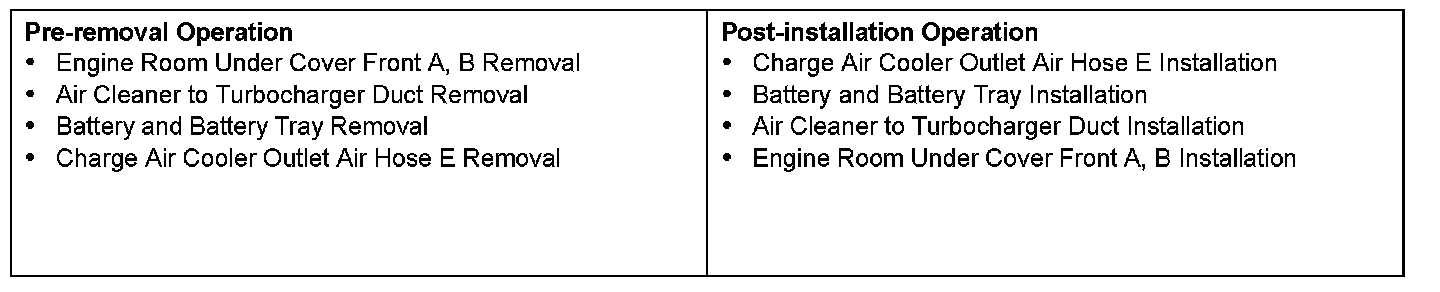

Pre-removal & Post-installation Operation:

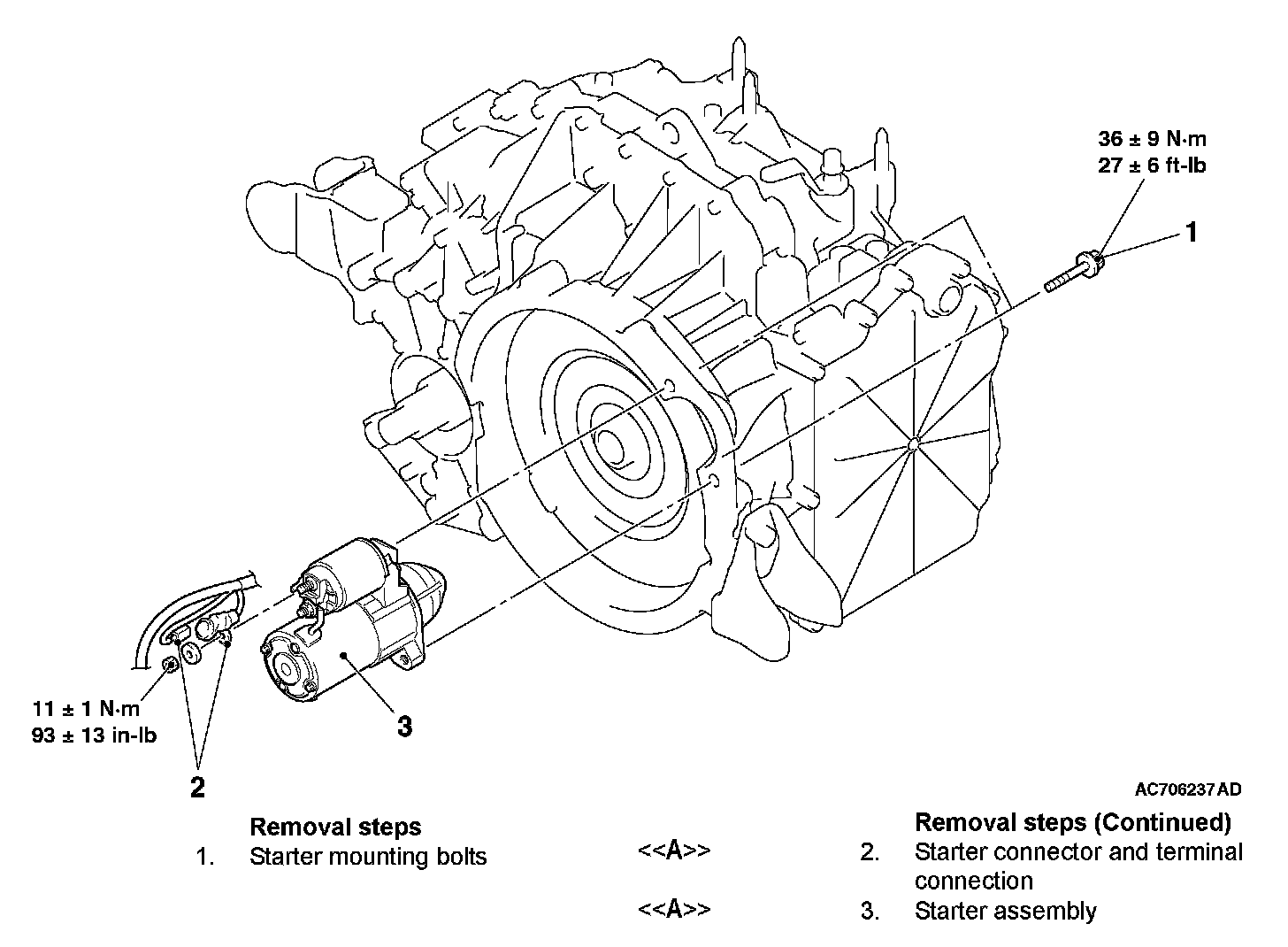

Removal Steps 1-3:

REMOVAL SERVICE POINT

]]A[[ STARTER CONNECTOR AND TERMINAL/ STARTER ASSEMBLY REMOVAL

1. Slide the starter assembly, and remove the starter connector and terminal.
2. Remove the starter assembly from the lower front of the engine.
