Home >> Mitsubishi >> 2010 >> Lancer Sportback Ralliart L4-2.0L Turbo (4B11T) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Standard Bolt Tightening Torque

Standard Bolt Tightening Torque

STANDARD TIGHTENING TORQUE

STANDARD BOLT AND NUT TIGHTENING TORQUE

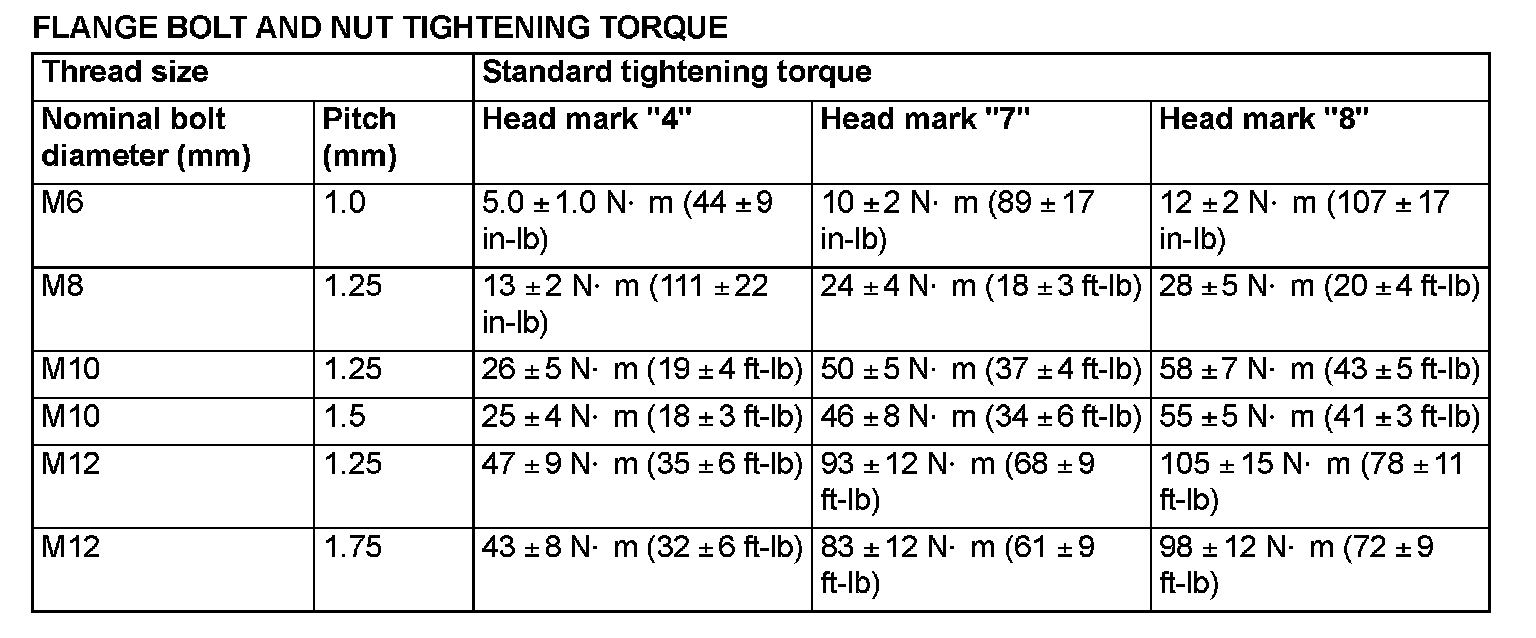

FLANGE BOLT AND NUT TIGHTENING TORQUE
