System Specifications

CYLINDER HEAD BOLTS





Tightening torque 35 ± 2 Nm (26 ± 1 ft. lb.)
Tighten 90°
Tighten additionally 90°

Replace the cylinder head bolt and washer with new ones

INTAKE MANIFOLD

Intake manifold 20 ± 2 Nm (15 ± 1 ft lb)

CAMSHAFT BEARING CAP





Tightening torque 12 ± 1 Nm (107 ± 8 in. lb.)

Tighten in two or three steps

Front camshaft bearing cap

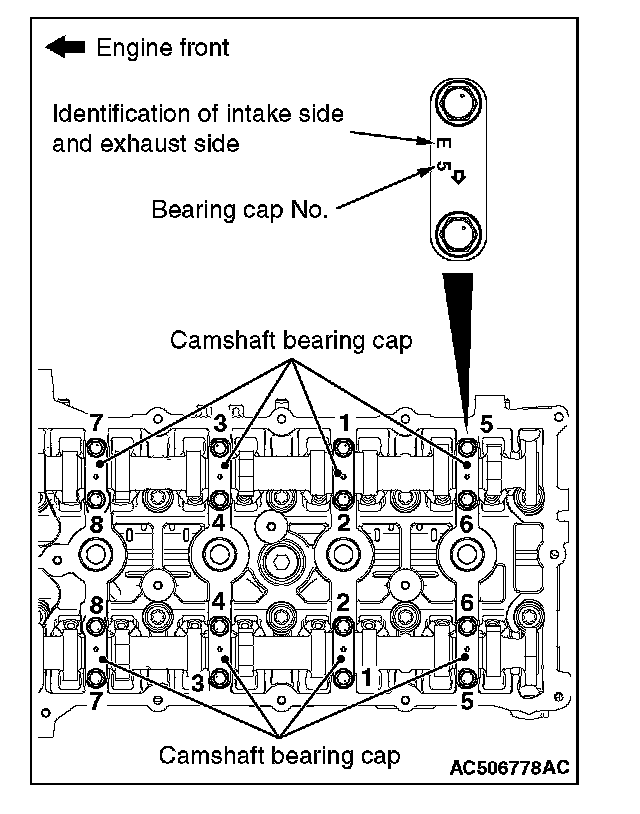

Tighten in the order of figure 1 17 ± 3 Nm (13 ± 2 ft. lb.)

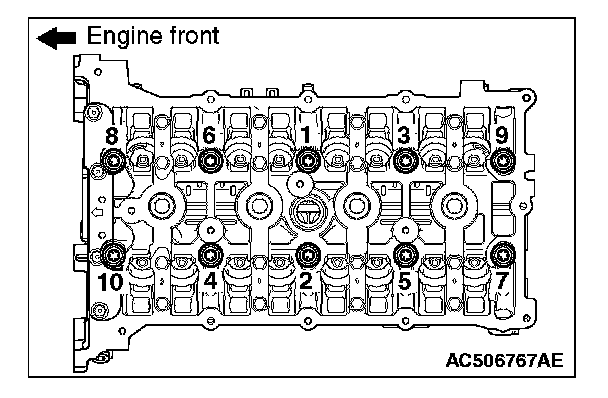

Tighten in the order of figure 2 30 ± 2 Nm (22 ± 1 ft. lb.)

CAMSHAFT SPROCKET BOLT

Camshaft sprocket bolt 85 ± 5 Nm (63 ± 3 ft. lb.)

EXHAUST MANIFOLD

Exhaust manifold 49 ± 5 Nm (36 ± 3 ft lb)
