Front Seat Belt

SEAT BELT

FRONT SEAT BELT

REMOVAL AND INSTALLATION

CAUTION: SRS: Before removing and installing the seat belts with pre-tensioner, refer to SRS - SRS Service Precautions and Seat Belt with Pre-tensioner

Pre-removal And Post-installation Operation:

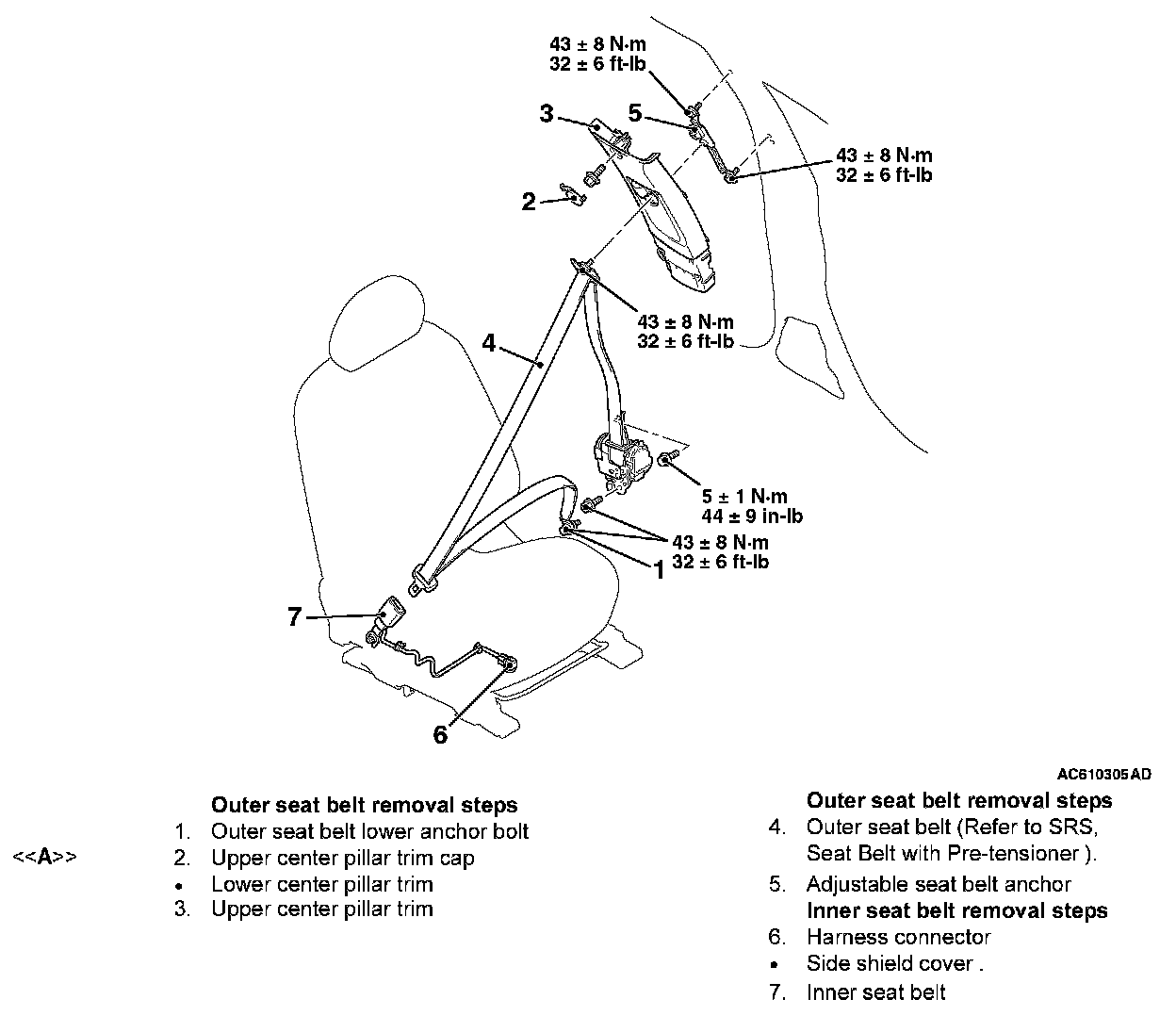

Removal Steps 1-7:

REMOVAL SERVICE POINT

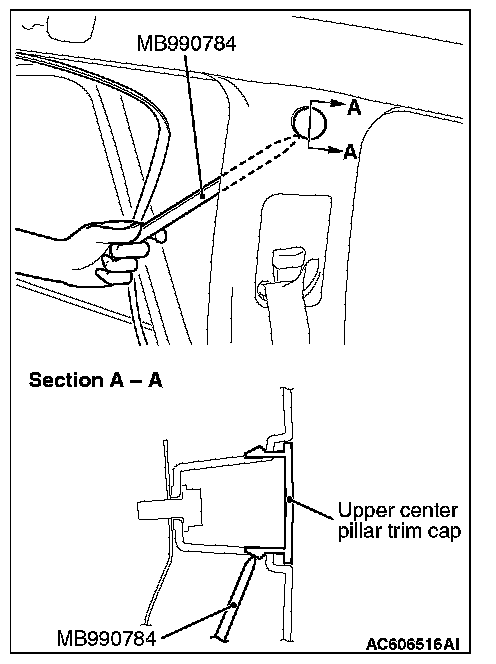

[[A]] UPPER CENTER PILLAR TRIM CAP REMOVAL







Remove the opening trim. Remove the trim cap by inserting the special tool ornament remover (MB990784) between the trim and body as shown in the illustration.
