Data List Reference Table
DATA LIST REFERENCE TABLEDATA LIST OUTPUT

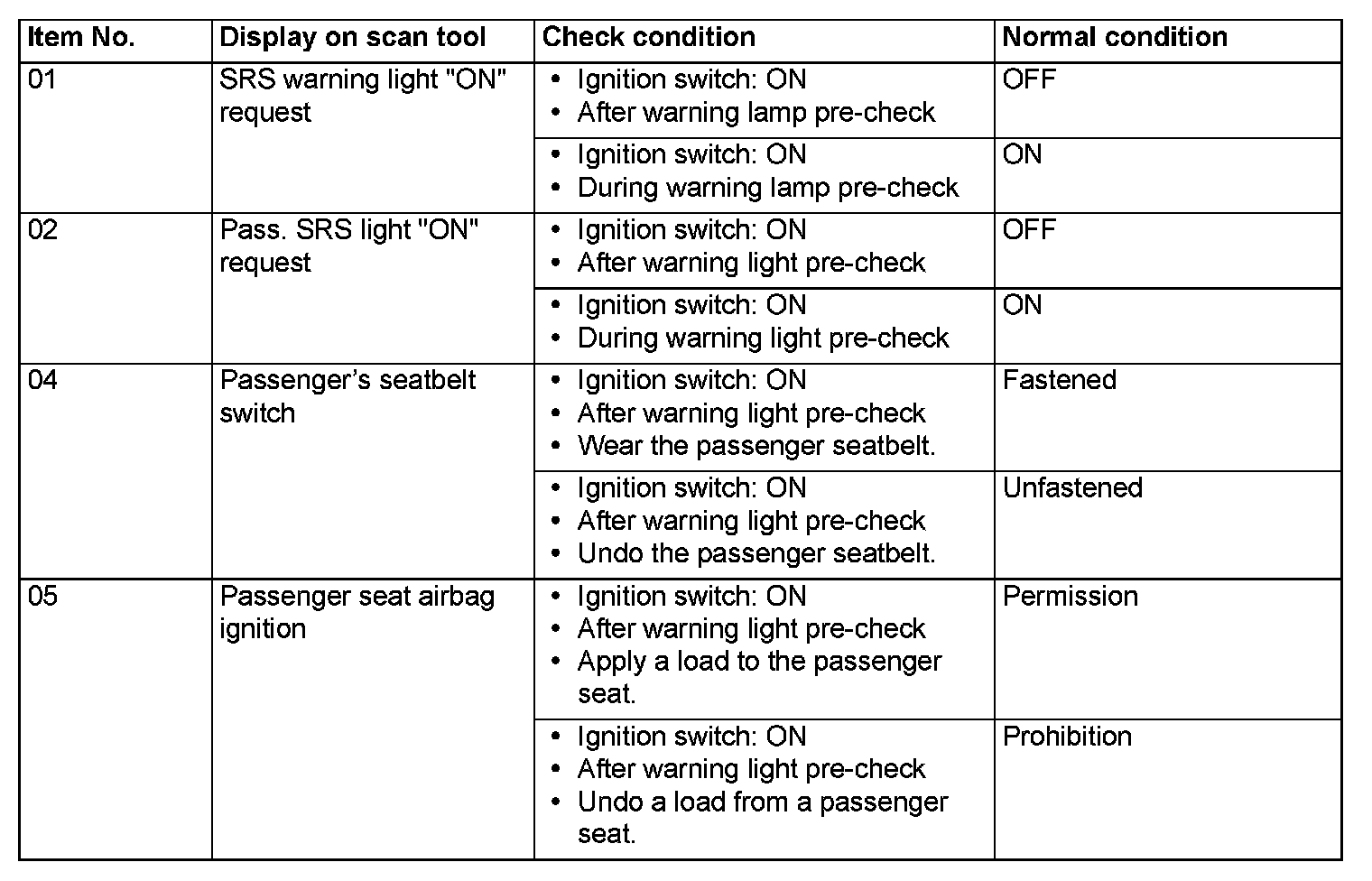

The following items can be read by the scan tool from the SRS-ECU input data.

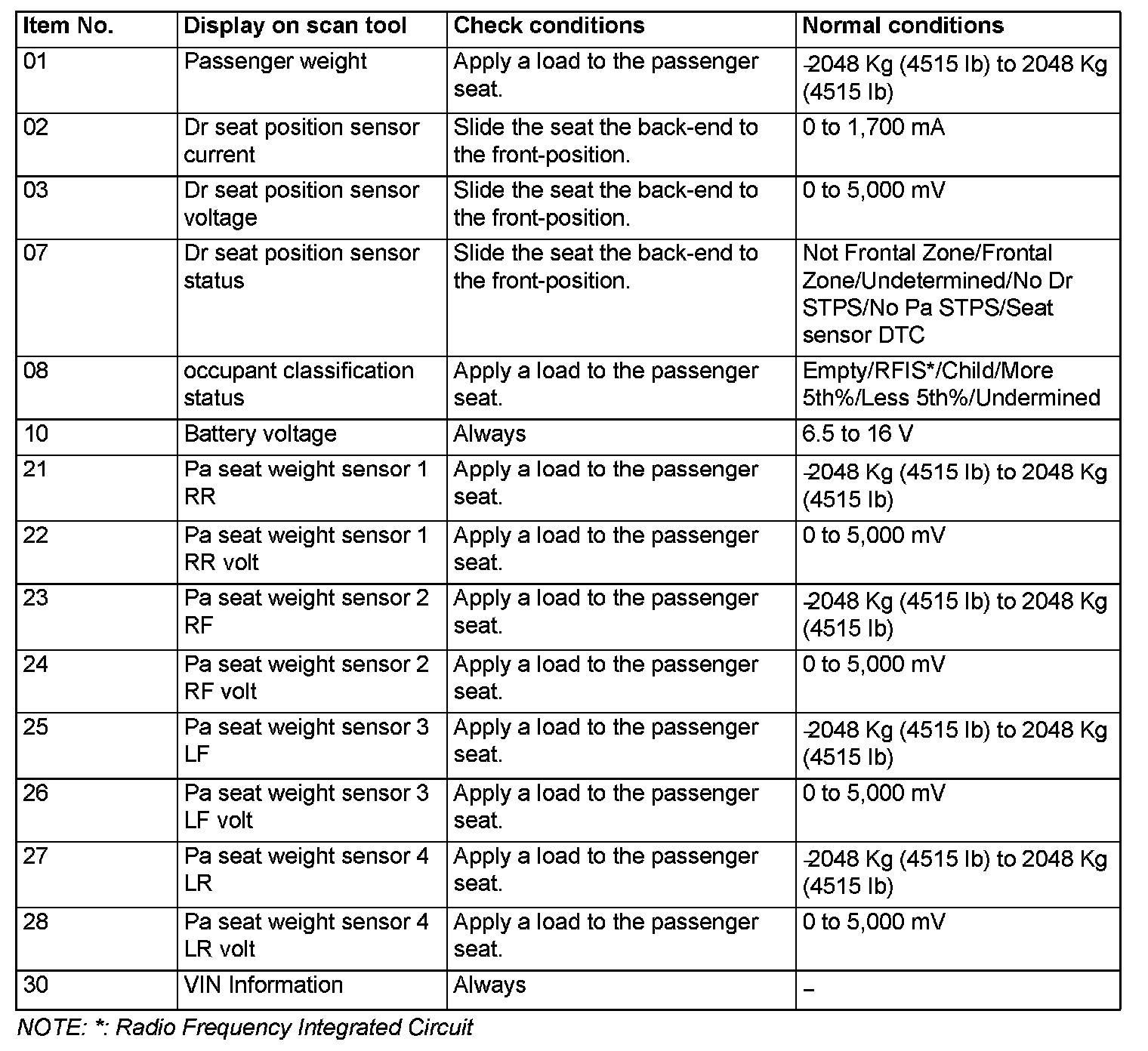

The following items can be read by the scan tool from the occupant classification-ECU input data.
DATA LIST OUTPUT
The following items can be read by the scan tool from the SRS-ECU input data.
The following items can be read by the scan tool from the occupant classification-ECU input data.
