Side-Airbag Modules

INSPECTION

DANGER: Never attempt to measure the circuit resistance of the air bag module (squib), even if you are using the specified tester. If the circuit resistance is measured with a tester, accidental air bag deployment will result, and possible serious personal injury.

WARNING: If any improper part is found during the following inspection, replace the front seatback pad and frame assembly [Sports seat] or front seatback [RECARO seat] with a new one. Dispose of the old one according to the specified procedure.

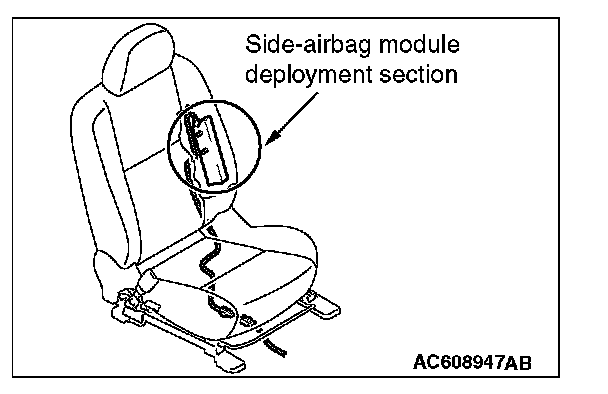

1. Check the air bag module deployment section for dents or deformation.
2. Check the connector for damage, the terminals for deformation, and the harness for binding.
