Powertrain Management: Locations

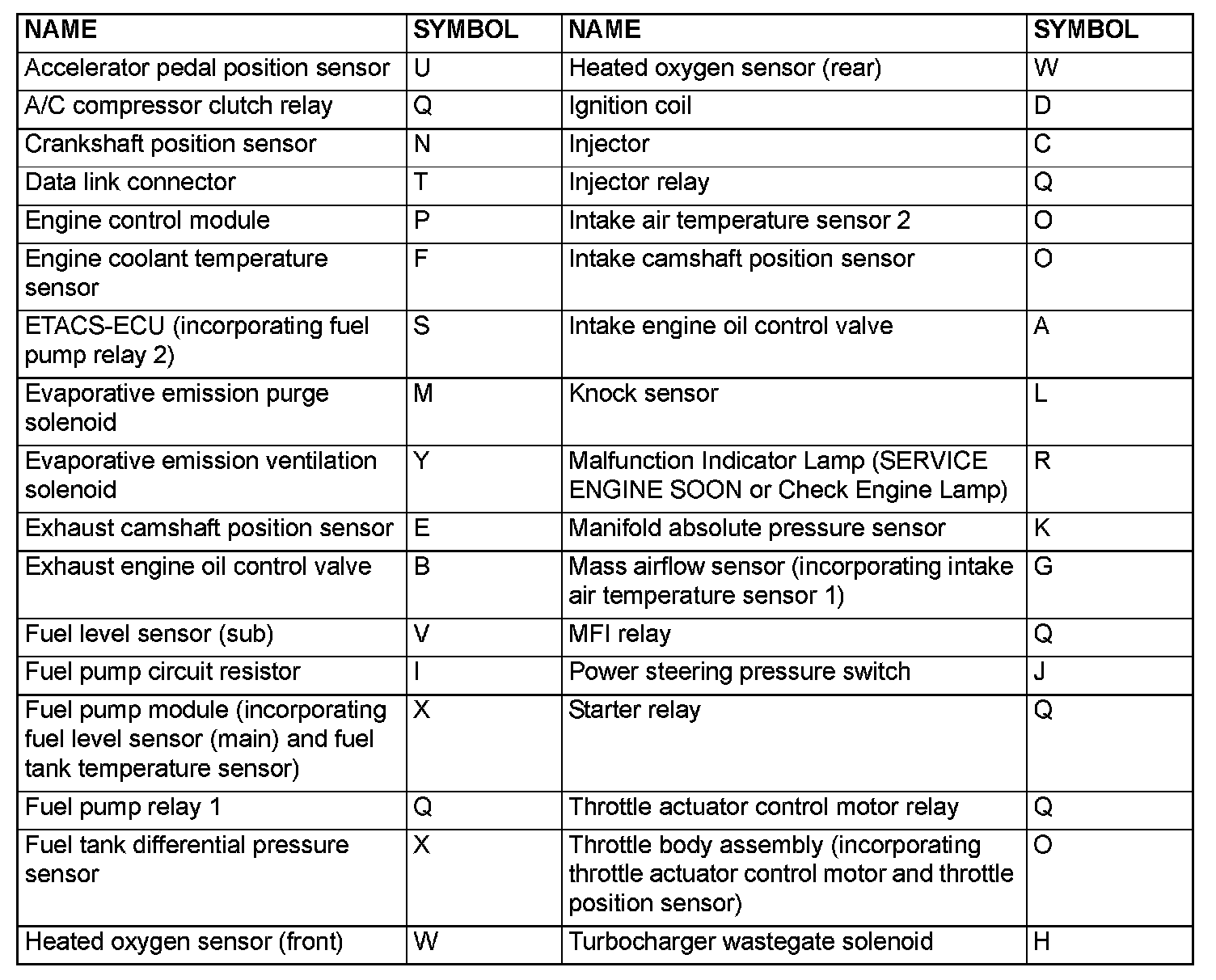

COMPONENT LOCATION

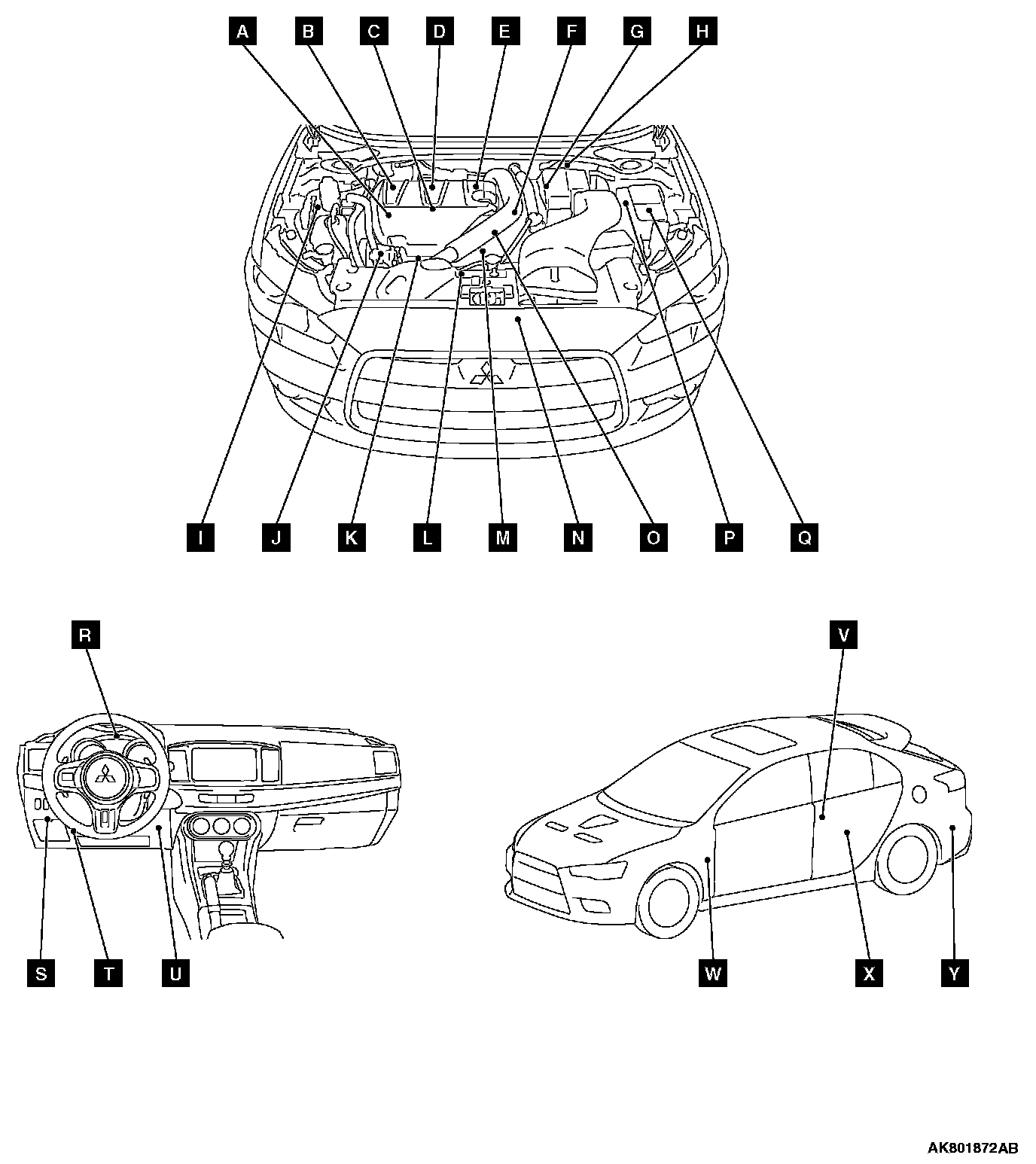

Overall View:

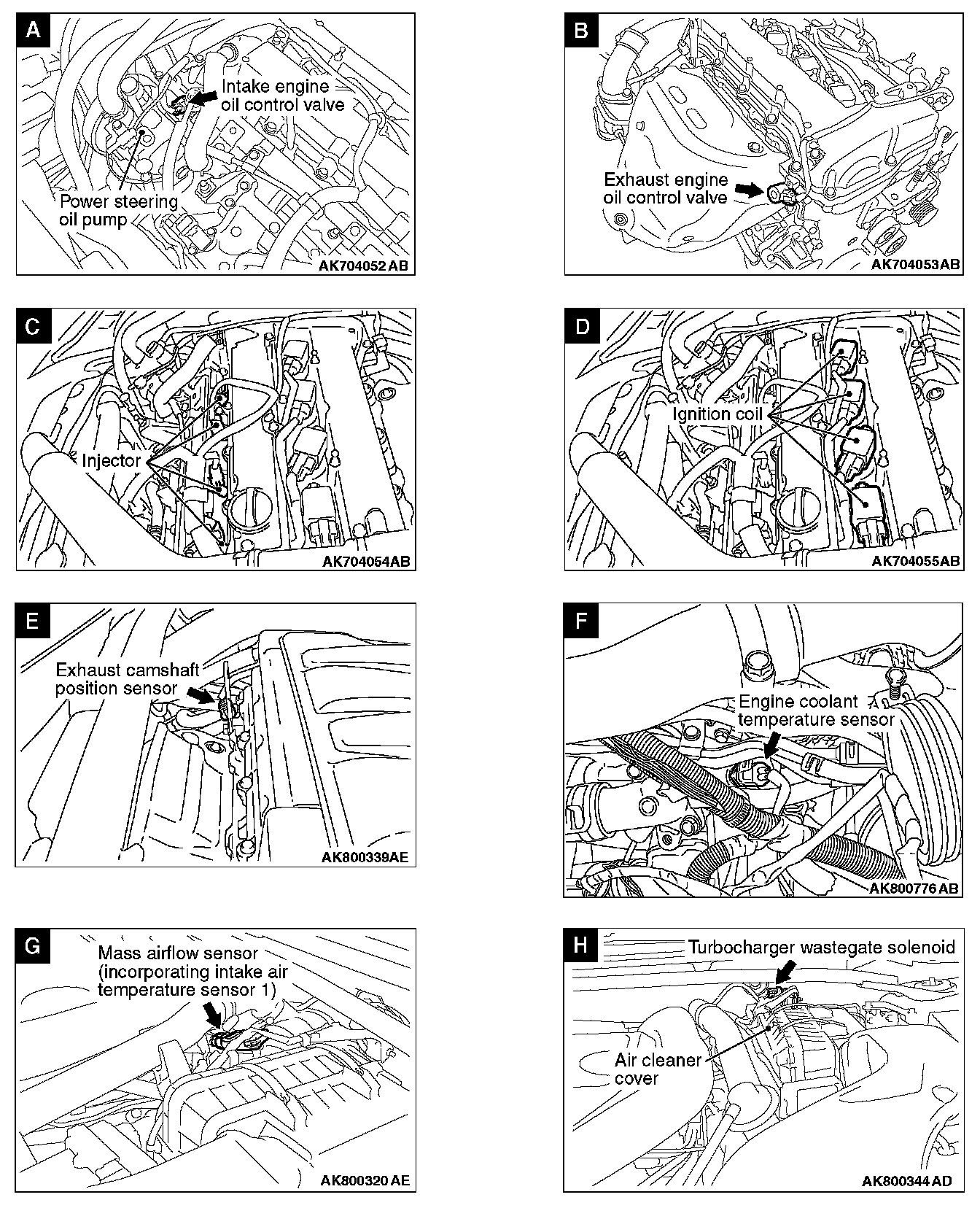

View A-H:

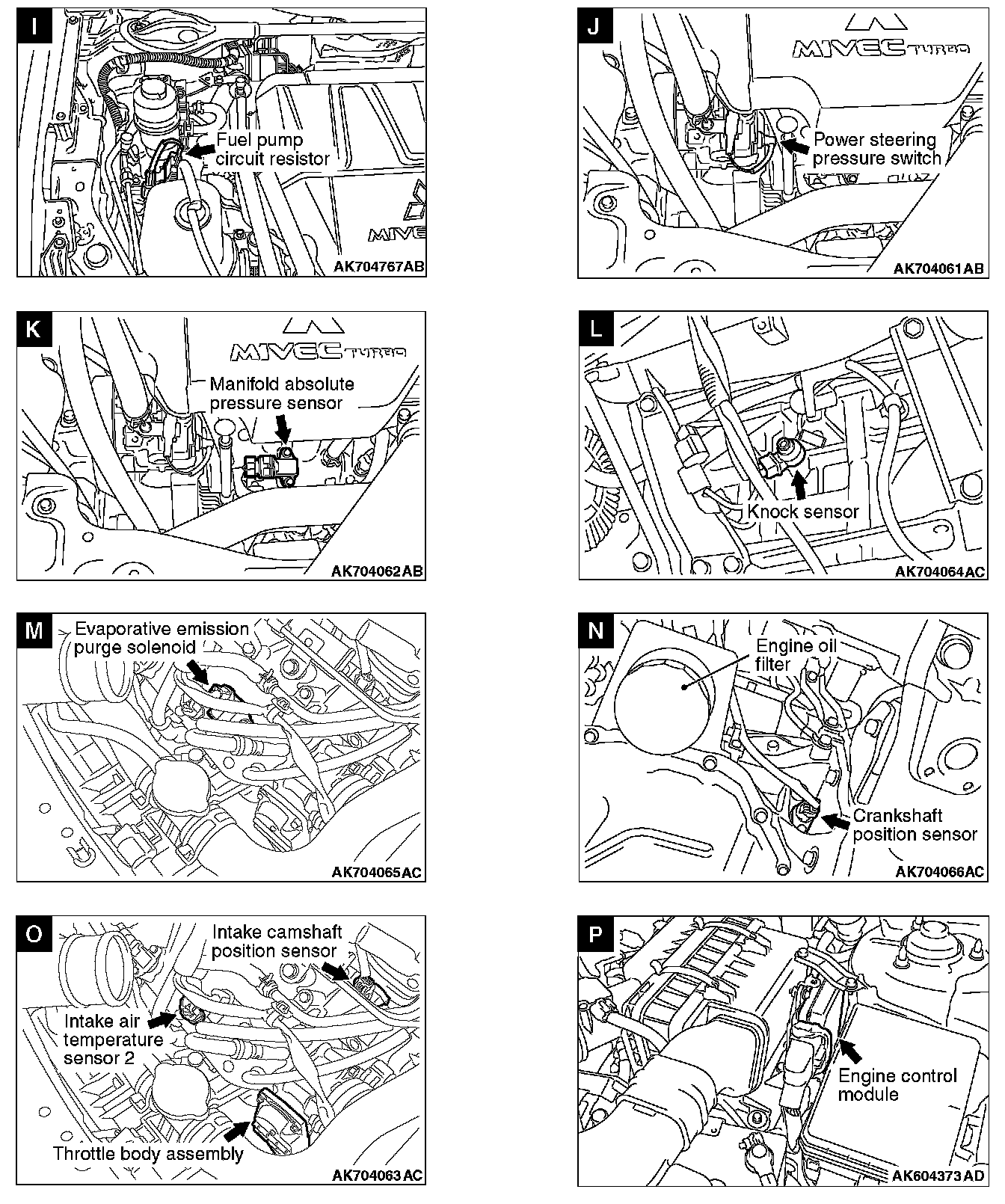

View I-P:




View Q-V:

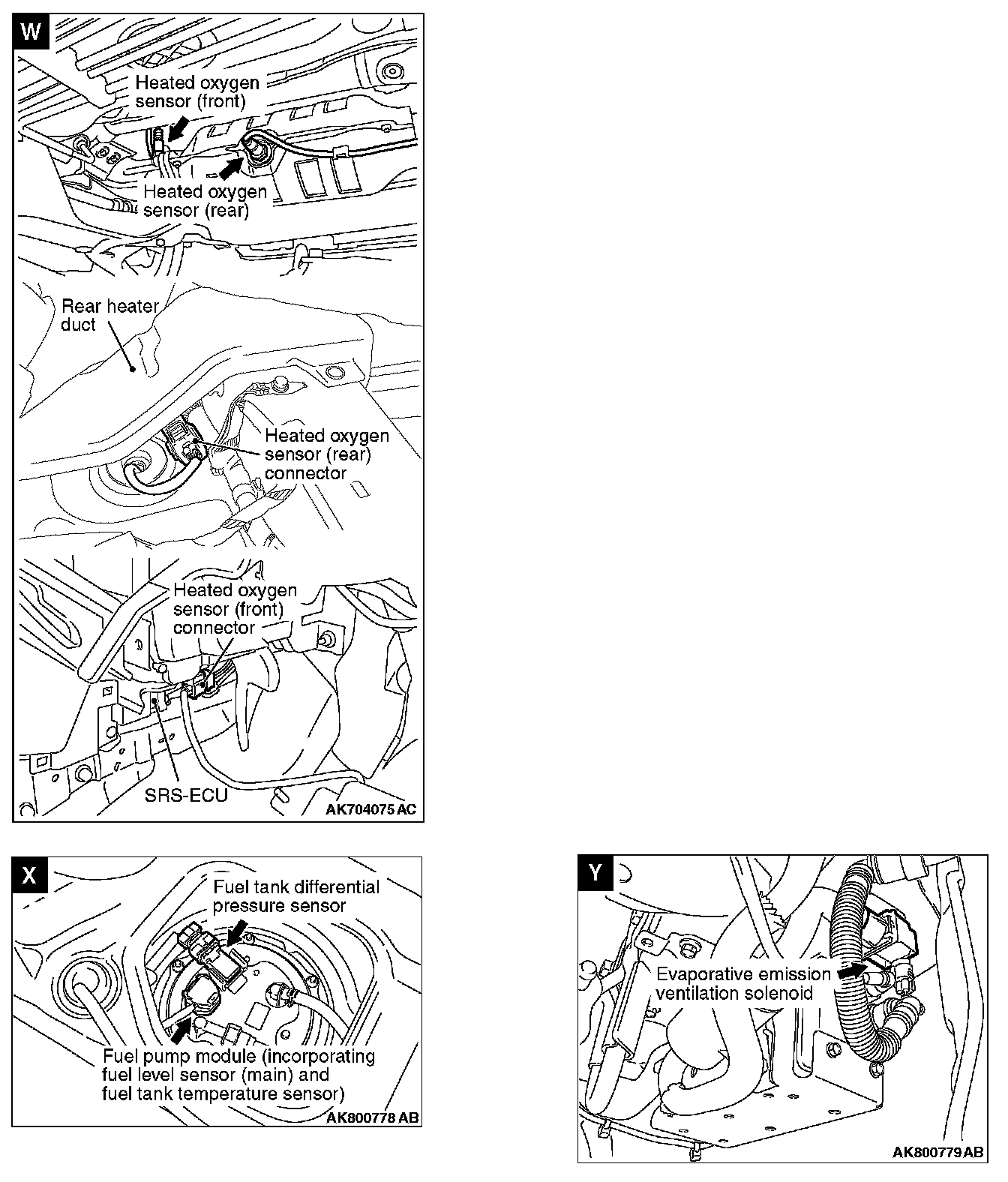

View W-Y:
