Overhaul

FUEL TANK [2.0L ENGINE]

DISASSEMBLY AND ASSEMBLY

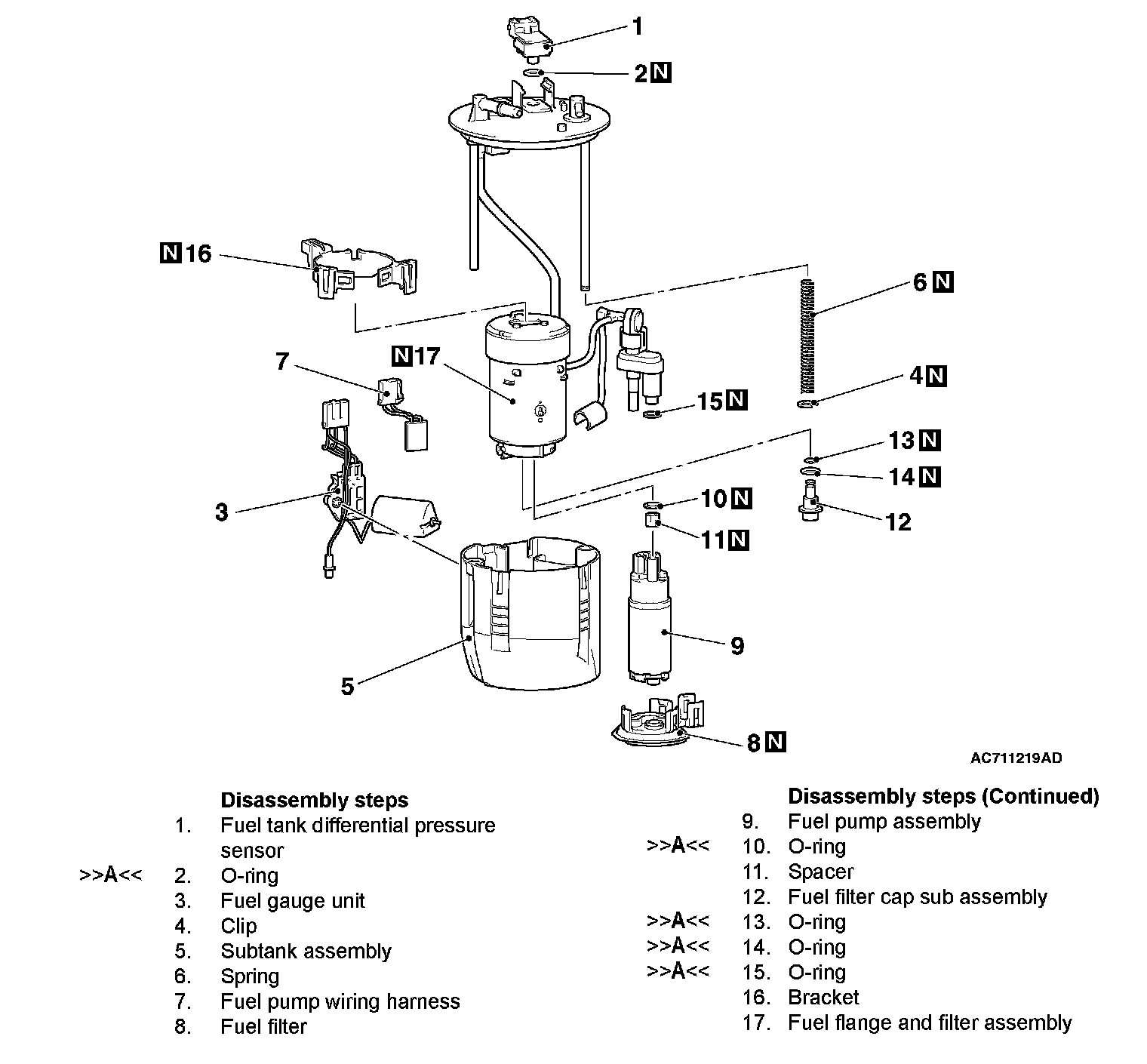

[FUEL PUMP MODULE]

NOTE: For installation and removal, refer to Fuel Pump Module Replacement in On-vehicle Service.

Removal Steps 1-17:

ASSEMBLY SERVICE POINT

]]A[[ O-RING INSTALLATION

To avoid twisting and damage, apply gasoline before installation of the O-ring.
