Rear Axle - AWD

HUB BOLT REPLACEMENT

Required Special Tools:
^ MB990767: Front Hub and Flange Yoke Holder
^ MB991618: Hub Bolt Remover

1. Remove the caliper assembly and the brake disk. Retain the caliper assembly with a wire and the like to prevent from falling.

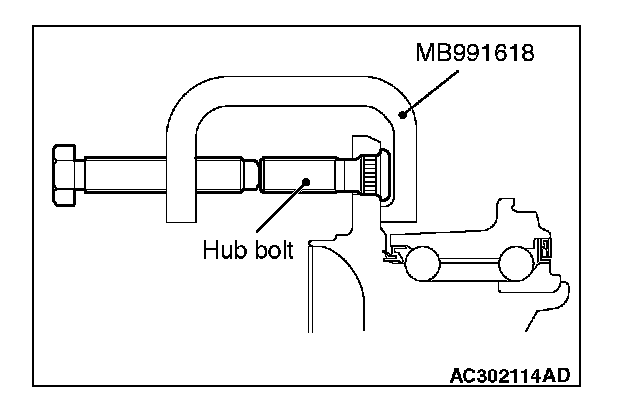

2. Use special tool MB991618 to remove the hub bolt.

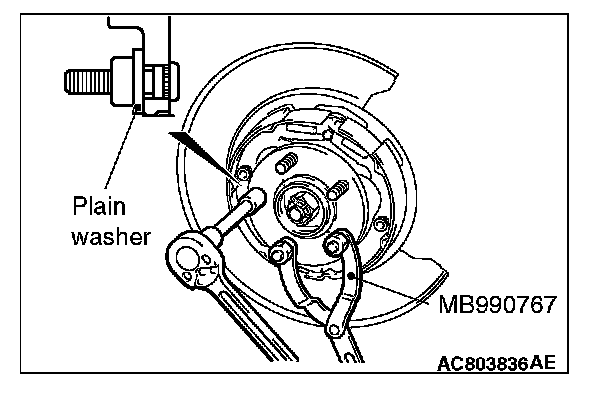

3. After fixing the hub using special tool MB990767, install the plain washer to the new hub bolt, and tighten the bolt with a nut.
4. Install the brake disk, caliper assembly and tighten the caliper assembly mounting bolts to the specified torque.
