Compressor Clutch: Service and Repair

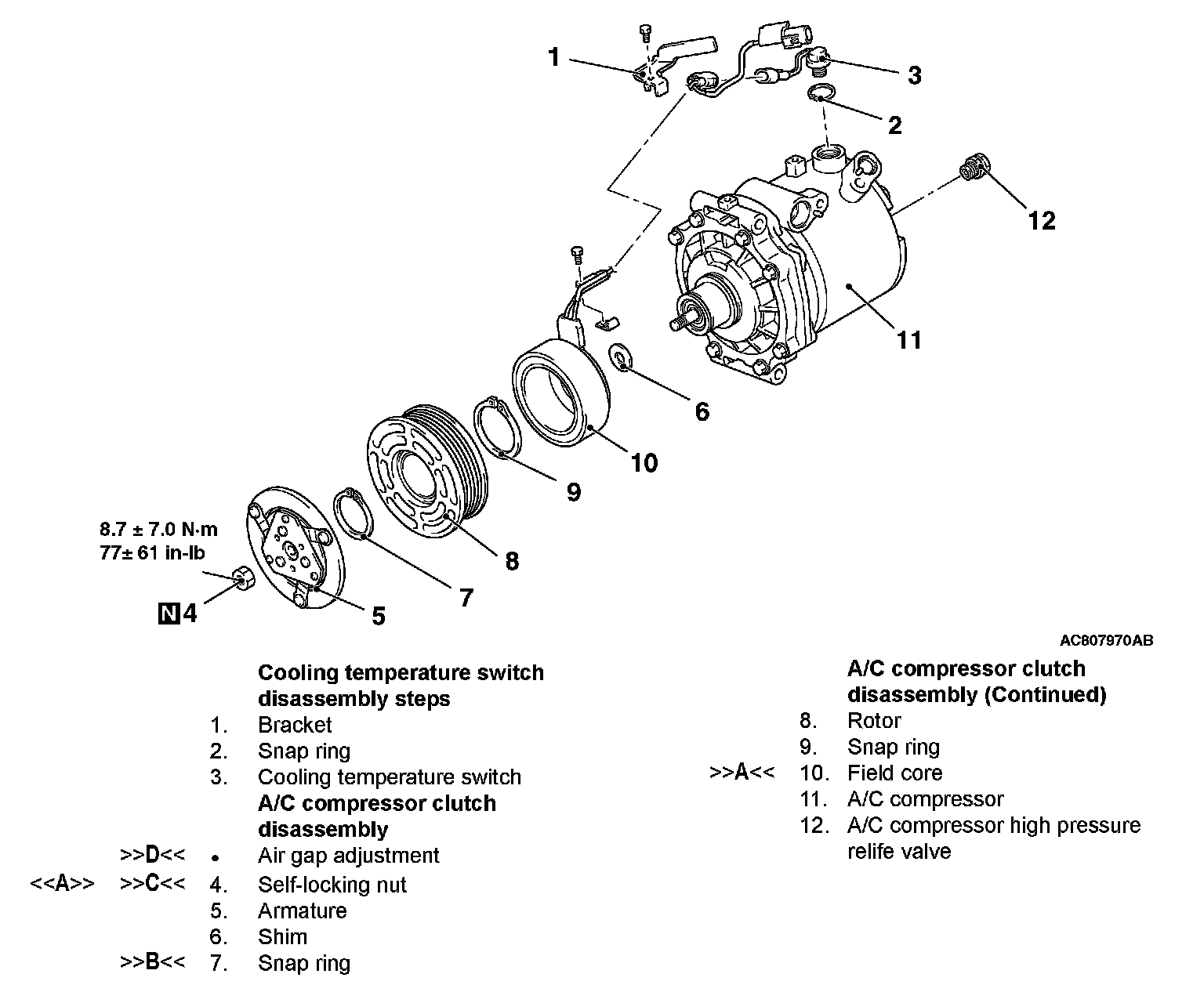

DISASSEMBLY AND ASSEMBLYDisassembly Steps 1-12:
DISASSEMBLY SERVICE POINT

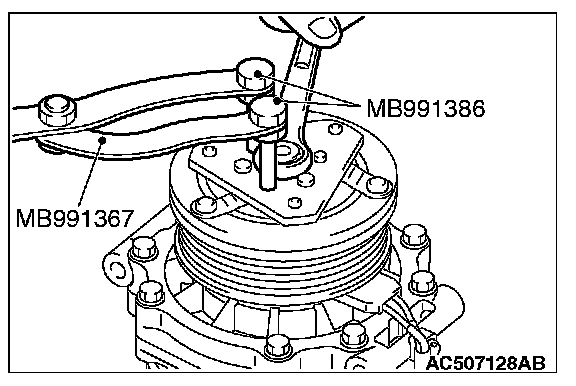

]]A[[ SELF-LOCKING NUT REMOVAL
ASSEMBLY SERVICE POINTS
]]A[[ FIELD CORE ATTACHMENT

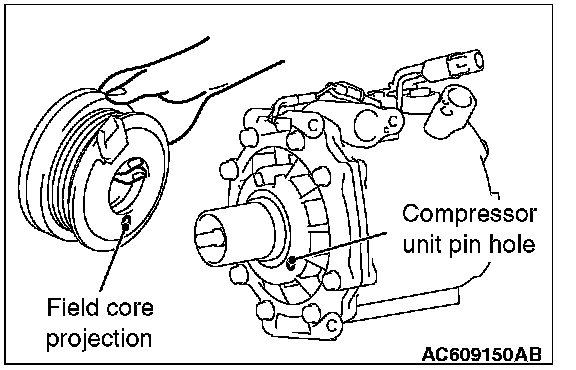

Line up the pin hole on the compressor unit with the field core projection and attach.
]]B[[ SNAP RING INSTALLATION

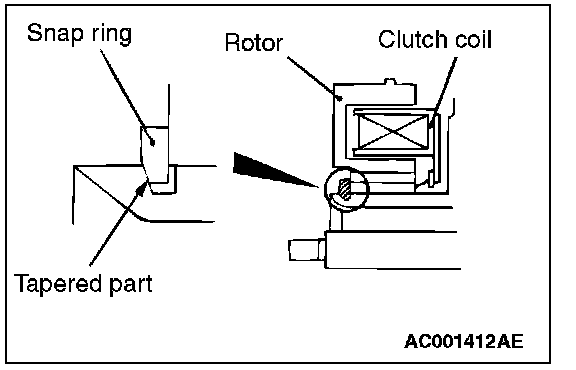

Using snap ring pliers, fit the snap ring so that the snap ring s tapered part is on the outside.
]]C[[ SELF-LOCKING NUT INSTALLATION
Using a special tool, as when removing the nut, secure the armature and tighten the self-locking nut.
]]D[[ AIR GAP ADJUSTMENT

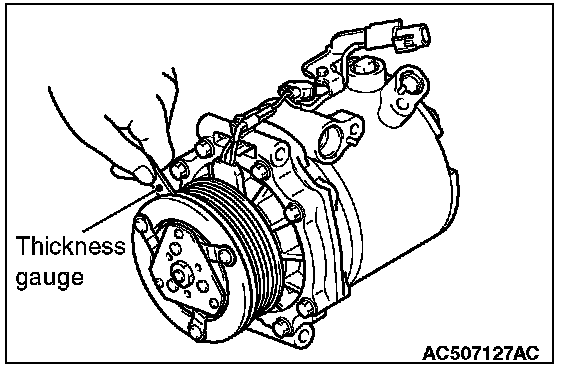

Check whether or not the air gap of the clutch is within the standard value.
Standard value: 0.3 -0.5 mm (0.012 -0.020 inch)
NOTE: If there is a deviation of the air gap from the standard value, make the necessary adjustment by adjusting the number of shims.
