Brake Drum Inside Diameter Check

INSPECTION

BRAKE DRUM INSIDE DIAMETER CHECK

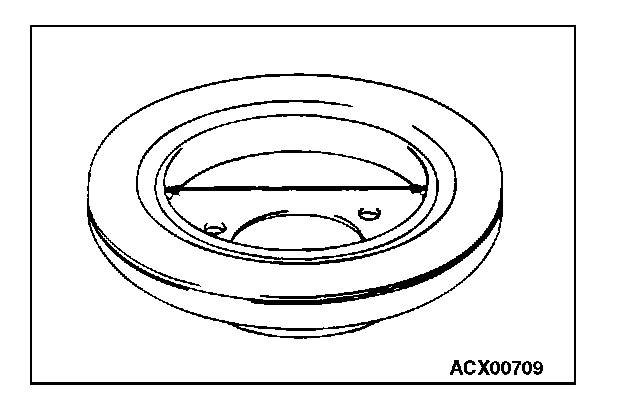

1. Measure the inside diameter of the brake drum at two positions or more.
Standard value:
190.0 mm (7.48 inches) [2.0L Engine]
168.0 mm (6.61 inches) [2.4L Engine]
Limit:
191.0 mm (7.52 inches) [2.0L Engine]
169.0 mm (6.65 inches) [2.4L Engine]
2. If the inside diameter is more than limit value or if there is excessive wear, replace the brake disk.
