Parking Brake System: Description and Operation

PARKING BRAKES

GENERAL INFORMATION
A parking brake lever is used to operate the mechanical rear-wheel acting type parking brake.

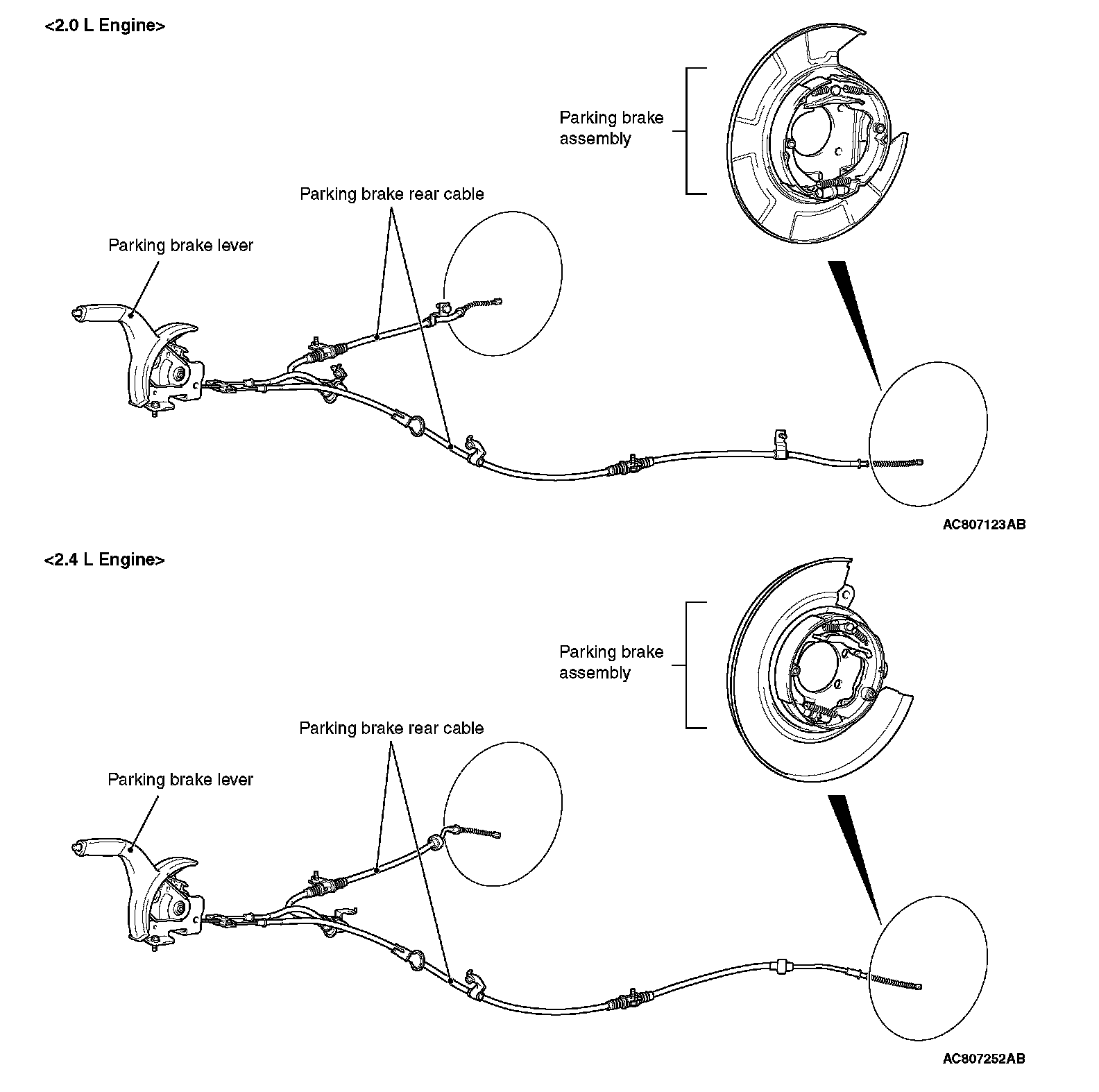

CONSTRUCTION DIAGRAM
