REAR DISC BRAKE ASSEMBLY
REMOVAL AND INSTALLATION [2.0L Engine]

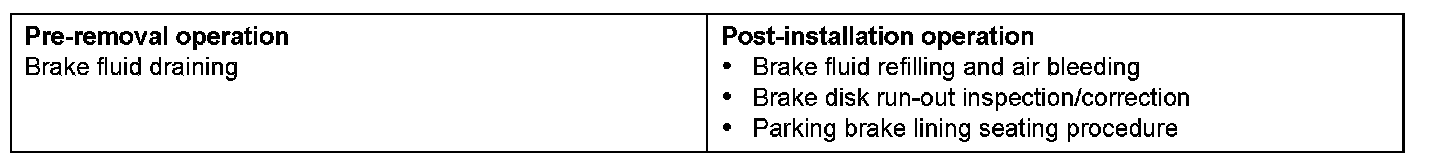

Pre-removal & Post Installation Operation:

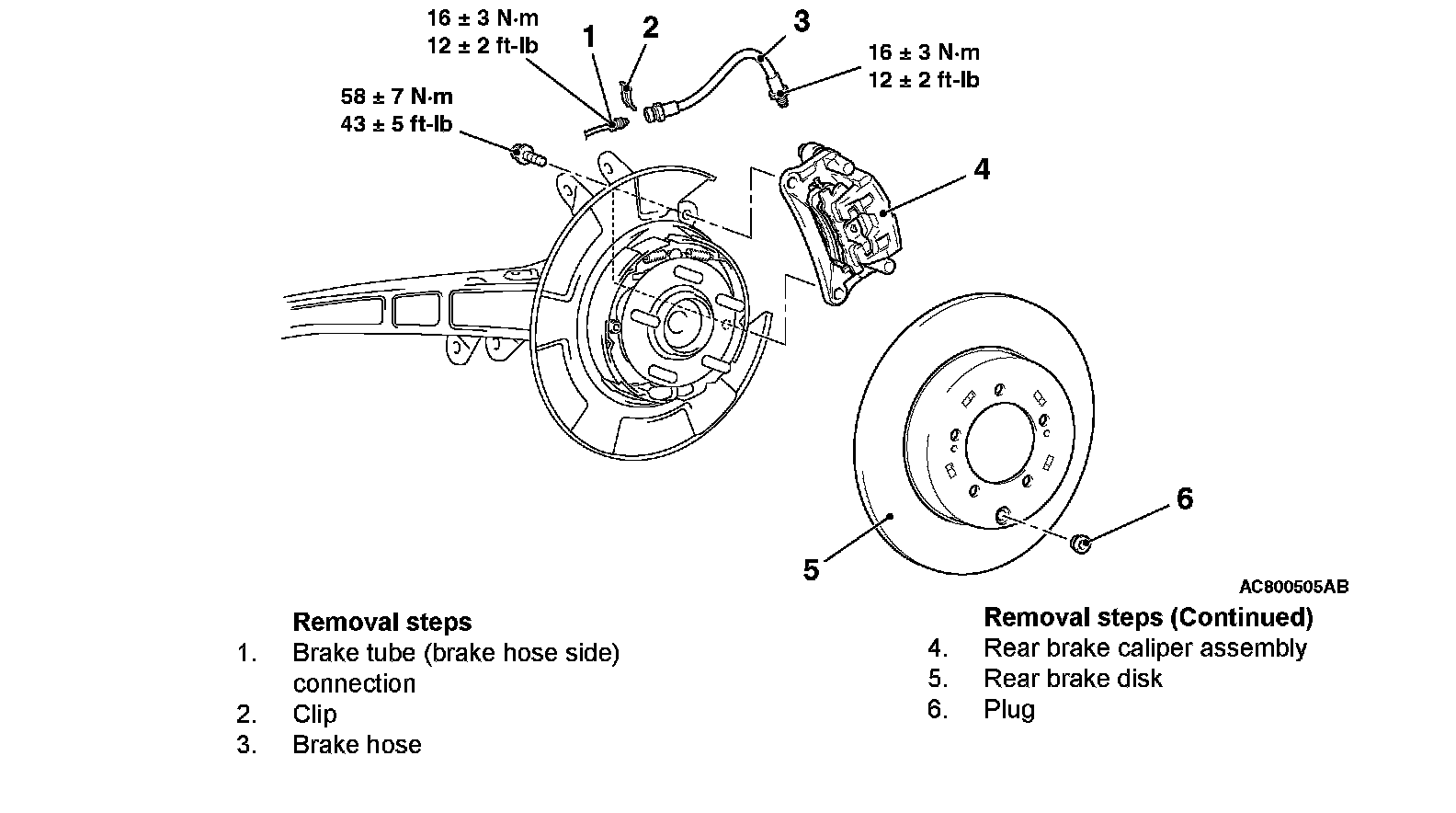

Removal Steps 1-6:
