Disassembly and Assembly

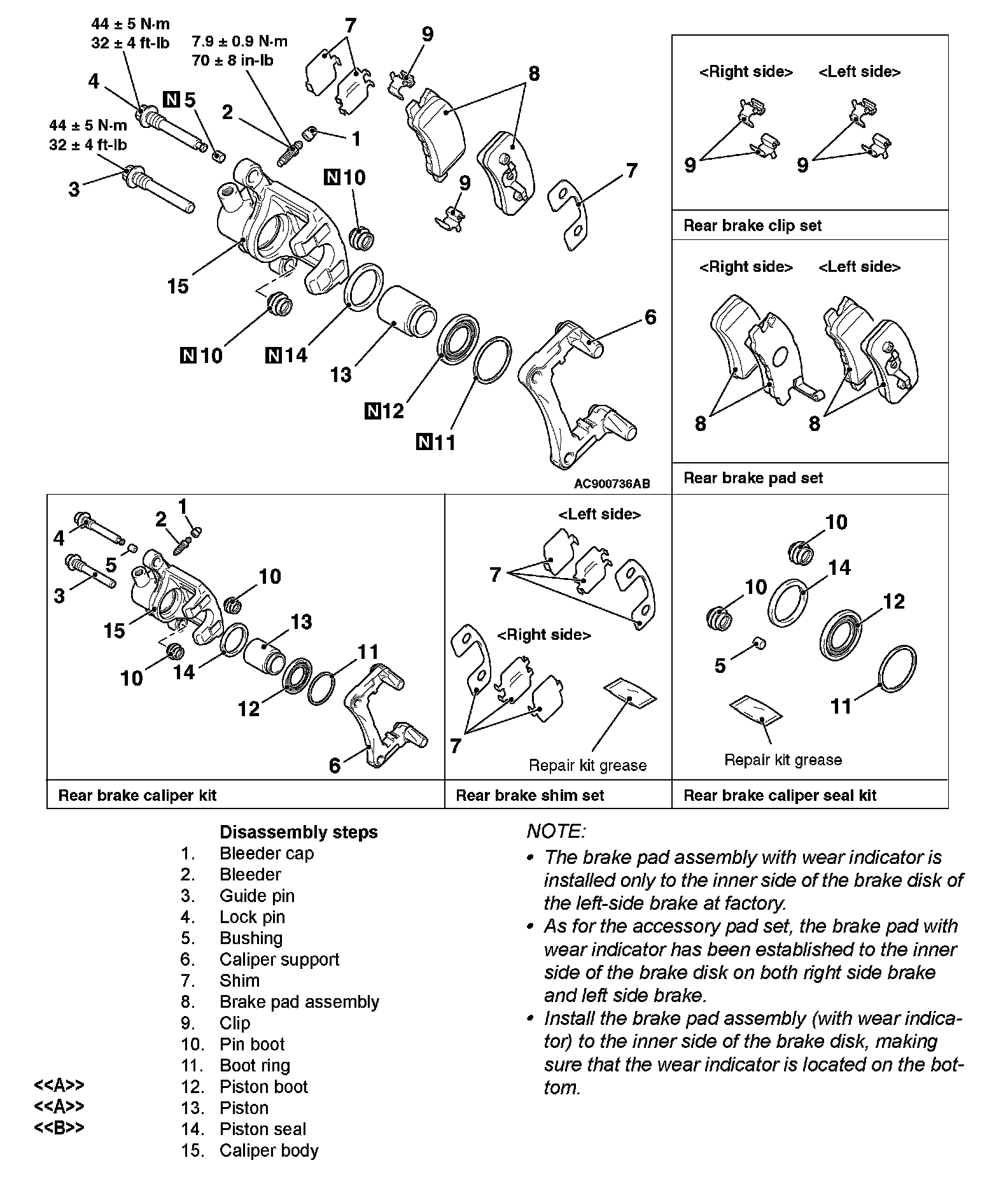

REAR DISC BRAKE ASSEMBLY

DISASSEMBLY AND ASSEMBLY [2.0L Engine]

Disassembly Steps 1-15:
