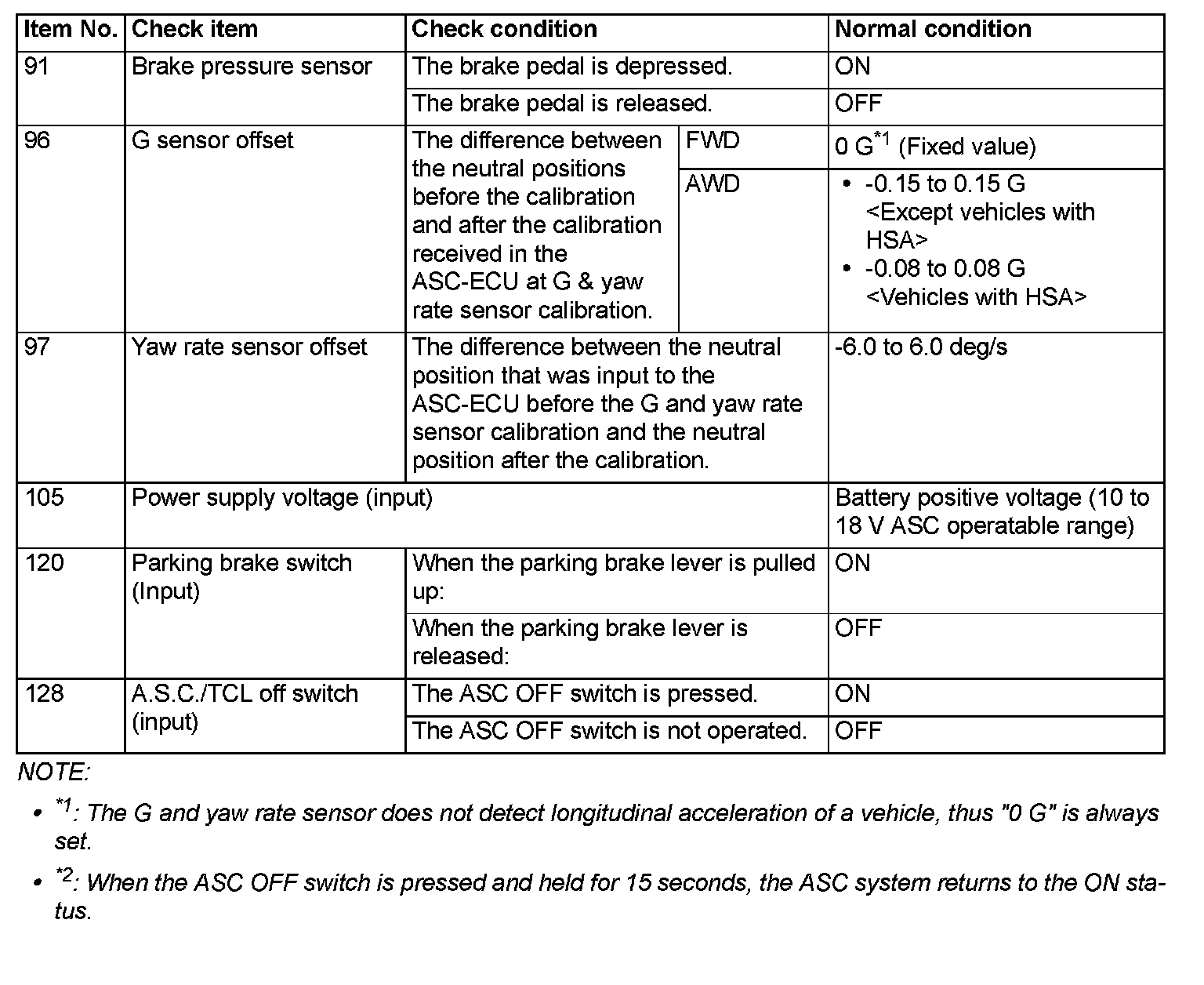

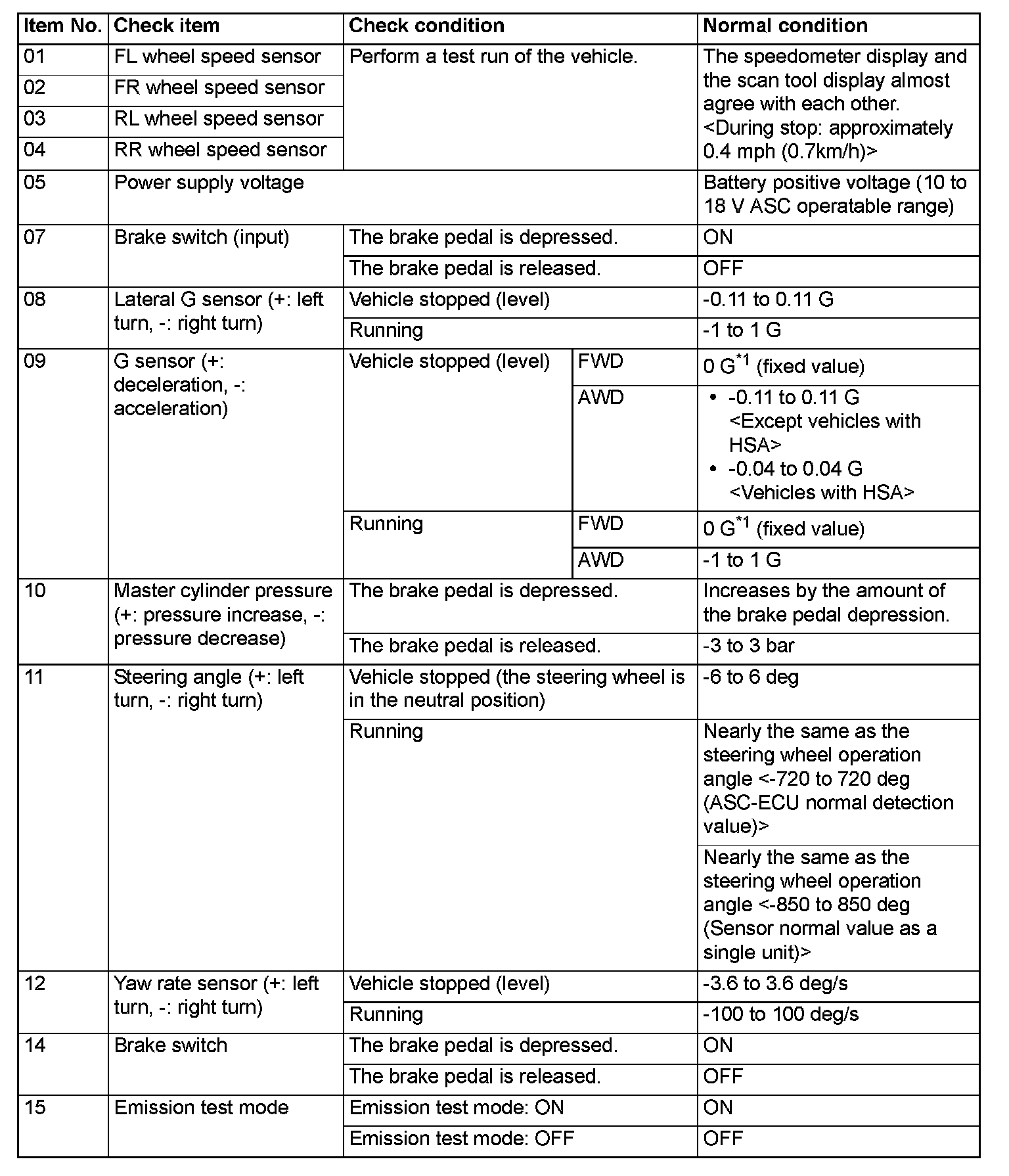

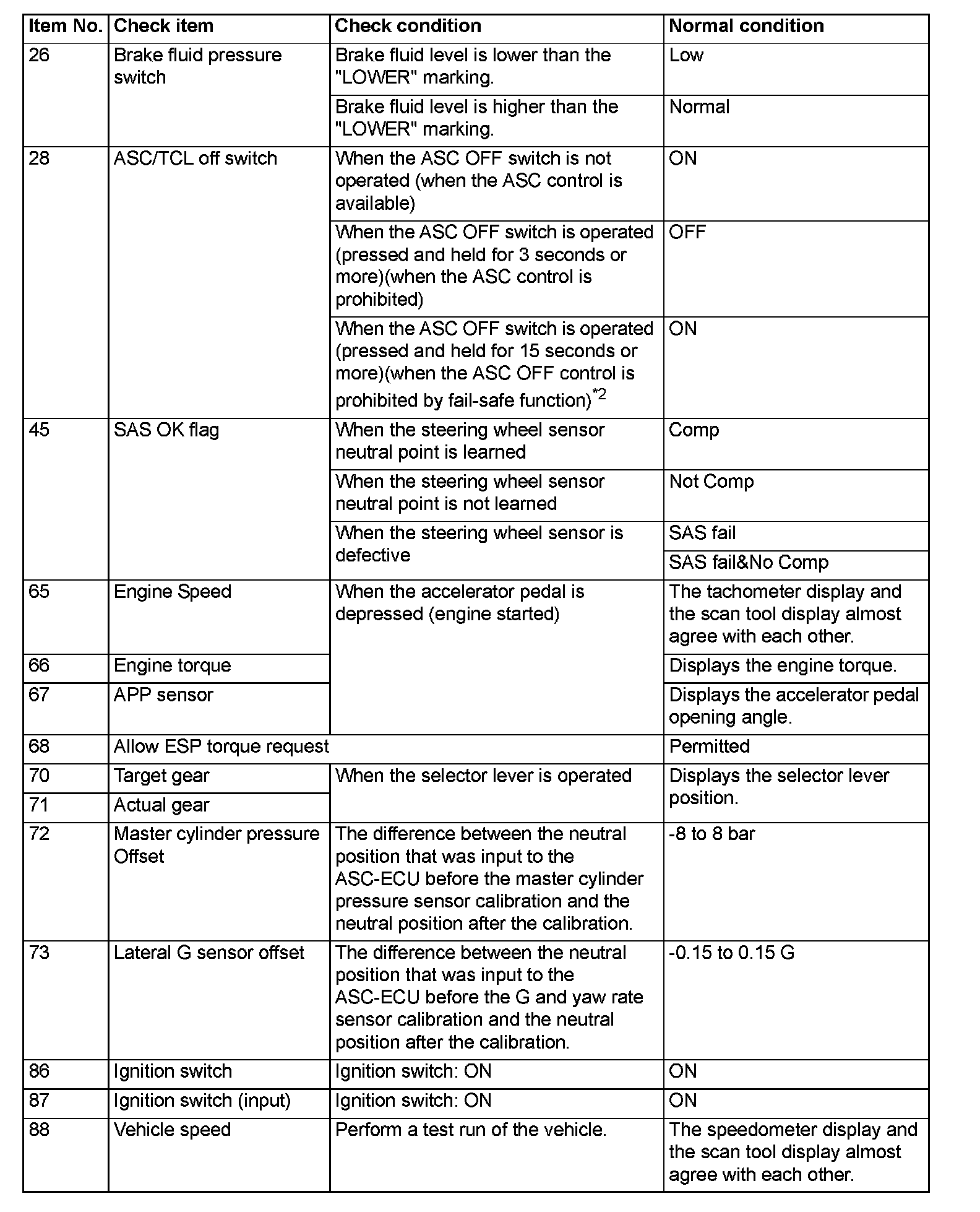

DATA LIST REFERENCE TABLE
The following items can be read by the scan tool from the ASC-ECU input data.
